Features of ultra-small detection switch_Micro switch supplier introduction

Dongguan Ou Gao Electronics Co., Ltd. is a professional company dedicated to high-quality electronic electrical switches and sockets.The company follows up on the international advanced environmental protection concepts in a timely manner. Most of the raw materials and technologies come from Taiwan and South Korea. All materials and products comply with the EU ROHS environmental protection standards, and provide customers with a large number of monthly Qualified high quality switches and sockets. We have many years of professional experience related to the electronics industry.The company has grown to the present, has accumulated many years of rich marketing experience and has many mature high-quality products. Switch products include: small micro switches, micro detection switches, waterproof micro switches, large micro switches, etc. Micro switches are used for automatic control and safety protection in equipment that requires frequent circuit switching, and are widely used in electronic equipment, instrumentation, mining, power systems, household appliances, electrical equipment, as well as aerospace, aviation, ships, missiles, In military fields such as tanks, switches are small but play an irreplaceable role.

Micro switch product introduction
1, ultra-small detection switch
Product specification: L9.7*W7*H13.2
Contact Resistance: 500 mΩ MAX.
Insulation Resistance: 100 MΩ MIN.
Mechanical life: 1 million times
Electrical life: 10000 cycles
Use temperature: -25℃~85℃
Features: Use to prevent the flux from not being able to be applied Climbing integrally formed terminal construction.
purpose: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

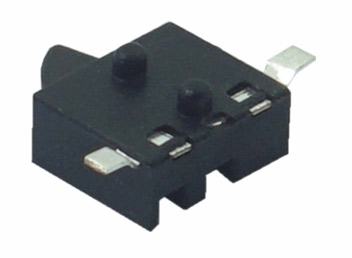

Subminiature detection switch

2, medical device microswitch span>

Use temperature: -25℃~85℃
Mechanical life: 100,000 times

Contact Resistance: 100 mΩ MAX.

Specification: L8.4*W2.7*H9.4
Features: Configure various shapes of drive handles and various operating forces for product structure design.
purpose: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

3, automatic door limit micro switch
Contact resistance: 500 mΩ MAX.
Insulation Resistance: 100 MΩ MIN.
Use temperature: -25℃~85℃
Specifications: L19.8*W6.4*H10.7
Features: Adopt an integrally formed terminal structure that prevents flux from climbing up.
Usage: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.
Auto door limit switch

4, micro switch for fire equipment span>

Insulation Resistance: 100 MΩ MIN.
Use temperature: -25℃~85℃
Mechanical life: 1 million times

Specification: L19.8*W6.4*H10.7
Features: High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
purpose: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

5, water heater microswitch strong>

Electrical life: 10000 times
Operating temperature: -25℃~85℃
Mechanical life: 1 million times

Specification: L19.8*W6.4* H10.7
Features: Configure various shapes of drive handles and various operating forces for product structure design.
purpose: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Precautions for the use of ultra-small microswitches
1, When fixing the switch body, please use M2 The small screw is fixed on the smooth surface with a torque of 0.098N·m or less. Also, to prevent loosening of the screws, it is recommended to use washers at the same time.
2. Please note that in the free state, the action body should not directly exert force on the button or the exciter, and the button should exert force in the vertical direction when using it.
3. The action setting after action is based on 70[%] or more of the O.T. value. In the case of a switch, do not set the operating body at the operating limit position to prevent the life from being shortened by the opening and closing and over-travel caused by the shock.
4,About the change of the operating characteristics, even if the operating characteristic specification value is changed by ±20[%], it should not cause a malfunction. In the case of hand soldering, please use the electric temperature 320°C max.) with temperature adjustment to complete the operation within 3 seconds, and be careful not to apply force to the terminal part during the operation.
5,Do not have a bad influence on the contacts and be corrosive Use and store in places where gas, silicon, etc., or where there is a lot of dust. It is recommended to use a low-power circuit type (Au-clad contact) when using it at a small current and voltage.

Features of ultra-small microswitches
1. Ultra-small, lightweight and high-precision.
2. M2mm type with general purpose screws can be used.
3. The structure with formed terminals and reference distance at the same time makes it difficult for solder and flux to penetrate into the inside of the switch.
4. A low-power circuit type (Au clad contact) suitable for small voltage and current loads is also available.
5. Self-standing type terminal, easy to install on the printed board. The switch body is independent with respect to the printed board of 1.2~1.6mm.
6. There are also a series of right-angled and left-angled printed board terminals.
7. Compliant with RoHS directive.
