PS Key switch

Excellent quality, good service, very competitive price.

AUGO

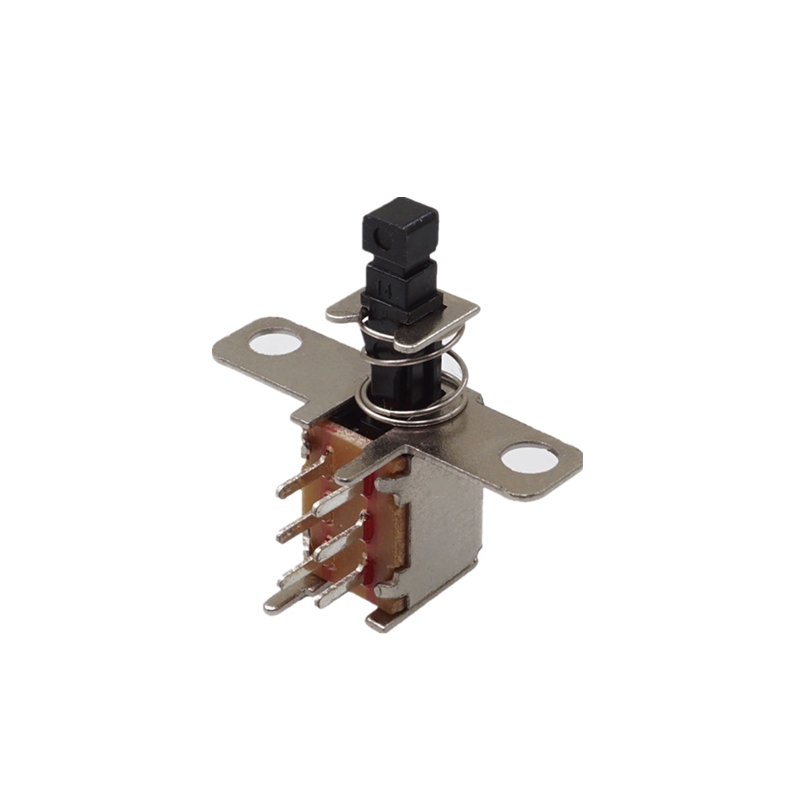

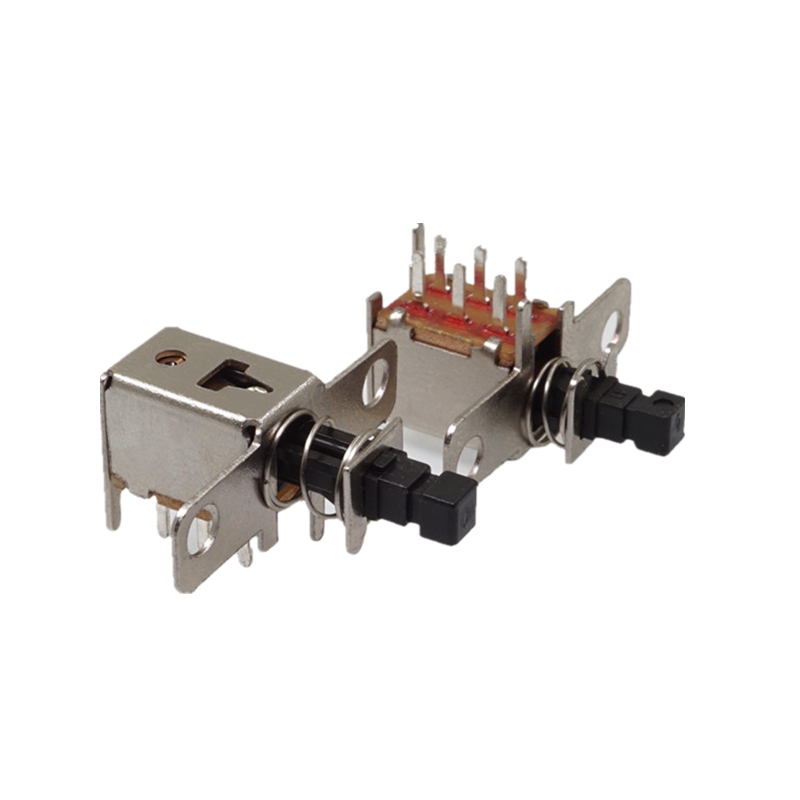

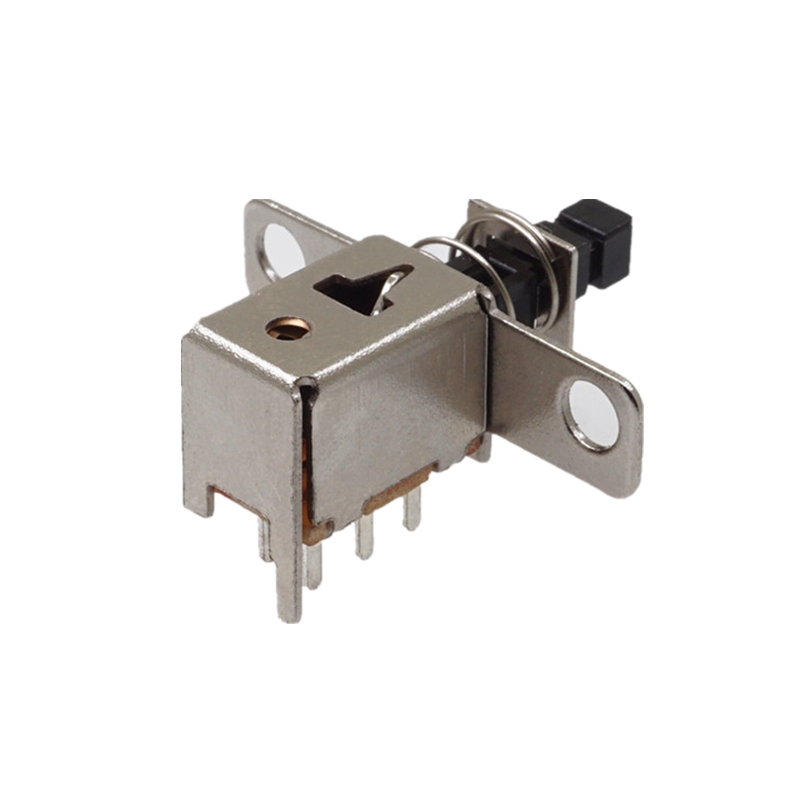

Smoke machine self-locking switch

  • Specification:25.5*7.7*10
  • Model:PS22F06
  • Package:500PCS/bag
  • Life:10,000cycles
Function selection:
Self locking / non locking, service temperature: - 25 ℃ ~ 80 ℃, ambient humidity: ≤ 85% RH

Specification

Technical parameters:
Rated load: DC 50V 0.5A
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min dc250v
Operating force: 180gf ± 50gf
Service life: 20000 cycles

Function selection:
Self locking / non locking
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH
Product features: with a variety of overall dimension design
The sound of the switch is crisp, with good hand feeling and rhythm, and high sensitivity
The lock cylinder mechanism of the product has different structural designs without lock and with lock
Different terminal pin positions and different key heights can be designed to meet customer requirements
Scope of application: smart meter, electric toothbrush, smart sweeper, conversion equipment, instruments, children's toys, adult products, etc

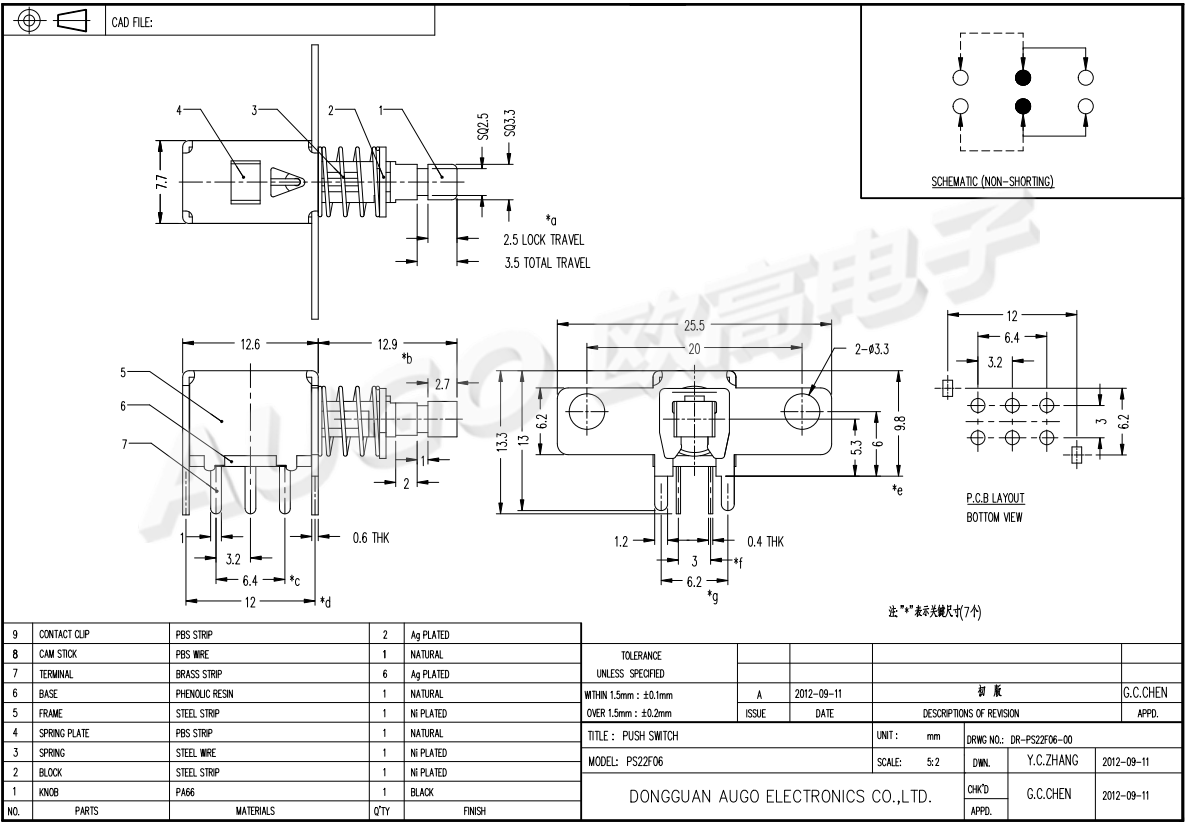

Dimensional drawings

烟机自锁开关尺寸图
