Micro detection switch

Excellent quality, good service, very competitive price.

AUGO

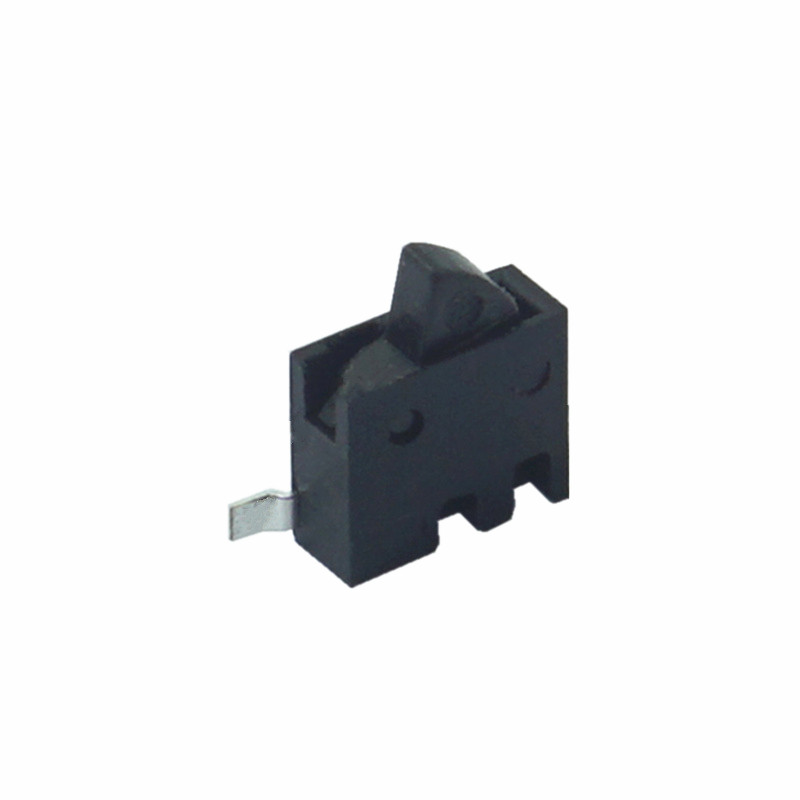

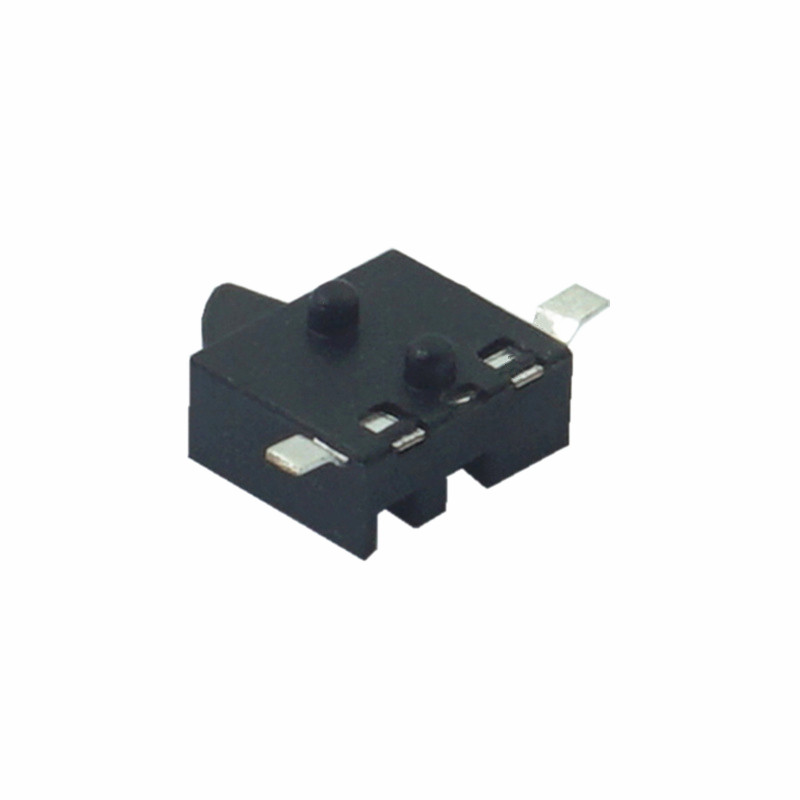

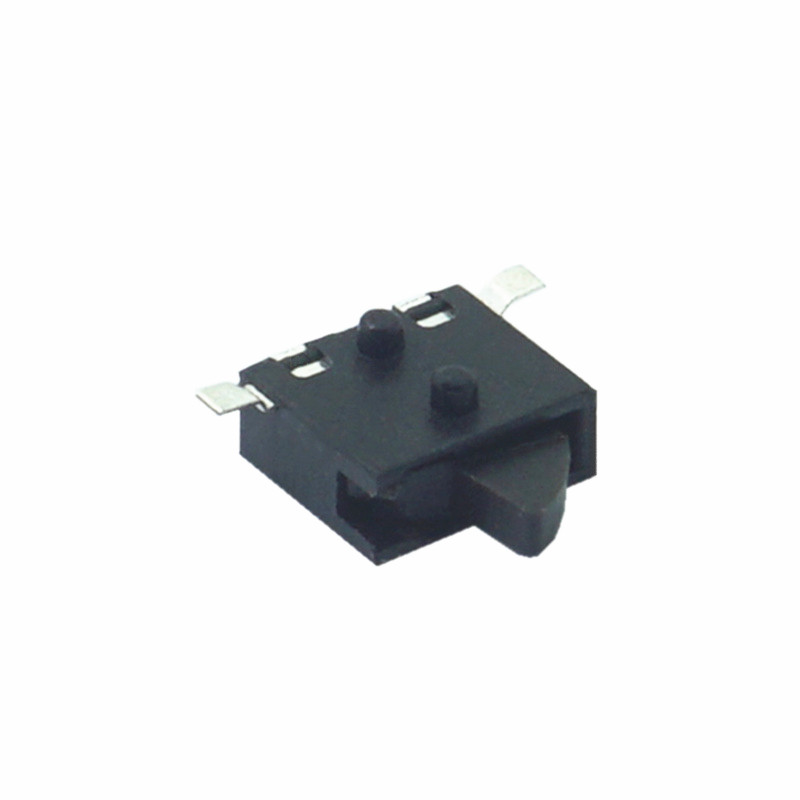

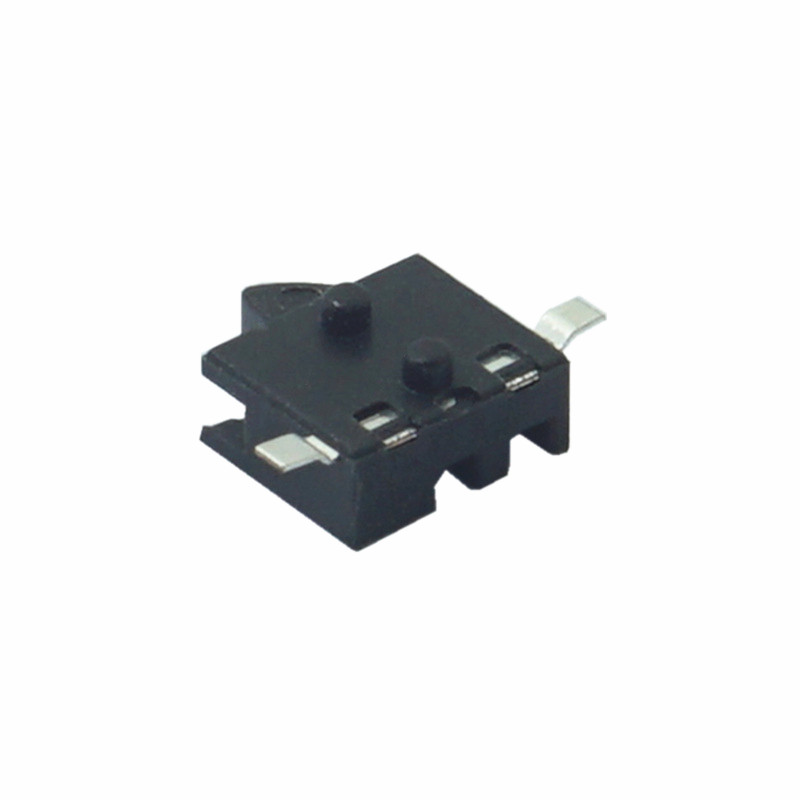

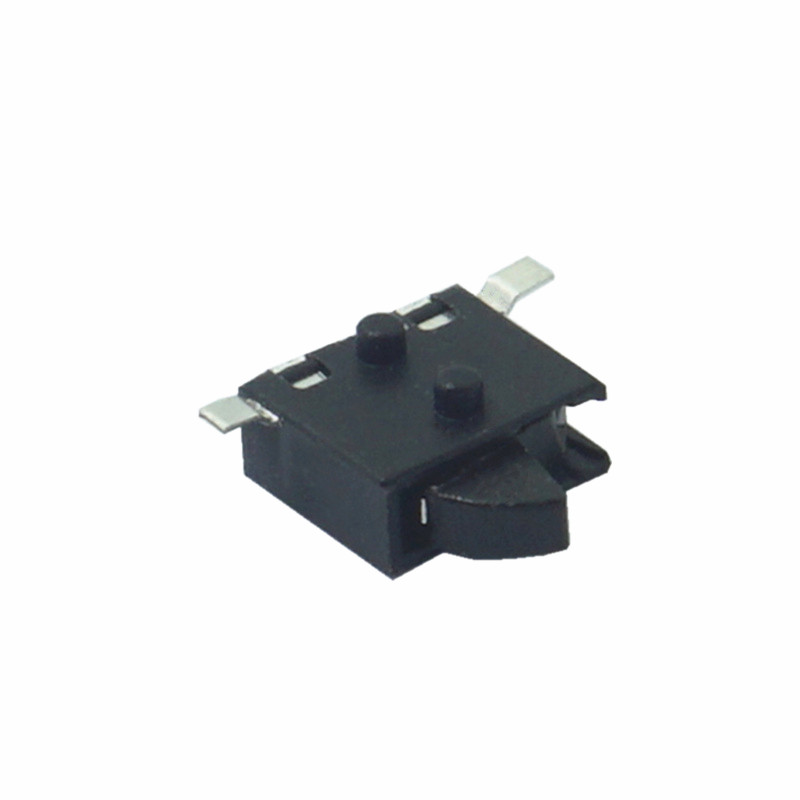

Ultra-small detection switch, thickness 3.2mm, two-legged patch, with positioning column

  • Specification:L9.7*W7*H3.2
  • Model:KFC-V-405T
  • Package:2000PCS/disk
  • Life:100,000 times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Availability:
Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Contact Resistance: 500 mΩ MAX.
Insulation resistance: 100 MΩ MIN.
Operation  Operation  Force:  See Product Specifications
Mechanical life: 100,000 times
Electrical life: 20000 times
Operating temperature: -25℃~85℃
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

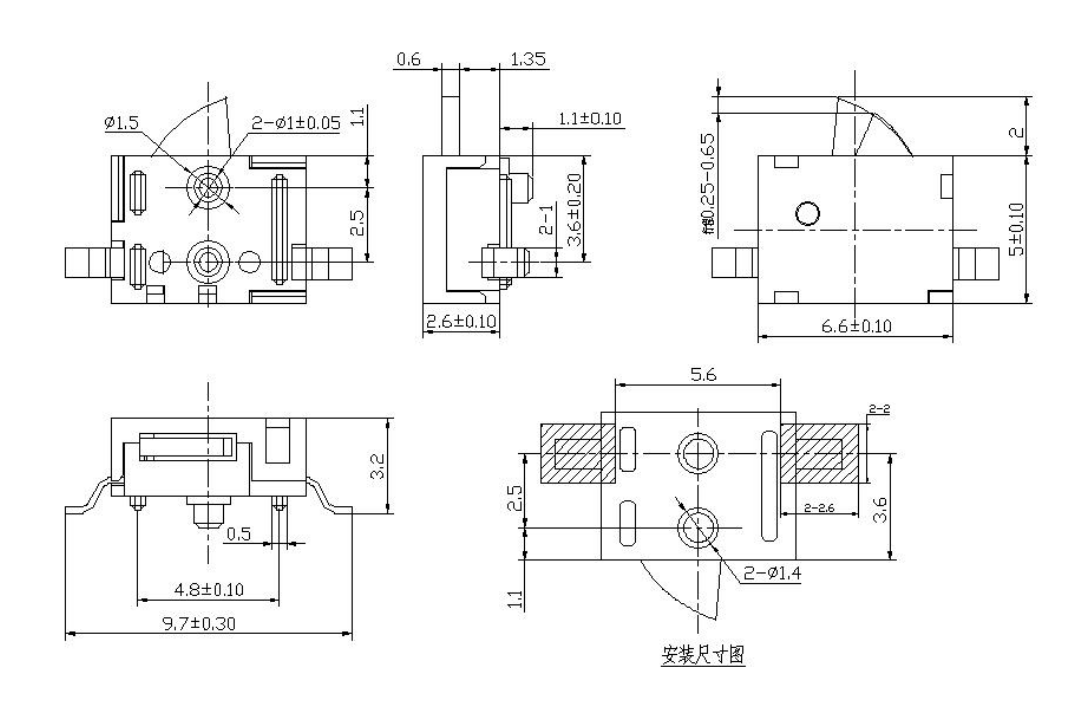

Dimensional drawings

超小型检测开关尺寸图
