Medium micro switch

Excellent quality, good service, very competitive price.

AUGO

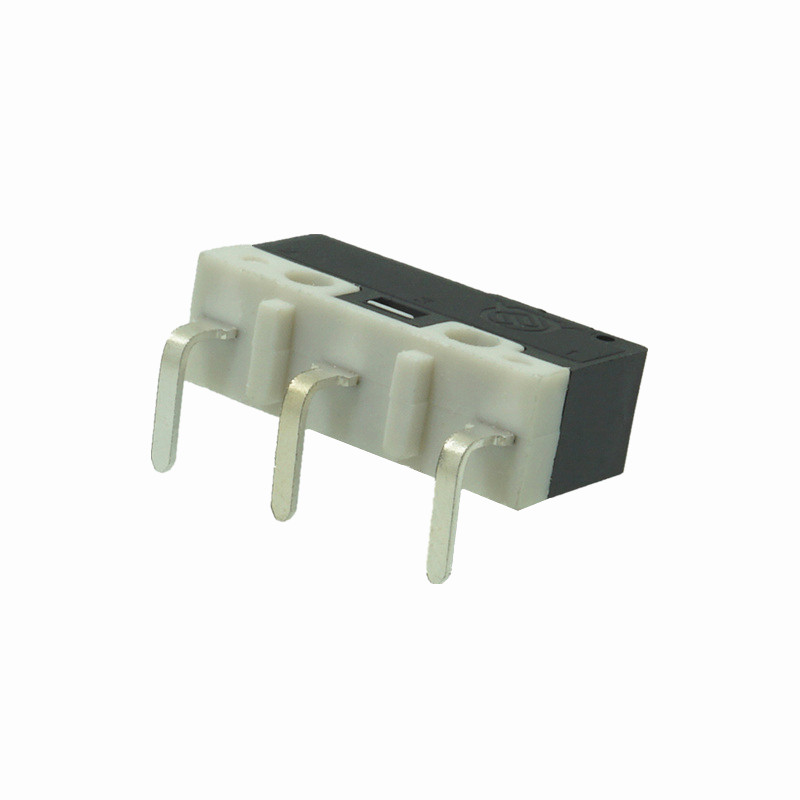

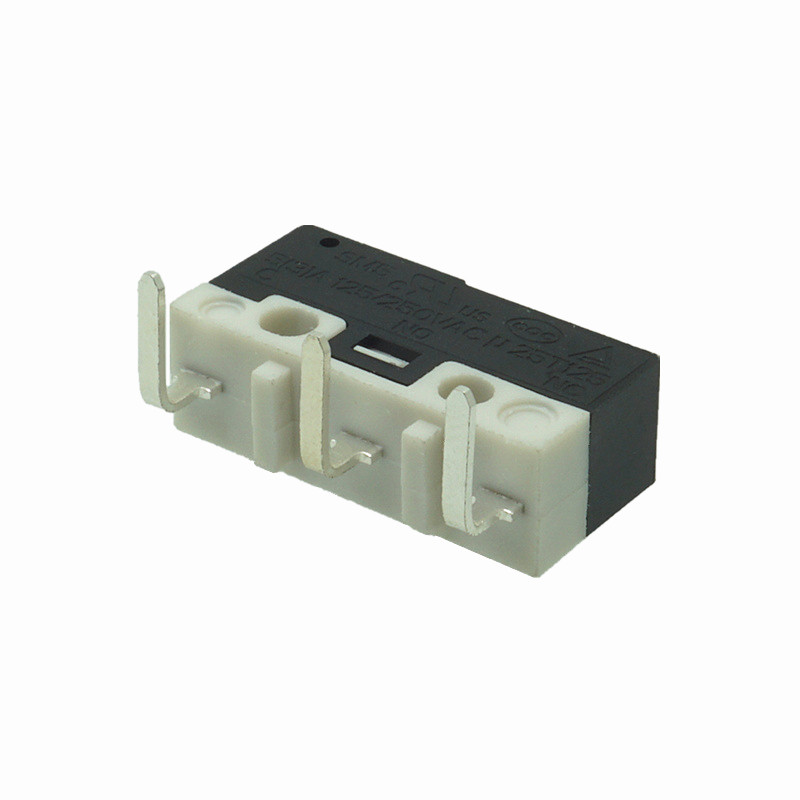

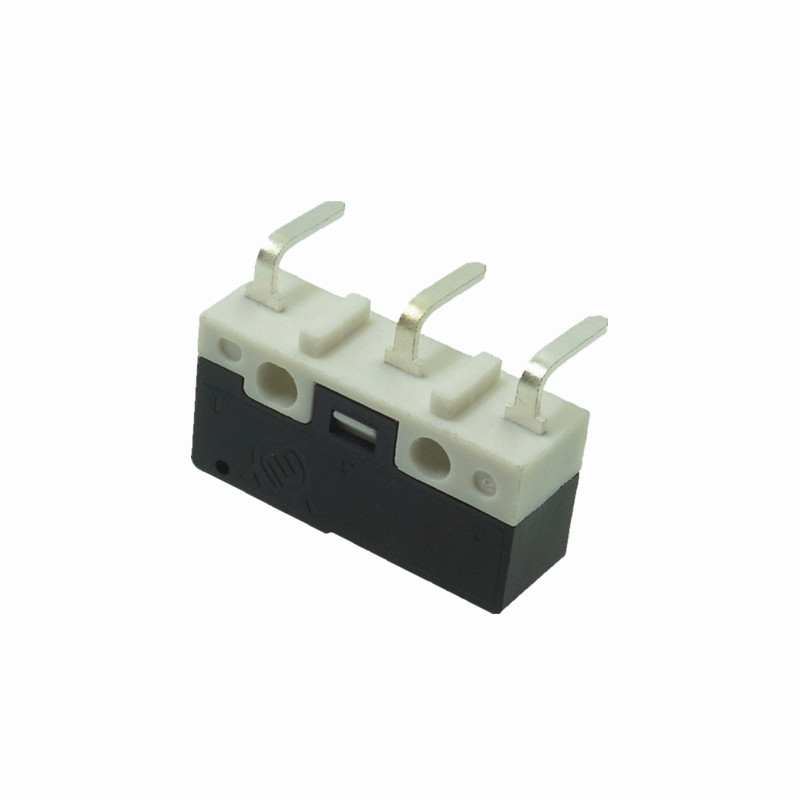

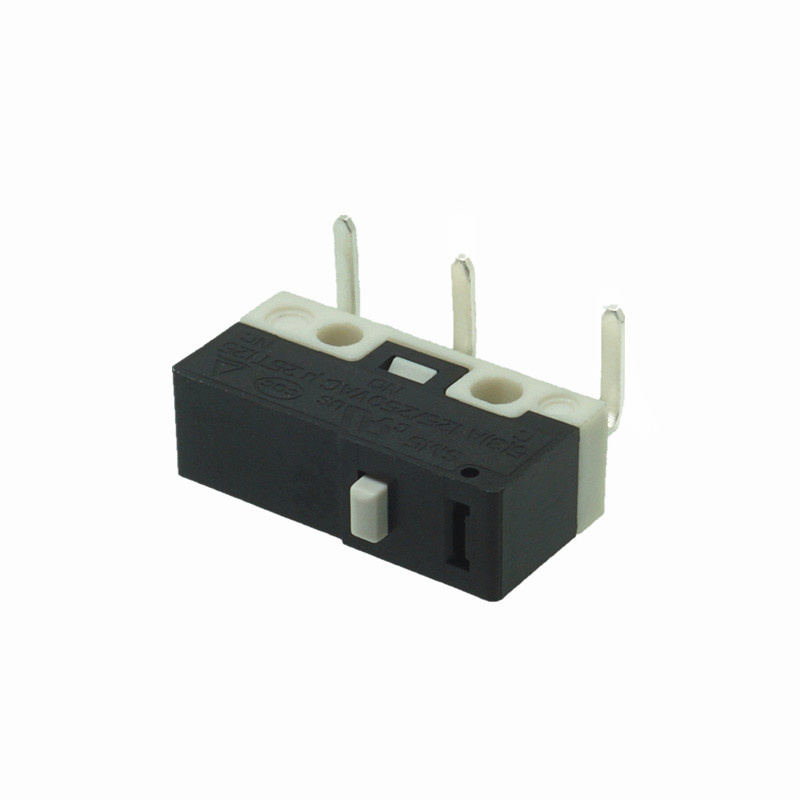

Shankless bent foot micro switch L19.8*W6.4*H10.7

  • Specification:L19.8*W6.4*H10.7
  • Model:SM5-00CL-150-3
  • Package:500PCS/bag
  • Life:1 million times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Availability:
Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

技术参数:
使用温度:-25℃~85℃
机械寿命:100万次
接触电阻: 500 mΩ MAX.
绝缘电阻:100 MΩ MIN.

电气寿命:10000次
产品特点:
1.高精度弹片结构,实现快速切换、长寿命、触感极佳。
2.采用防止助焊剂无法上爬的整体成型端子结构。
3.配置多种形状驱动柄、多种操作力供产品结构设计使用。

适用范围:适用于鼠标、安防、电脑、通讯产品、家用电器、智能交通等领域等

Dimensional drawings

无柄弯脚微动开关尺寸图
