Micro detection switch

Excellent quality, good service, very competitive price.

AUGO

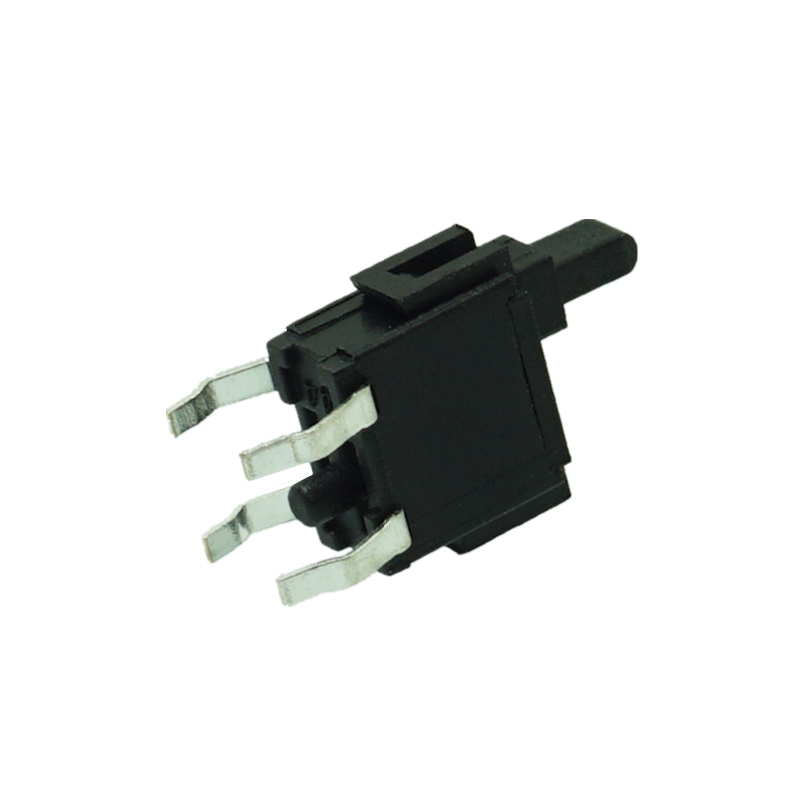

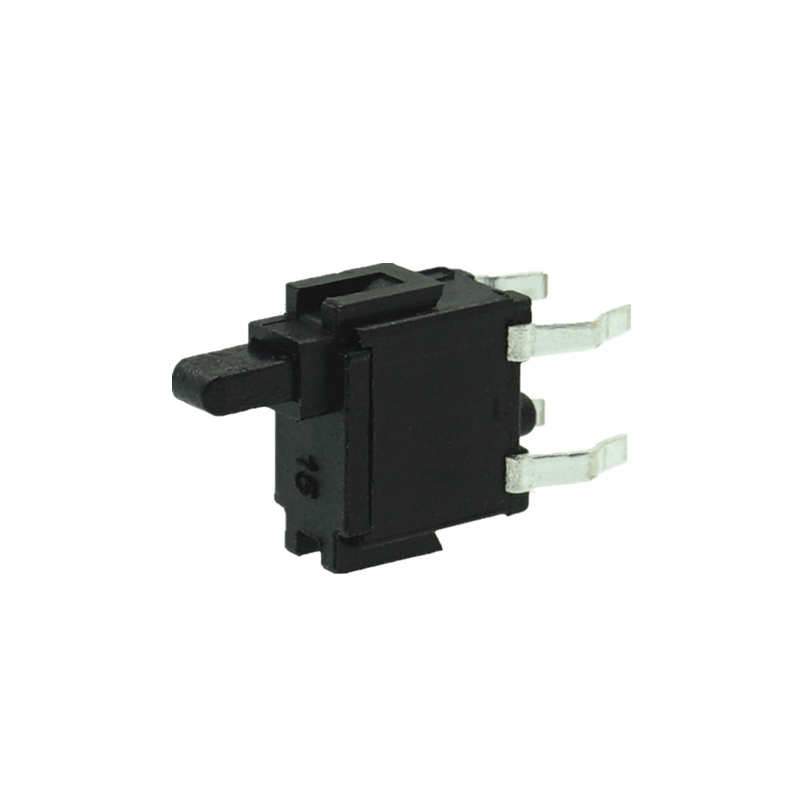

Multifunctional micro-motion detection switch L6.4*W3.0*H8.6

  • Specification:L6.4*W3.0*H8.6
  • Model:KFC-V-107(H8.5)
  • Package:1000PCS/bag
  • Life:1 million times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Availability:
Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Mechanical life: 1 million times
Electrical life: 10000 times
Contact Resistance: 500 mΩ MAX.
Insulation resistance: 100 MΩ MIN.
Operation  Operation  Force:  See Product Specifications
Operating temperature: -25℃~85℃
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

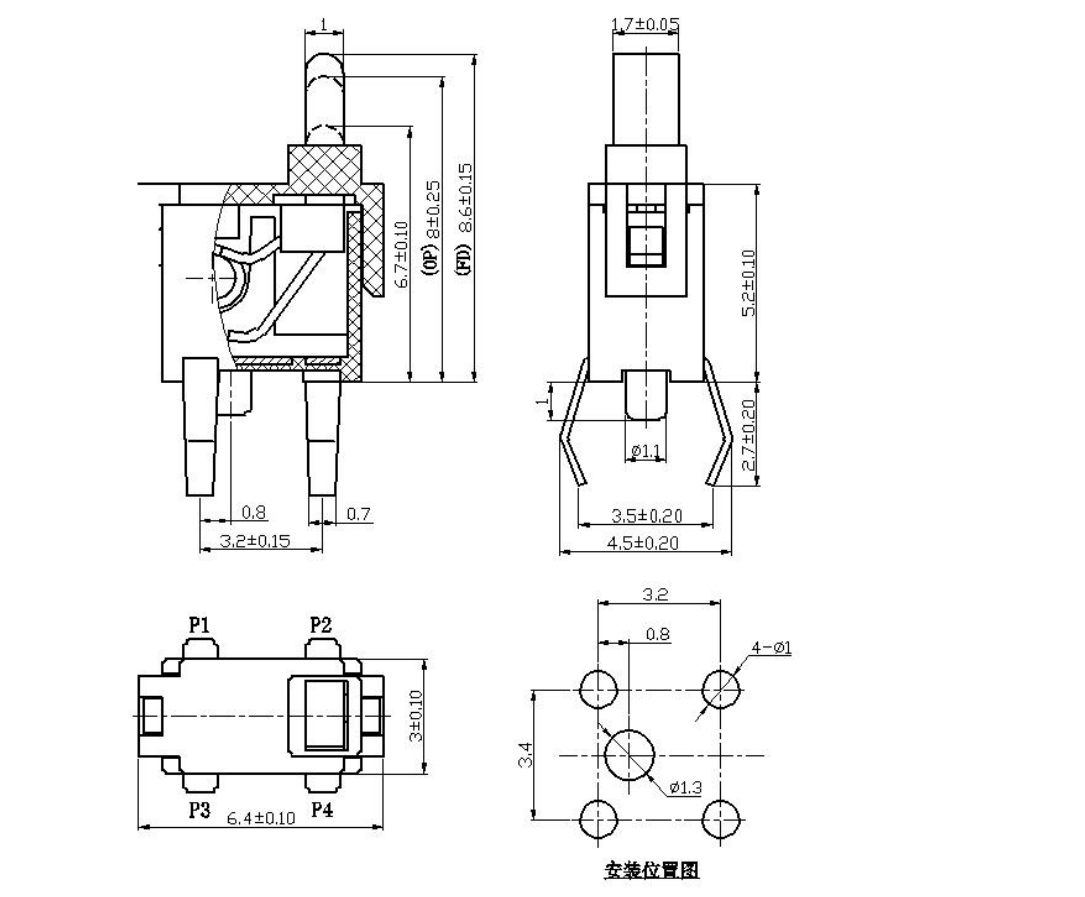

Dimensional drawings

多功能微动检测开关尺寸图
