Waterproof micro switch

Excellent quality, good service, very competitive price.

AUGO

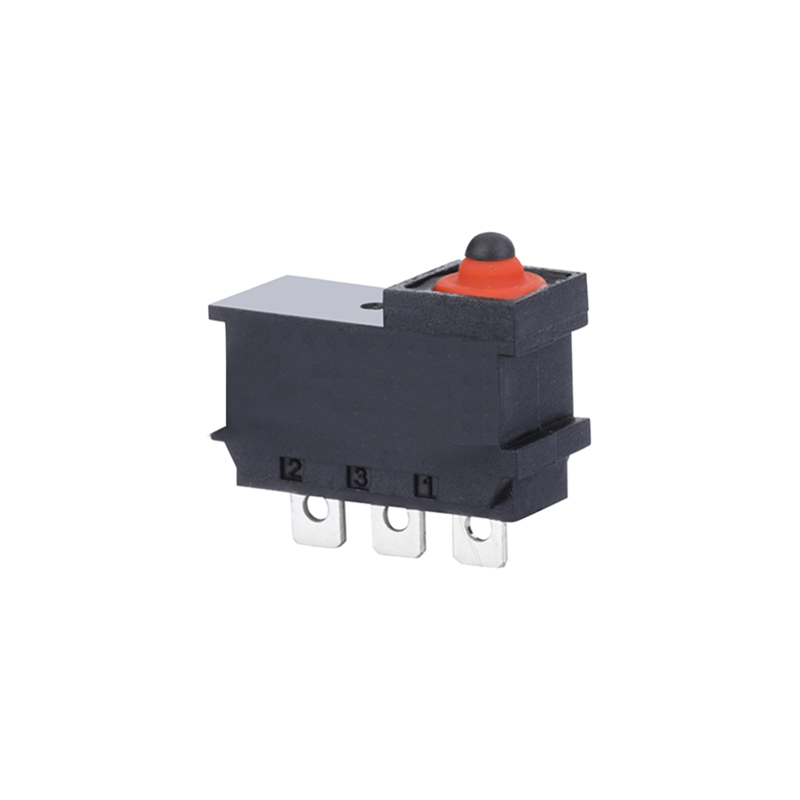

Door lock waterproof micro switch 15.2*6.4*8.15

  • Specification:15.2*6.4*8.15
  • Model:MX3-C
  • Package:1000PCS/bag
  • Life:500,000 times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. With waterproof structure, the waterproof level can reach IP67.
3. Equipped with various shapes of drive handles, various operating forces and various terminal types for product structure design.

Availability:
It is suitable for automobiles, instruments, household appliances, intelligent transportation and other fields.

Specification

Technical parameters:
Mechanical life: 500,000 times
Electrical life: 100,000 times
Contact Resistance: 500 mΩ MAX.
Insulation resistance: 100 MΩ MIN.
Waterproof rating: IP67

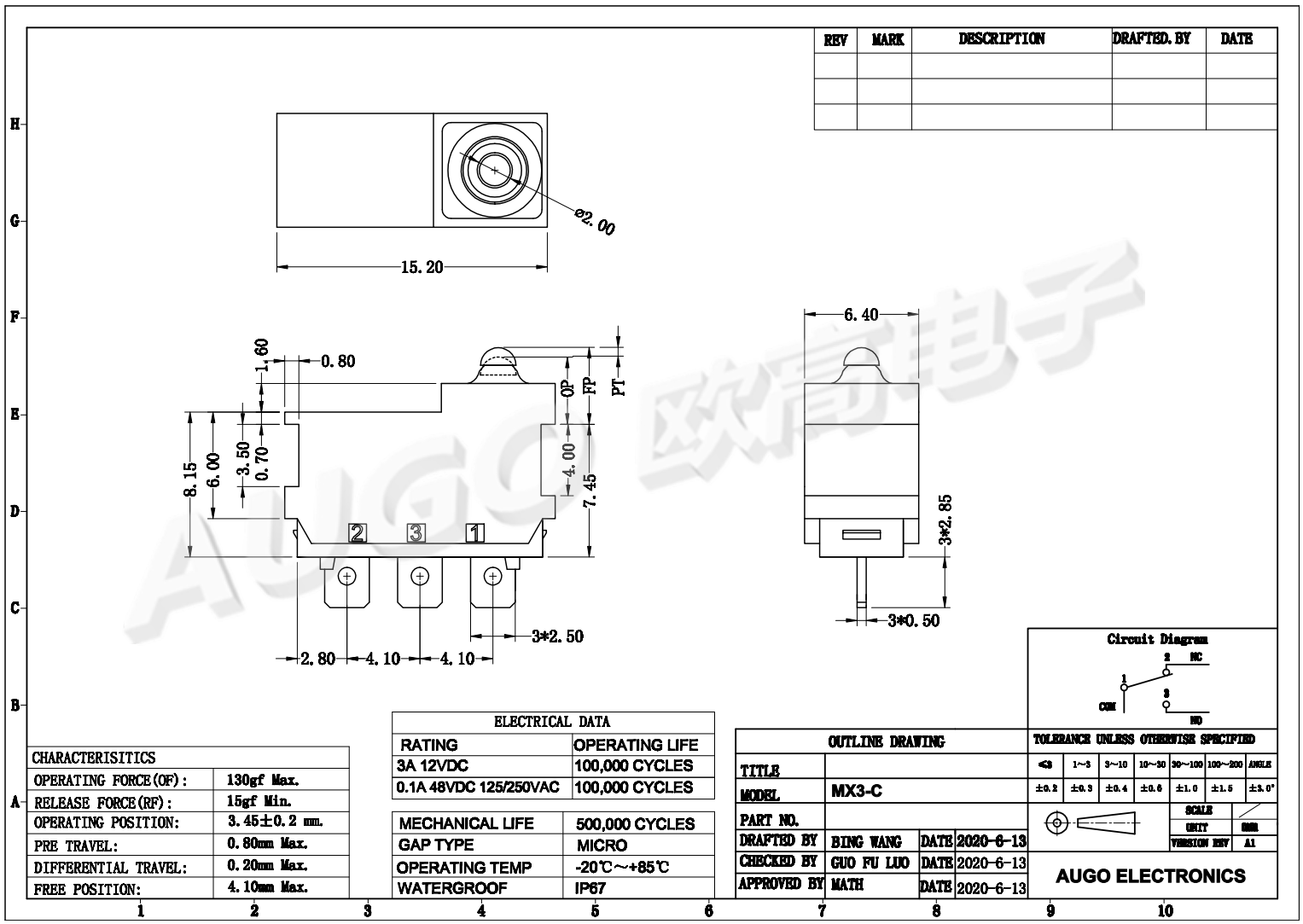

Dimensional drawings

门锁防水微动开关尺寸图
