Micro detection switch

Excellent quality, good service, very competitive price.

AUGO

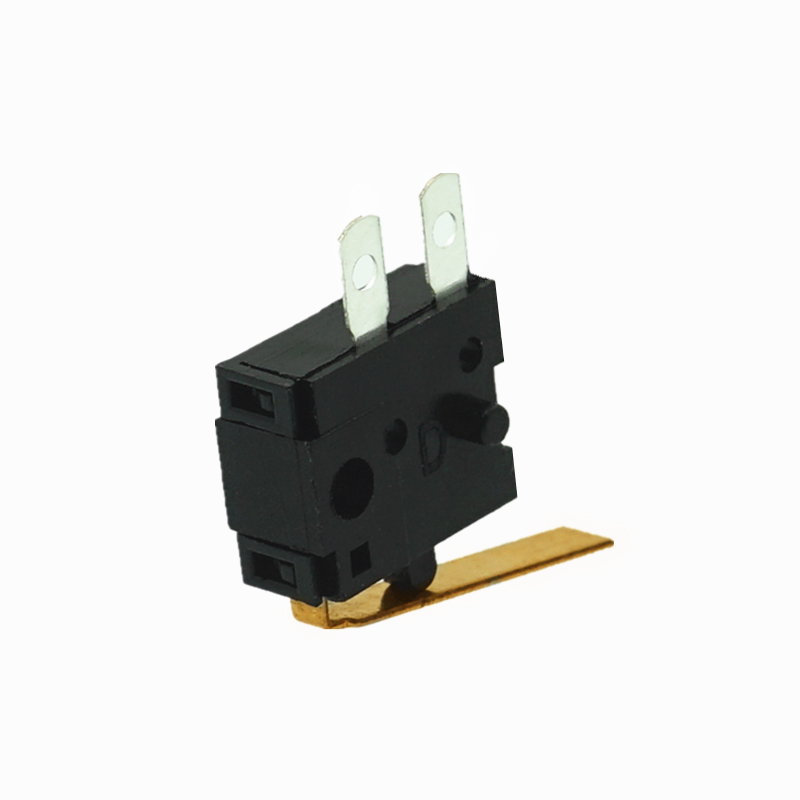

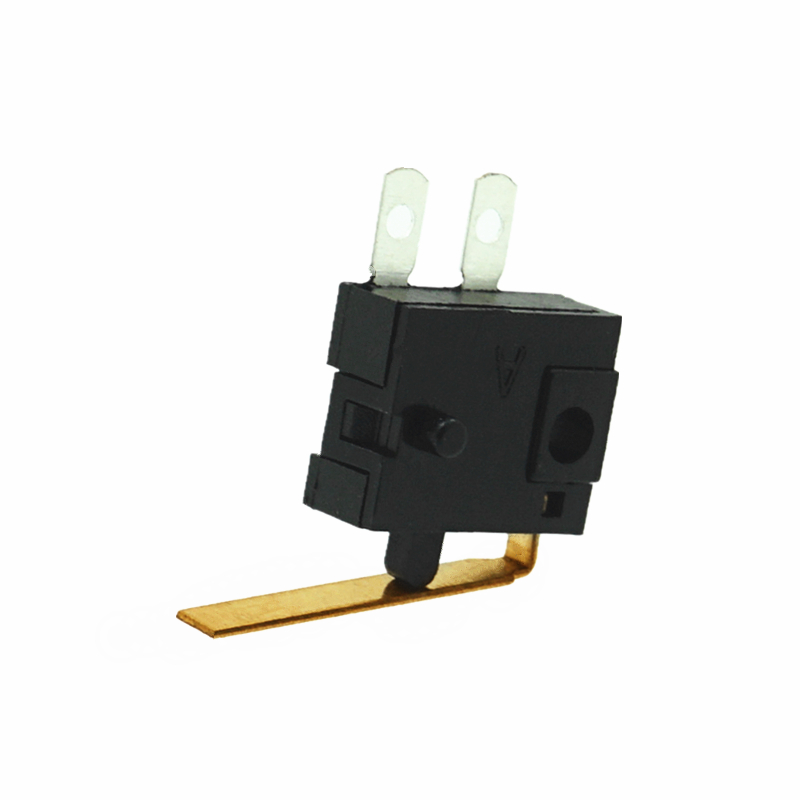

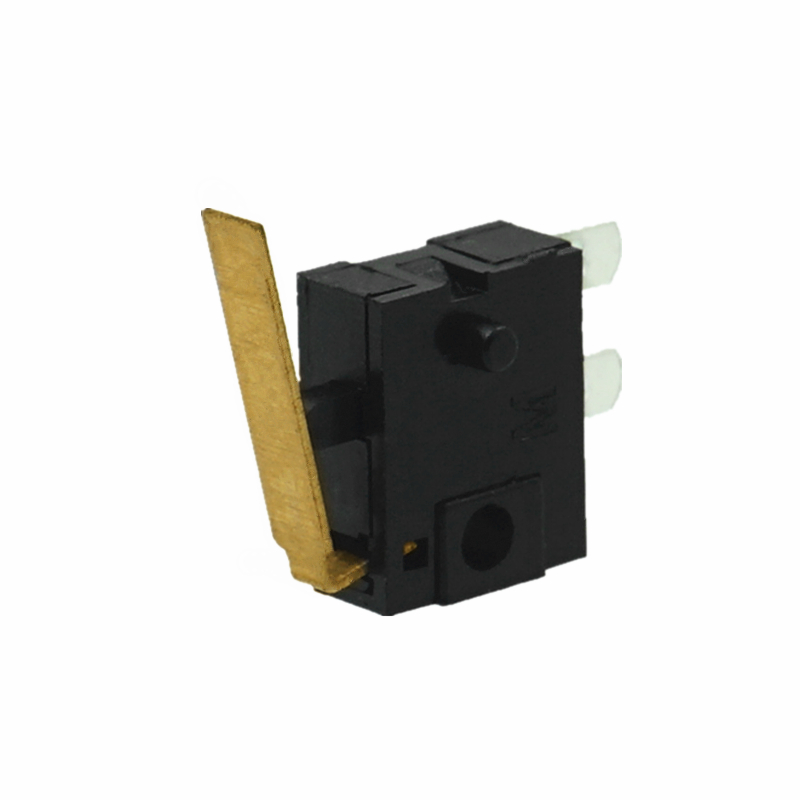

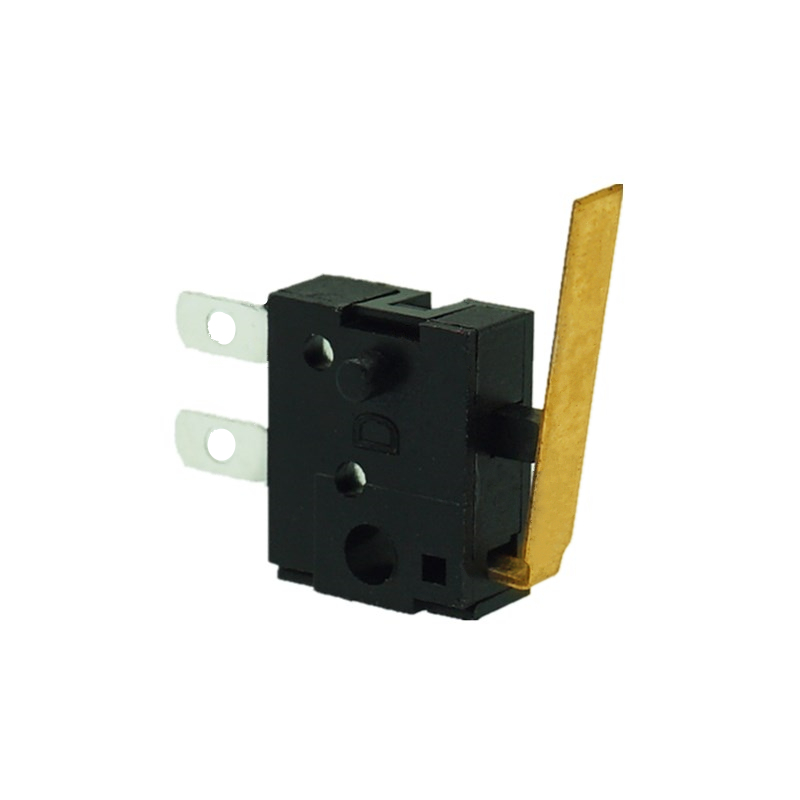

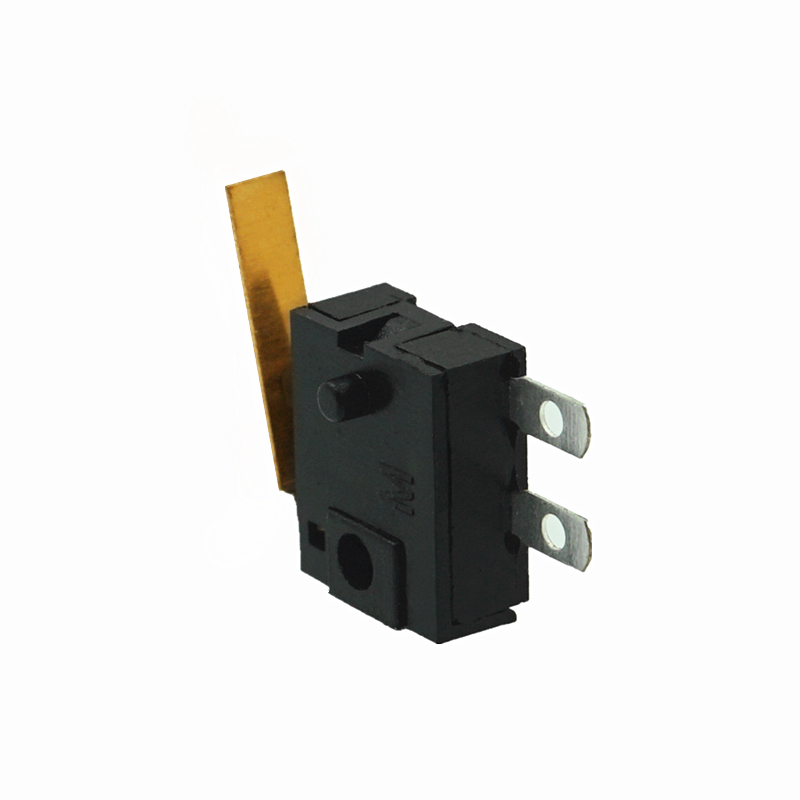

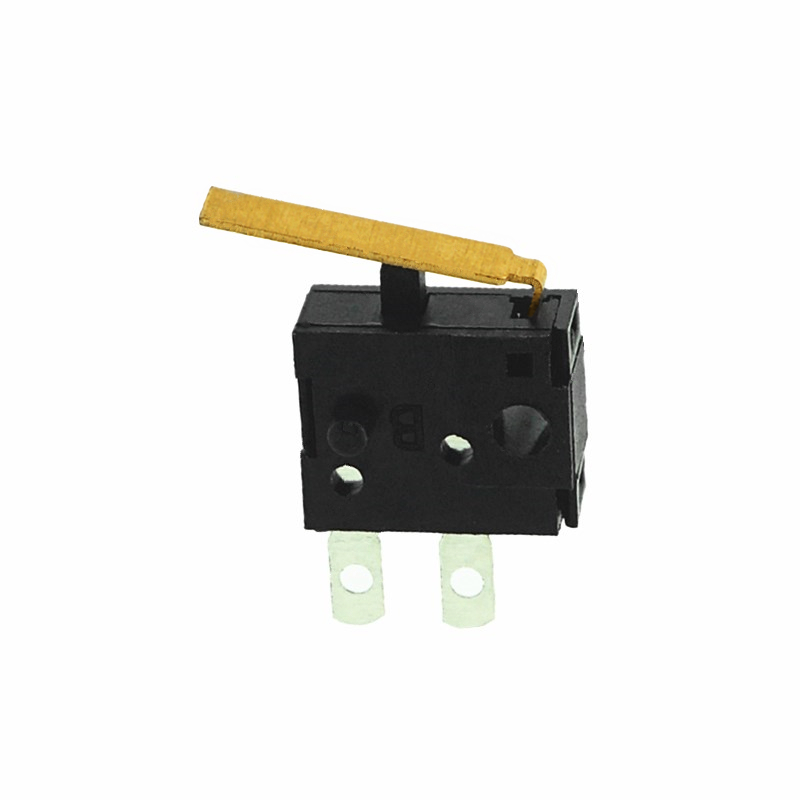

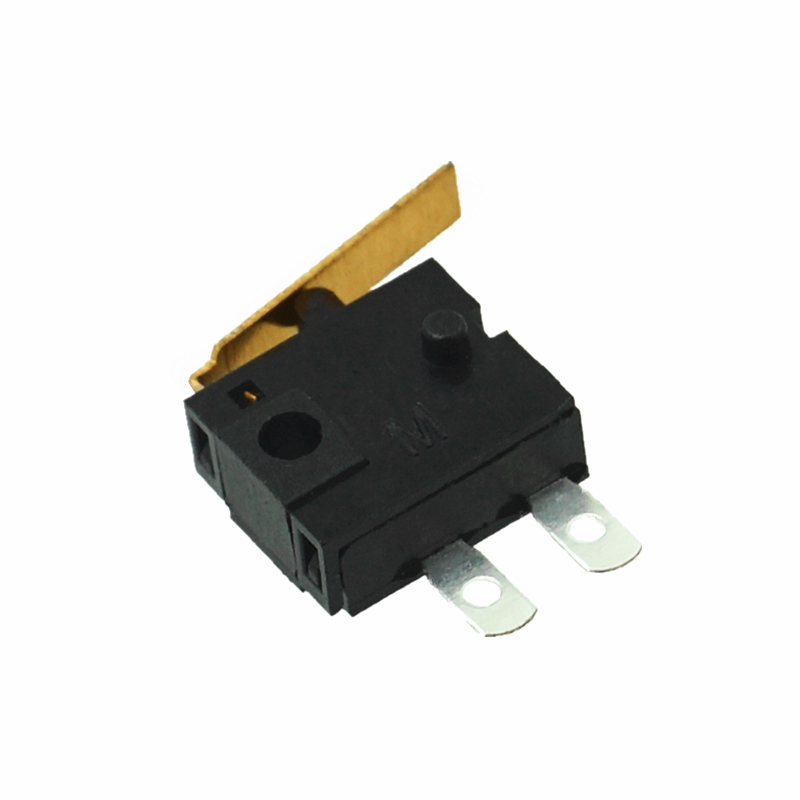

Two-legged wire detection switch L9.0*W3.5*H6.5 (shank length 12.0)

  • Specification:L9.0*W3.5*H6.5
  • Model:KFC-V-103B (shank length 12.0)
  • Package:1000PCS/bag
  • Life:1 million times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Availability:
Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Operation Operation Force: See Product Specification
Contact Resistance: 500 mΩ MAX.
Insulation Resistance: 100 MΩ MIN.
Mechanical life: 1 million times
Electrical life: 10000 times
Operating temperature: -25℃~85℃
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

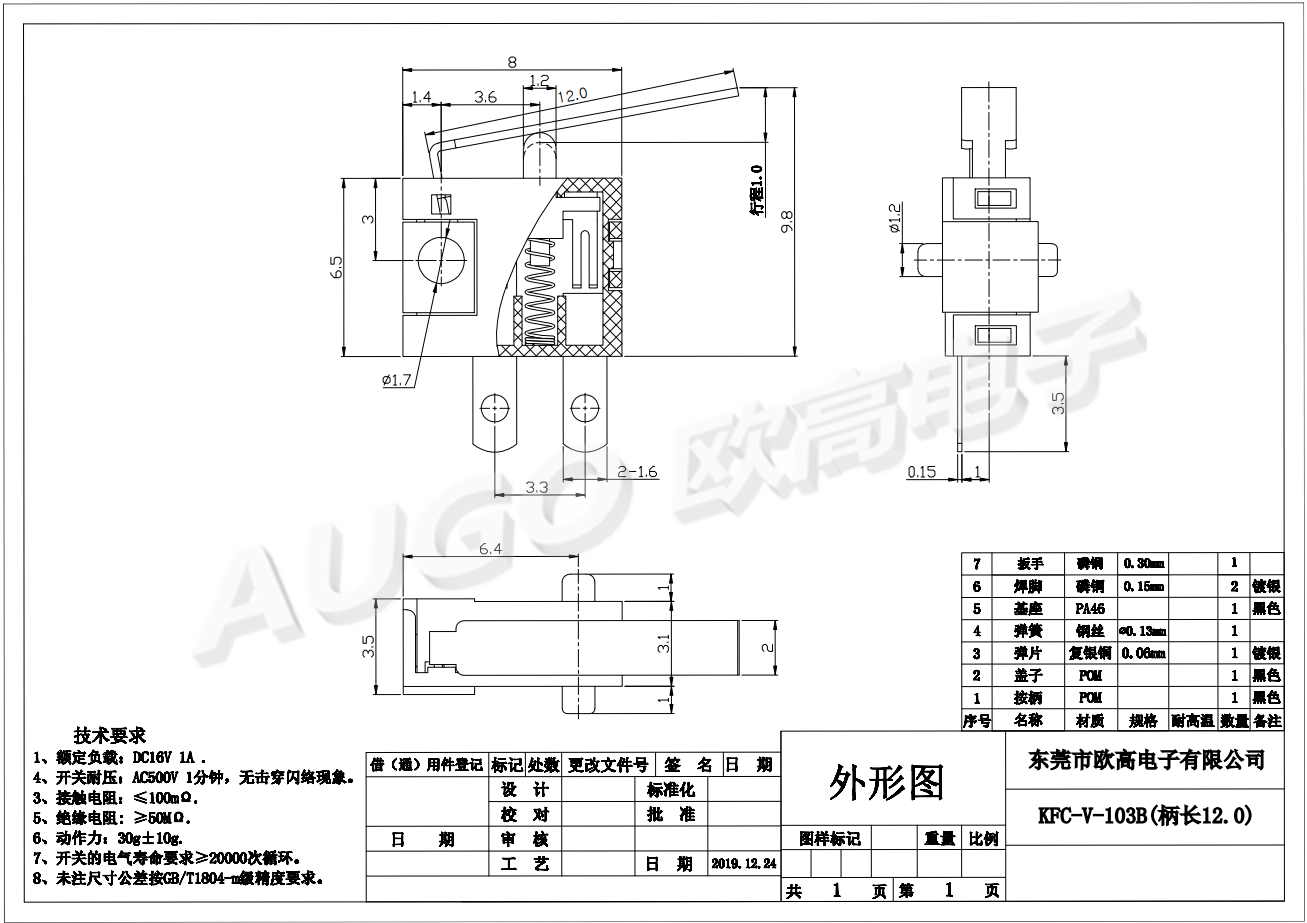

Dimensional drawings

两脚焊线检测开关尺寸图
