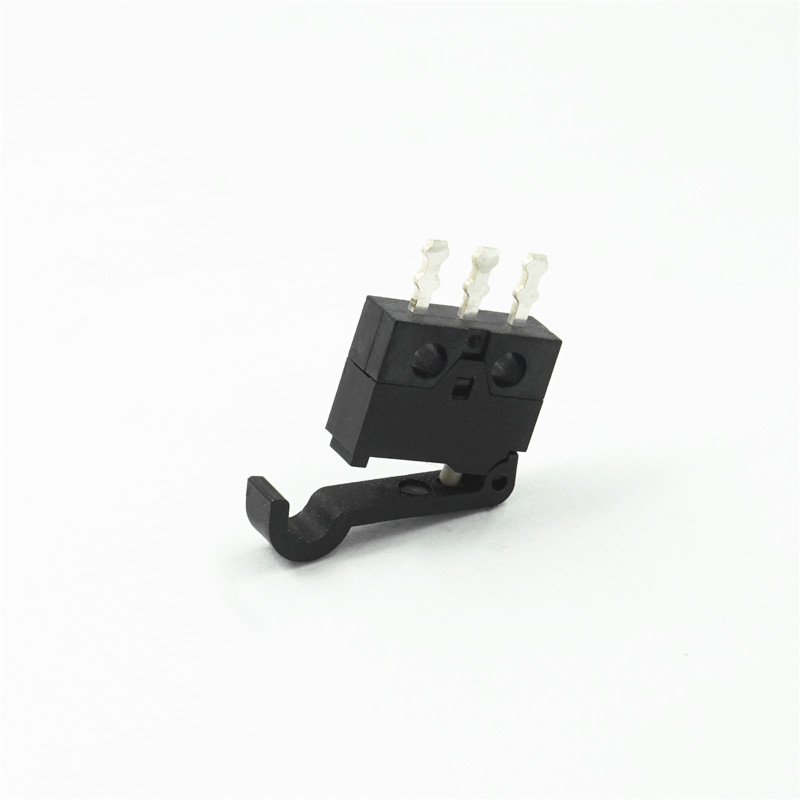

Ultra-small micro switch, a variety of foot types to choose from

AUGO

Ultra-small micro switch, a variety of foot types to choose from

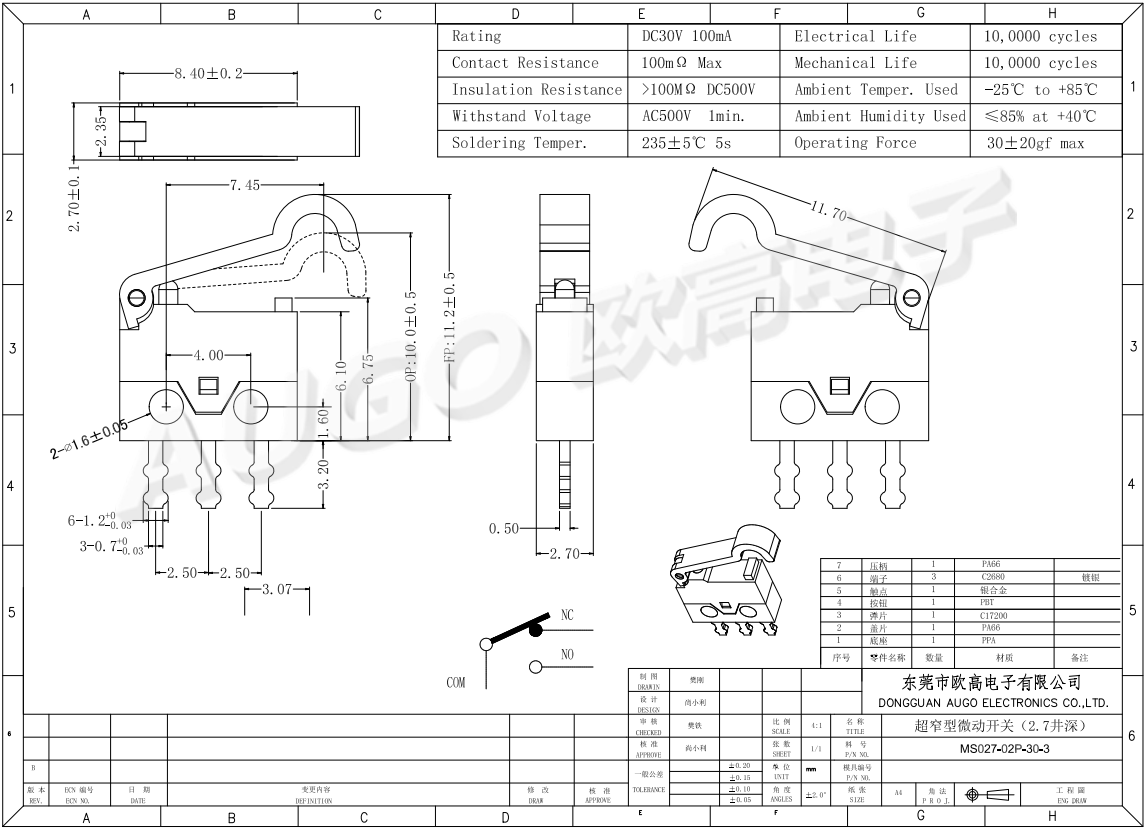

Specification：L8.4*W2.7*H11.2
Model：MS027-02P-30-3
Package：1000PCS/袋
Life：100,000 times

Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.
Scope of application:Applicable to security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Use temperature: -25℃~85℃
Mechanical life: 100,000 times

Contact Resistance: 100 mΩ MAX.
Insulation resistance: 100 MΩ MIN.
Electrical life: 100,000 times

Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.
Scope of application:Suitable for security, computer, communication products, household appliances, intelligent transportation, etc. div>
