Small micro switch

Excellent quality, good service, very competitive price.

AUGO

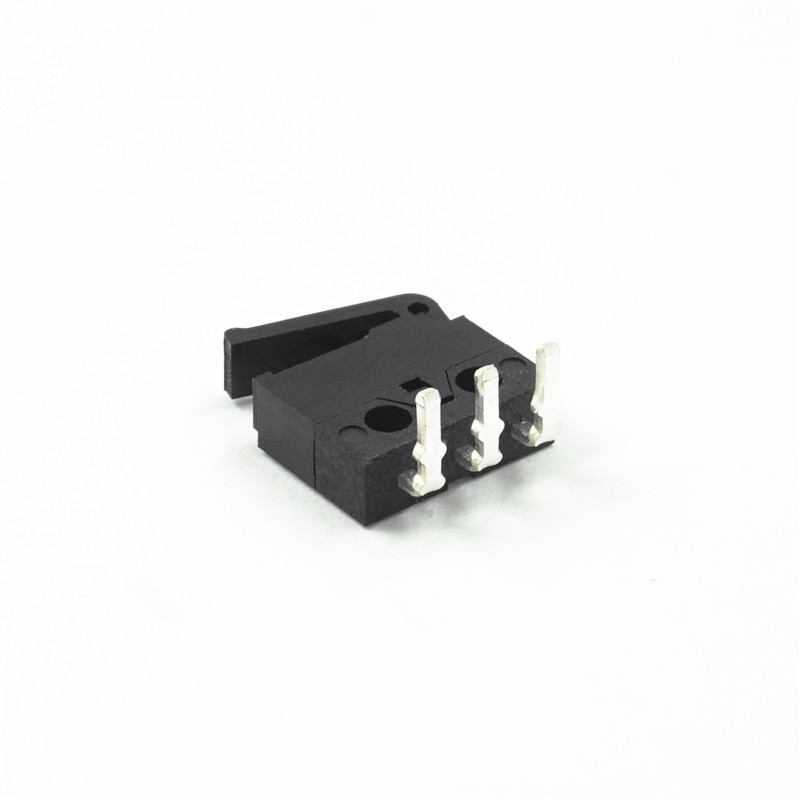

Medical device micro switch L8.4*W2.7*H9.4

  • Specification:L8.4*W2.7*H9.4
  • Model:MS027-01CR-40-3
  • Package:1000PCS/bag
  • Life:100,000 times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Use temperature: -25℃~85℃
Mechanical life: 100,000 times
Contact Resistance: 100 mΩ MAX.
Insulation resistance: 100 MΩ MIN.

Electrical life: 100,000 times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for security, computer, communication products, household appliances, intelligent transportation, etc.   div>

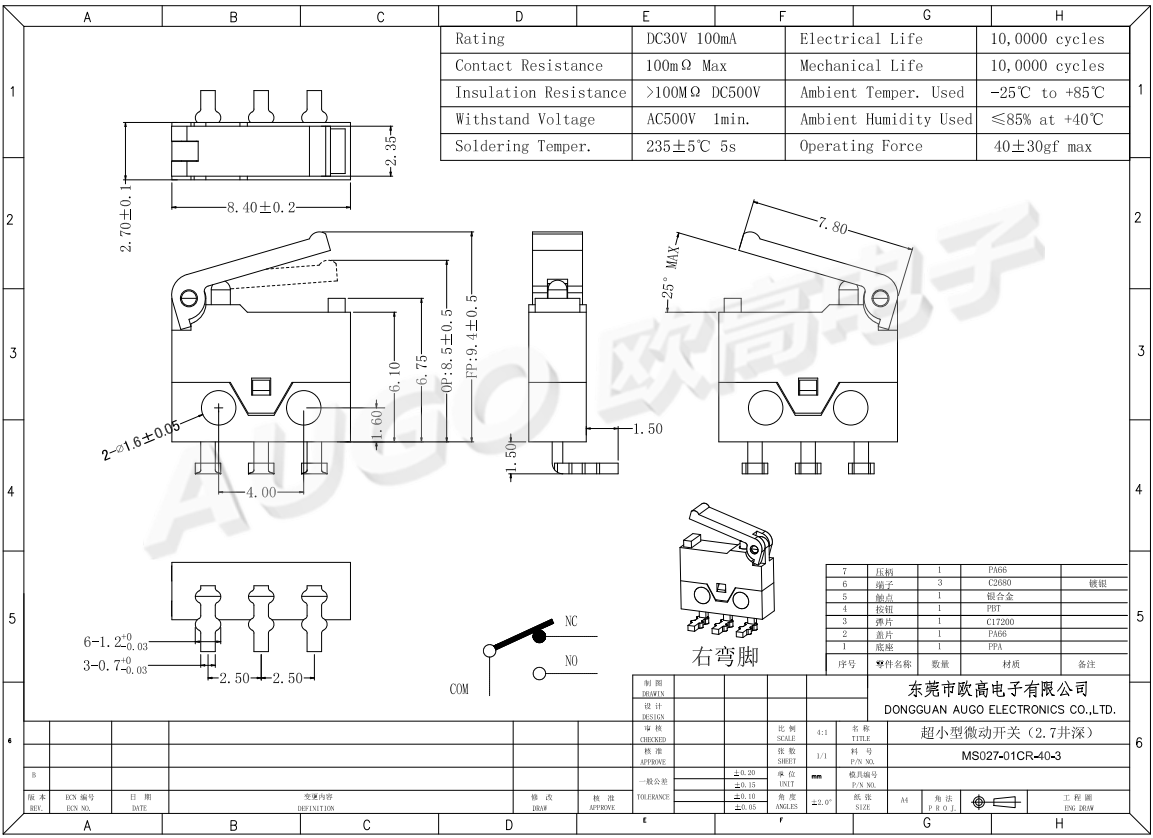

Dimensional drawings

医疗器械微动开关尺寸图
