Micro switchExternal mechanical force transfers the force through transmission elements (press pins, buttons, levers, rollers, etc.) Acts on the action reed. Instantaneous action occurs when the action reed is displaced to a critical point. The moving contact and the fixed contact at the end of the action reed are quickly connected or disconnected. When the force on the transmission element is removed. The action reed produces the opposite action force. When the reverse stroke of the transmission element reaches the critical point of action of the reed. The reverse action is completed instantaneously. The contact distance of the micro switch is short, and the action stroke is short, and the on-off is fast according to the power. The action speed of the moving contact has nothing to do with the action speed of the transmission element.
There are many types of micro switches, and there are hundreds of internal structures. According to the volume, there are ordinary, small, and ultra-small; according to the protection performance, there are waterproof, dust-proof, and explosion-proof types; according to the breaking form, there are Single type, double type, multi-link type. There is also a strong disconnect micro switch (when the reed of the switch does not work, the external force can also make the switch disconnect); according to the breaking capacity, there are ordinary type, DC type, micro-current type, and high-current type. According to the use environment, there are ordinary type, high temperature resistant type (250 ℃), super high temperature resistant ceramic type (400 ℃). Today, Ou Gao Electronics will introduce to you several commonly used micro switch products, including model parameters and pictures.
Introduction of various models of micro switches

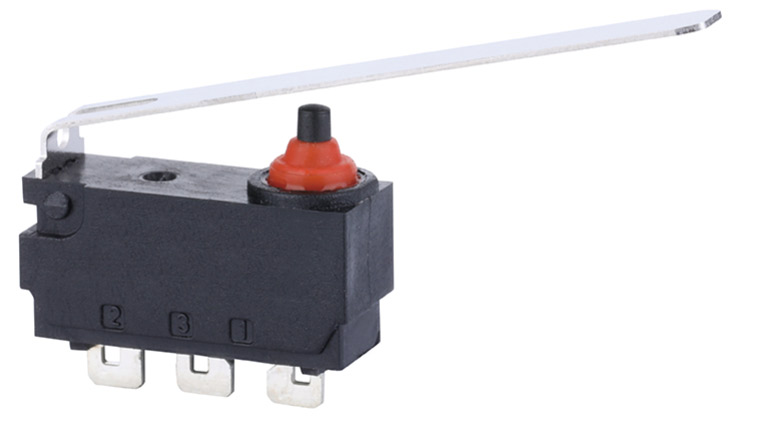

1, Subminiature Micro Switch
Use temperature: -25℃~85℃
Mechanical life: 100,000 times

Contact Resistance: 100 mΩ MAX.
Insulation resistance: 100 MΩ MIN.
Electrical life: 100,000 times
