DIP Earphone socket

Excellent quality, good service, very competitive price.

AUGO

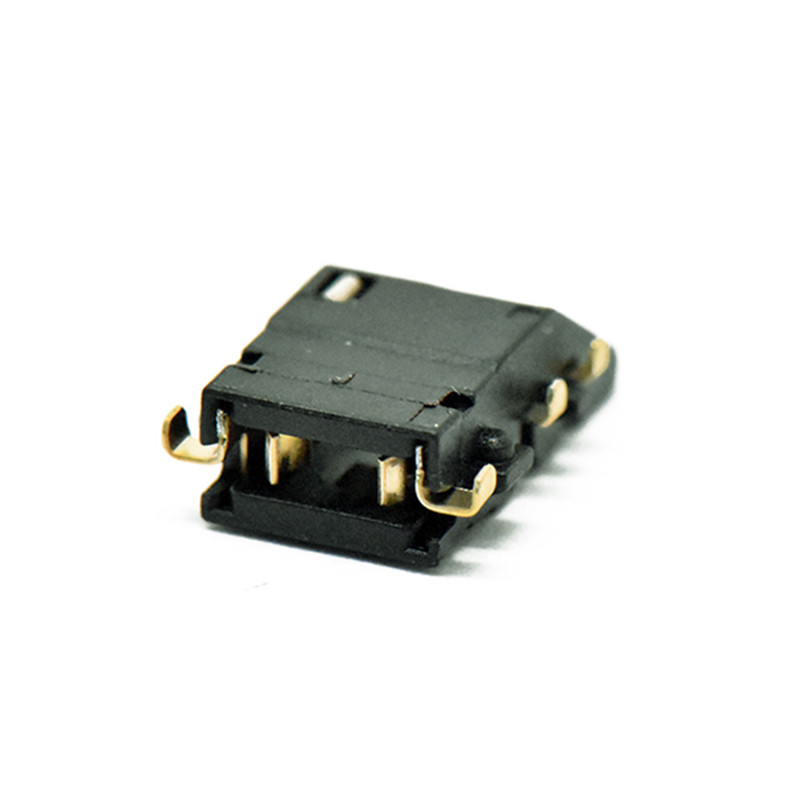

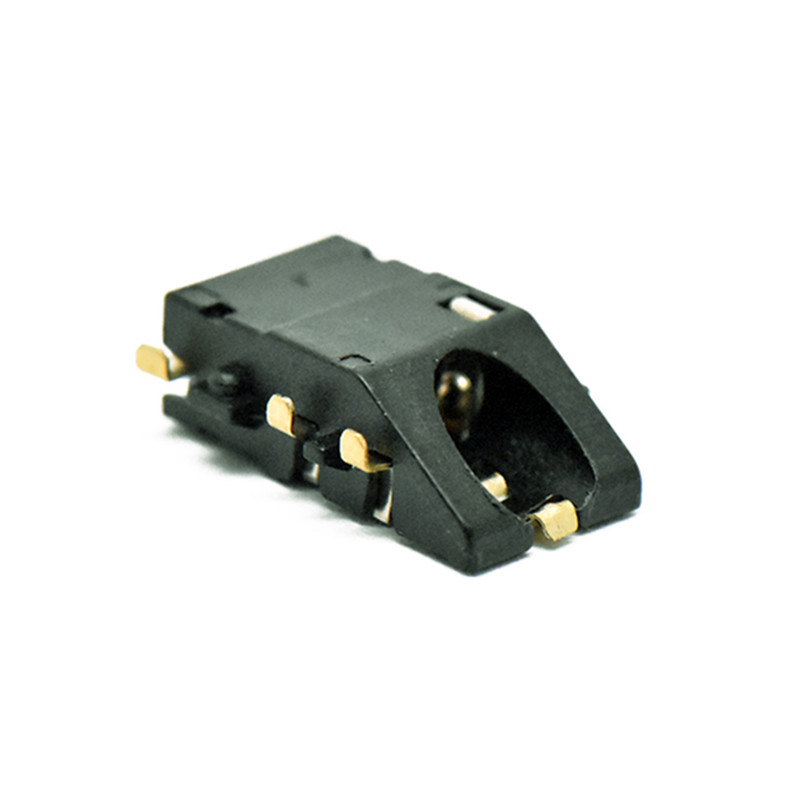

Broken plate inclined earphone socket

  • Specification:L12.0*W8.1*H4.2
  • Model:PJ-0420XPC200
  • Package:1000PCS/bag
  • Life:5000 times
Product features:
Socket type: 2.5mm, 3.5mm, 6.35mm line standard specification;
Installation mode: patch type, plug-in plate, sink plate, reverse, etc;
Plug life: 5000 times;
Application: audio transmission of various consumer electronic products, home and office equipment and portable electronic devices.

Specification

Product parameters:
Rated value: 1.0A/DC12V
Service temperature: - 40 ~ 55 ℃
Contact impedance: 50m Ω Max
Insulation impedance: 100M Ω min
Plugging force: 3 ~ 30n
Life test: 5000 times

Product features:
Socket type: 2.5mm, 3.5mm, 6.35mm line standard specification;
Installation mode: patch type, plug-in plate, sink plate, reverse, etc;
Plug life: 5000 times;
Application: audio transmission of various consumer electronic products, home and office equipment and portable electronic devices.

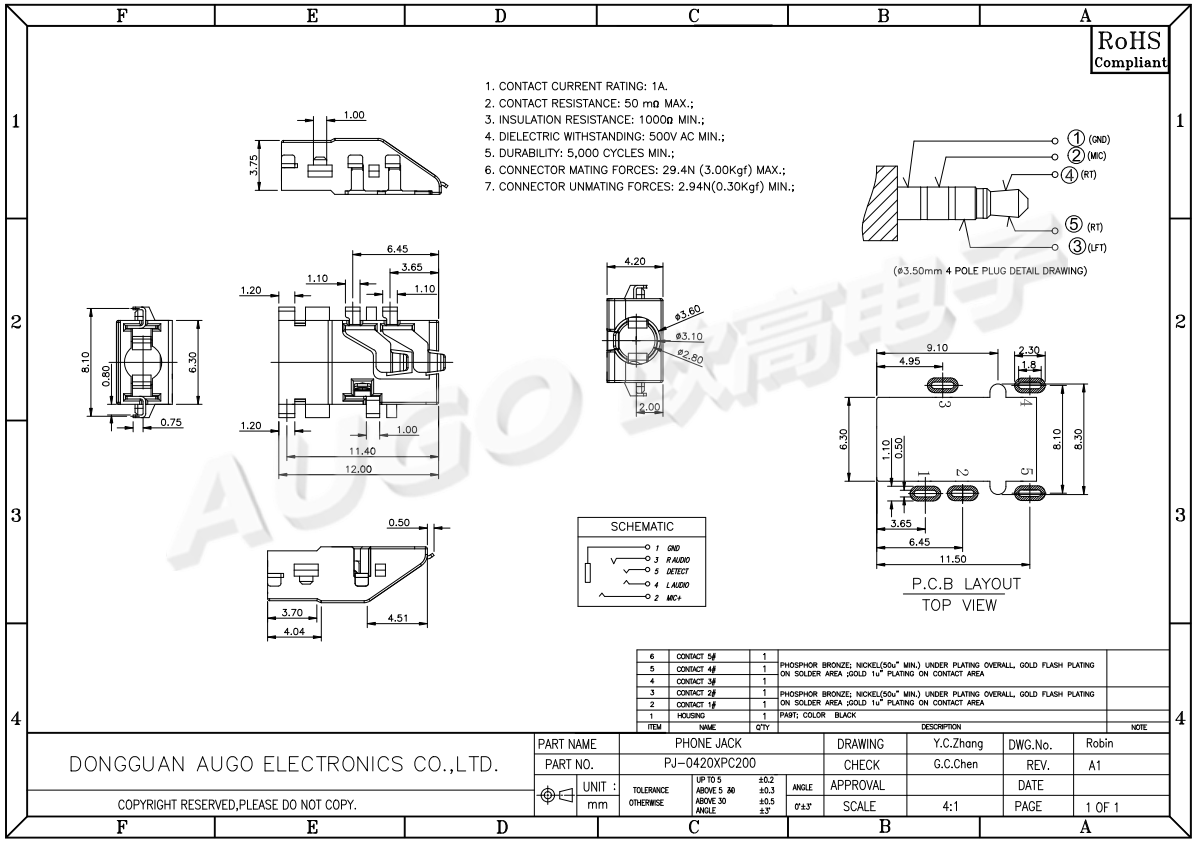

Dimensional drawings

破板式耳机插座尺寸图
