DIP DC socket

Excellent quality, good service, very competitive price.

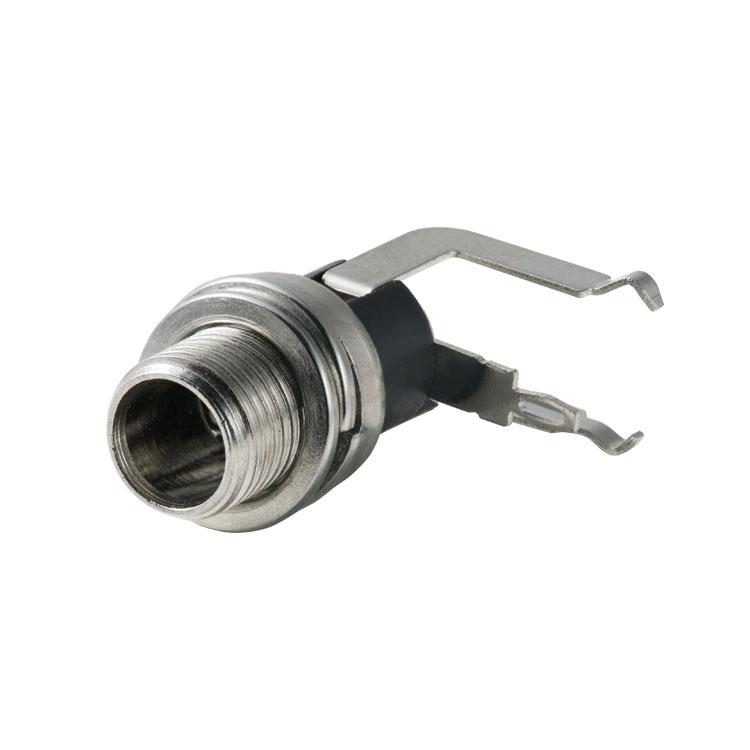

Three pin side plug power socket

  • Specification:
  • Model:DS-075-20
  • Package:500PCS/bag
  • Life:5000cycles
Ds-075-20 DC power socket, three pin side plug, terminal silver treatment, improve conductivity, head with thread, thread length can be customized, fixed with nut gasket, suitable for 5521 power plug.


Technical parameters:
Rated load: 1A 30V DC
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min
Operating force: 3 ~ 20n
Service life: 5000cycles
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. Structural design with different specifications such as AC97 and HDA
2. The contact terminal adopts elastic structure design to ensure good contact stability and long service life
3. Elastic terminals are made of imported materials to ensure the service life and electrical performance of elastic parts
4. Dip and SMT are available for installation
5. Output products with different functions can be designed according to customer requirements

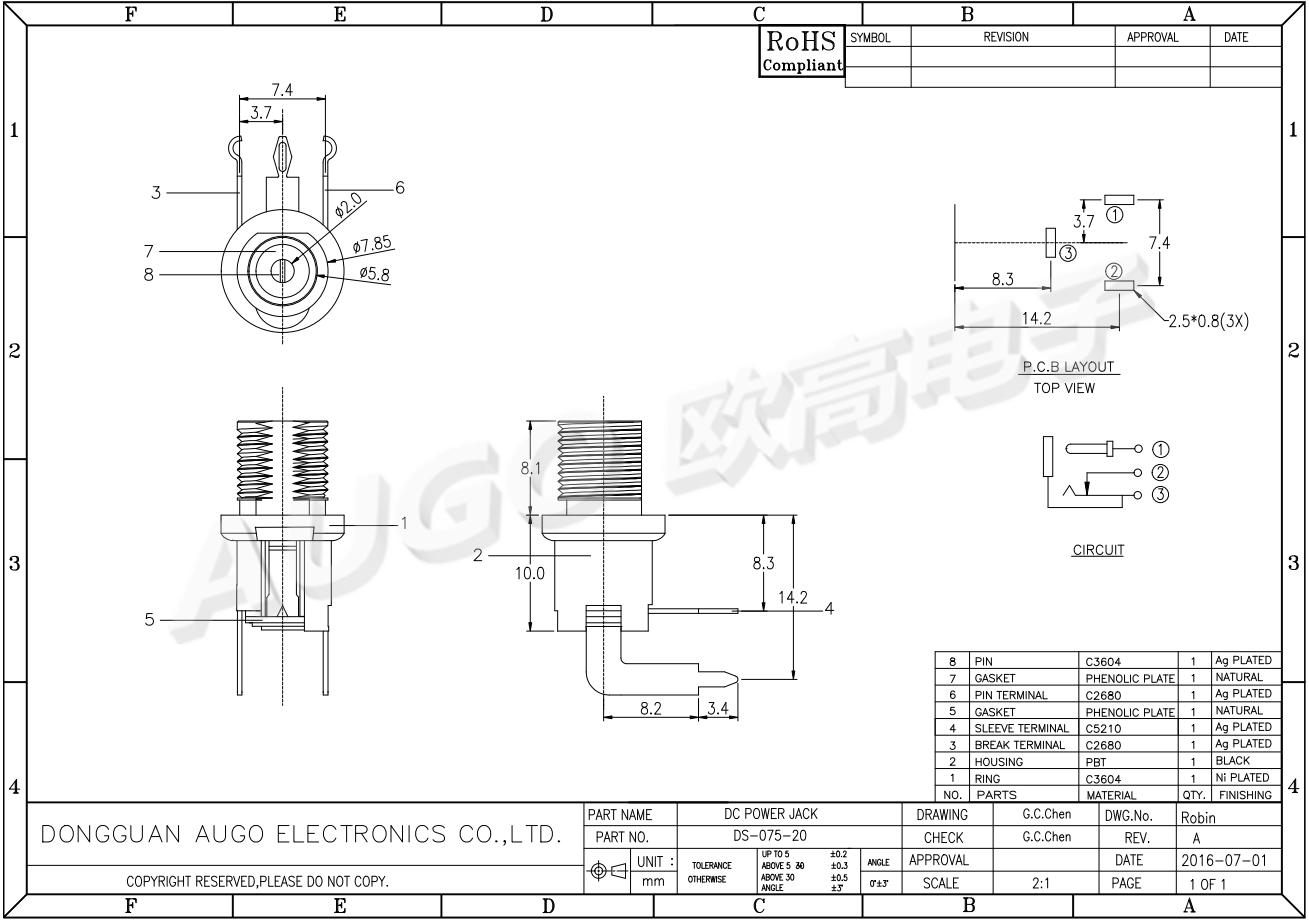

Dimensional drawings

电源插座 DS-075-20尺寸图
