DIP DC socket

Excellent quality, good service, very competitive price.

AUGO

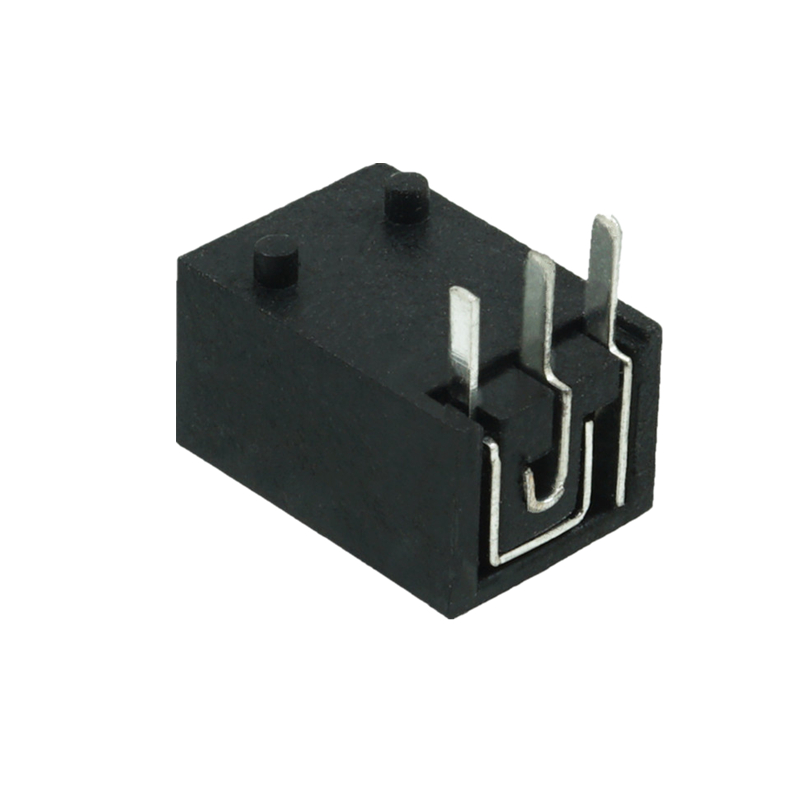

DC charging socket

  • Specification:L9.0*W6.1*H5.0
  • Model:DS-112-13
  • Package:1000PCS/袋
  • Life:5000cycles
Scope of application:
It is suitable for audio-visual products, digital products, remote controls, communication products, household appliances, medical equipment and other fields

Specification

Technical parameters:
Rated load: 1A 30V DC
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min
Operating force: 3 ~ 20n
Service life: 5000cycles
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. Structural design with different specifications such as AC97 and HDA
2. The contact terminal adopts elastic structure design to ensure good contact stability and long service life
3. Elastic terminals are made of imported materials to ensure the service life and electrical performance of elastic parts
4. Dip and SMT are available for installation
5. Output products with different functions can be designed according to customer requirements

Dimensional drawings

儿童玩具DC充电插座尺寸图
