Side pressure shrapnel battery

Excellent quality, good service, very competitive price.

AUGO

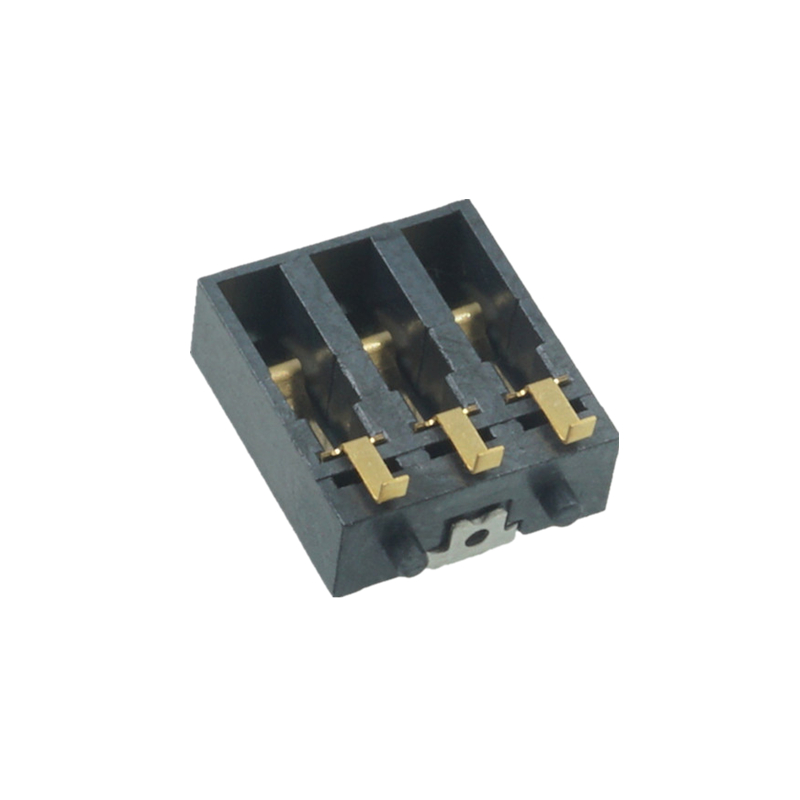

Shrapnel battery holder

  • Specification:L9.0*W3.5
  • Model:BC-30-3PD
  • Package:500PCS/plate
  • Life:5000cycles
Product features:
4PIN2. 5ph, positive pressure type, shrapnel gold-plated, SMD patch terminal, suitable for lithium battery connection of mobile lighting equipment.
Scope of application:
Tactical lighting lamps, scanners, walkie talkies, mobile phones and other handheld terminals

Specification

Technical parameters:
Weldability: 245 ℃± 5 ℃ 3S ± 1s
Welding heat resistance: 260 ℃± 5 ℃ 3S ± 1s
Rated load: 2.0A 12V DC
Contact resistance: 100M Ω Max
Insulation impedance: 100M Ω min Ac500V (50 ~ 60Hz) 1minute
Operating temperature: - 25 ℃ ~ 85 ℃
Working life: 5000cycles
Scope of use: scanners, walkie talkies, mobile phones and other handheld terminals

matters needing attention:
Manual welding: 30W soldering iron shall be used, the temperature at the tip of the soldering iron shall not exceed 350 ℃, and the welding time shall be 3S.
Wave soldering / reflow soldering: the peak temperature shall not exceed 260 ℃, and the welding time shall not exceed 5S. (refer to the following for welding temperature curve)

弹片电池座焊接温度曲线

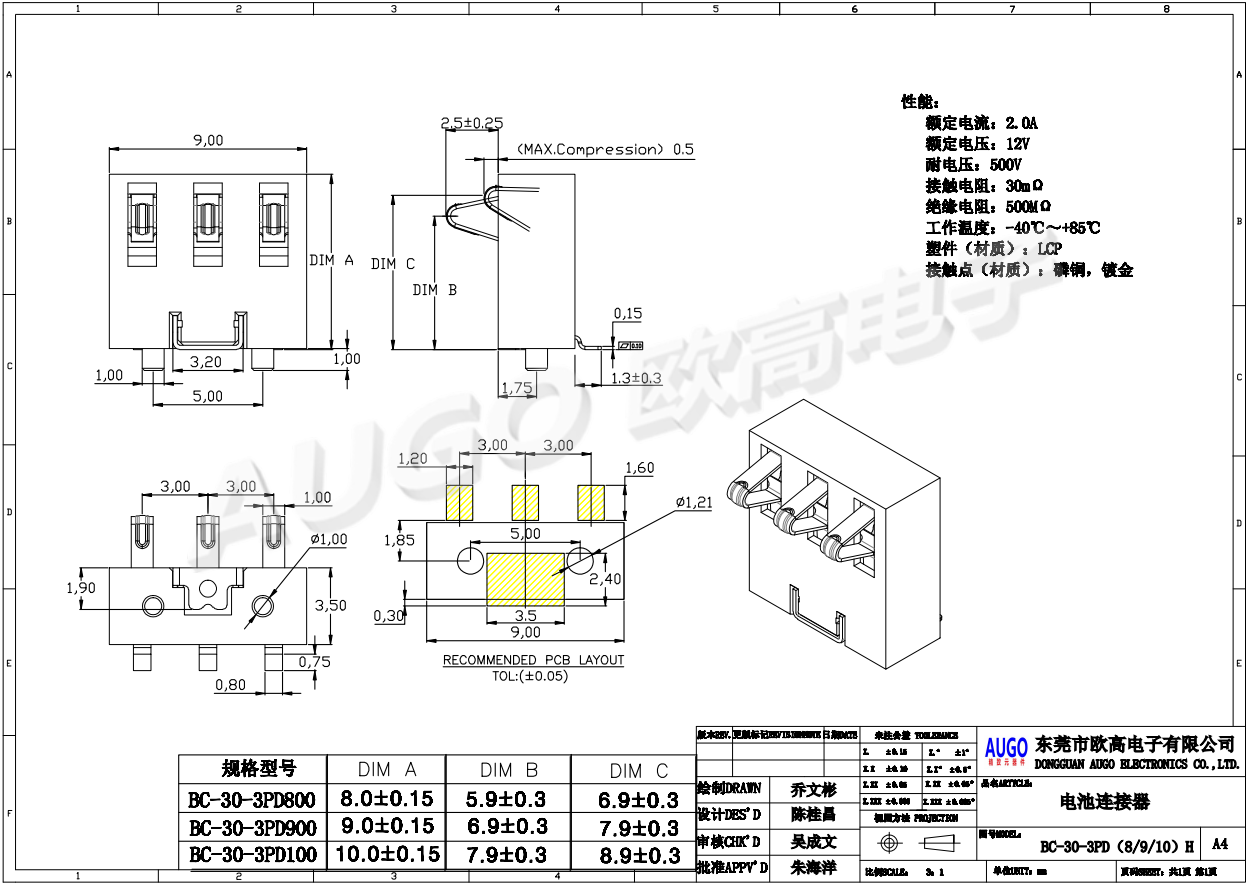

Dimensional drawings

3.0间距电池座尺寸图
