Male Connector

Excellent quality, good service, very competitive price.

AUGO

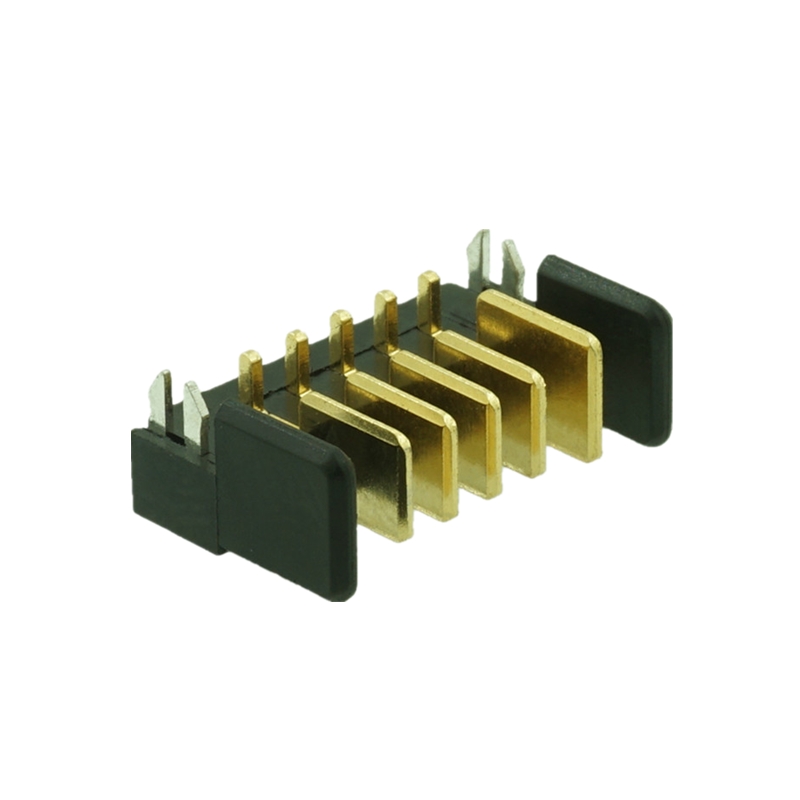

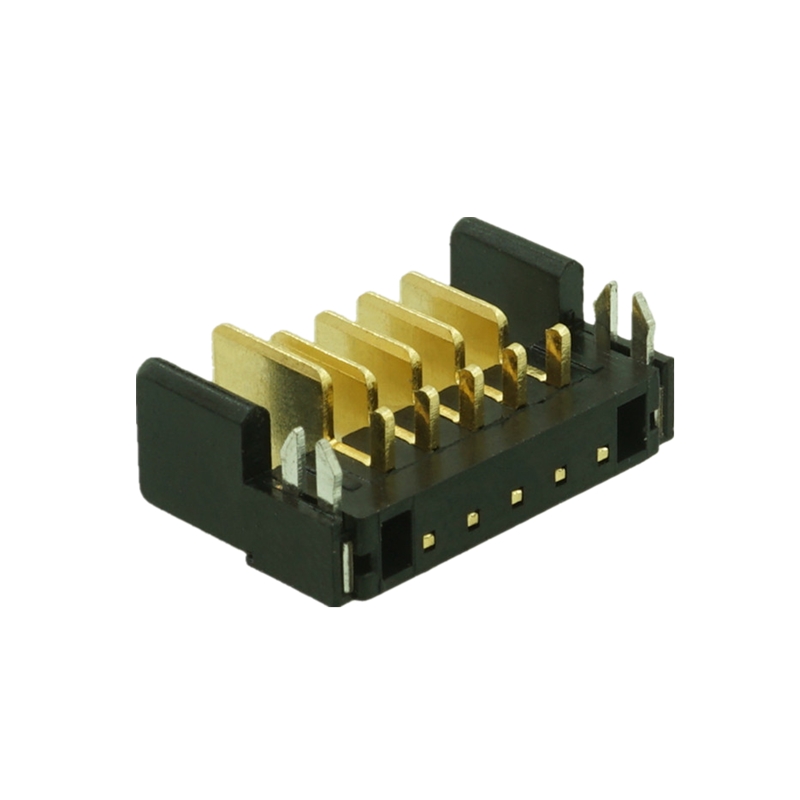

Vacuum cleaner battery connector

  • Specification:W10.1*H3.0
  • Model:AUGO-A01M-A
  • Package:Reel packing
  • Life:5000cycles
Bent foot sink plate design, with harpoon fixed feet, the height on the plate is 3.0mm, and 3-14pin can be used for design and selection.

Specification

Technical parameters:
Insulation body: LCP (UL94V-0)
Hardware Conductor: phosphor copper C5191 / brass C2680
Surface coating: gold is above nickel / tin, and the coating thickness is 2U ″
Insulation resistance: 100M Ω min
Contact resistance: 30m Ω Max
Rated current: 3A / pin
Instantaneous current: 5A / pin
Rated voltage: 30V DC
Operating temperature: - 30 ℃ ~ 105 ℃
Withstand voltage: 500V
High temperature resistance: 260 ℃ / 5S
Salt spray test: 48H
Working life: 5000cycles
Scope of application: notebook, vacuum cleaner, UAV, intelligent lock, tachograph, digital camera and various lithium battery protection boards.

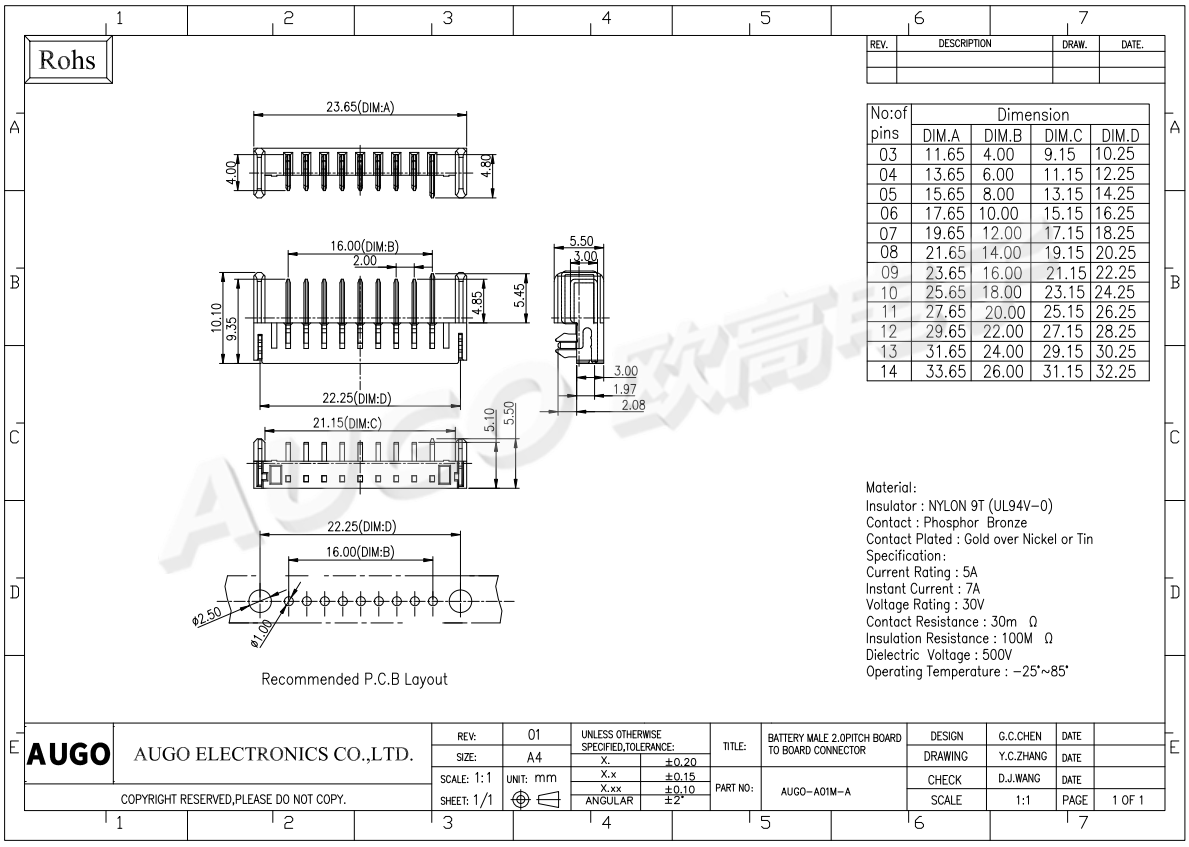

Dimensional drawings

吸尘器电池连接器尺寸图
