Female Connector

Excellent quality, good service, very competitive price.

AUGO

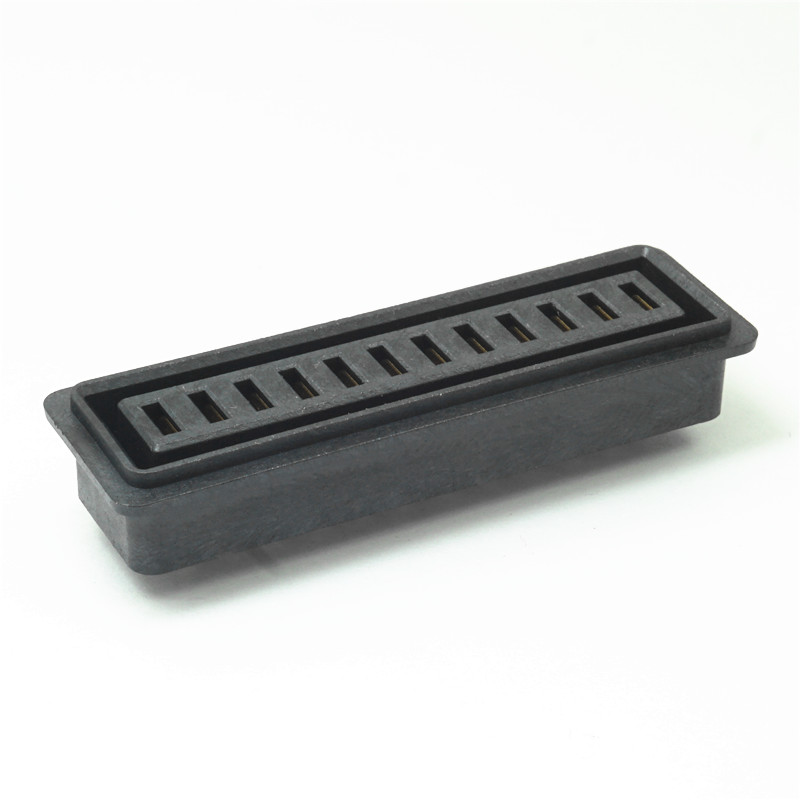

2.7mm connector female seat

  • Specification:L39.5*W12.4*H6.7
  • Model:AUGO-B27F-12P
  • Package:Reel packing
  • Life:5000cycles
2.7mm spacing, high current 12a, dip plug-in board, suitable for power connection of high-power equipment.

Specification

Technical parameters:
Insulation body: LCP (UL94V-0)
Hardware Conductor: phosphor copper C5191 / brass C2680
Surface coating: gold is above nickel / tin, and the coating thickness is 2U ″
Insulation resistance: 100M Ω min
Contact resistance: 30m Ω Max
Rated current: 3A / pin
Instantaneous current: 5A / pin
Rated voltage: 30V DC
Operating temperature: - 30 ℃ ~ 105 ℃
Withstand voltage: 500V
High temperature resistance: 260 ℃ / 5S
Salt spray test: 48H
Working life: 5000cycles
Scope of application: notebook, vacuum cleaner, UAV, intelligent lock, tachograph, digital camera and various lithium battery protection boards.

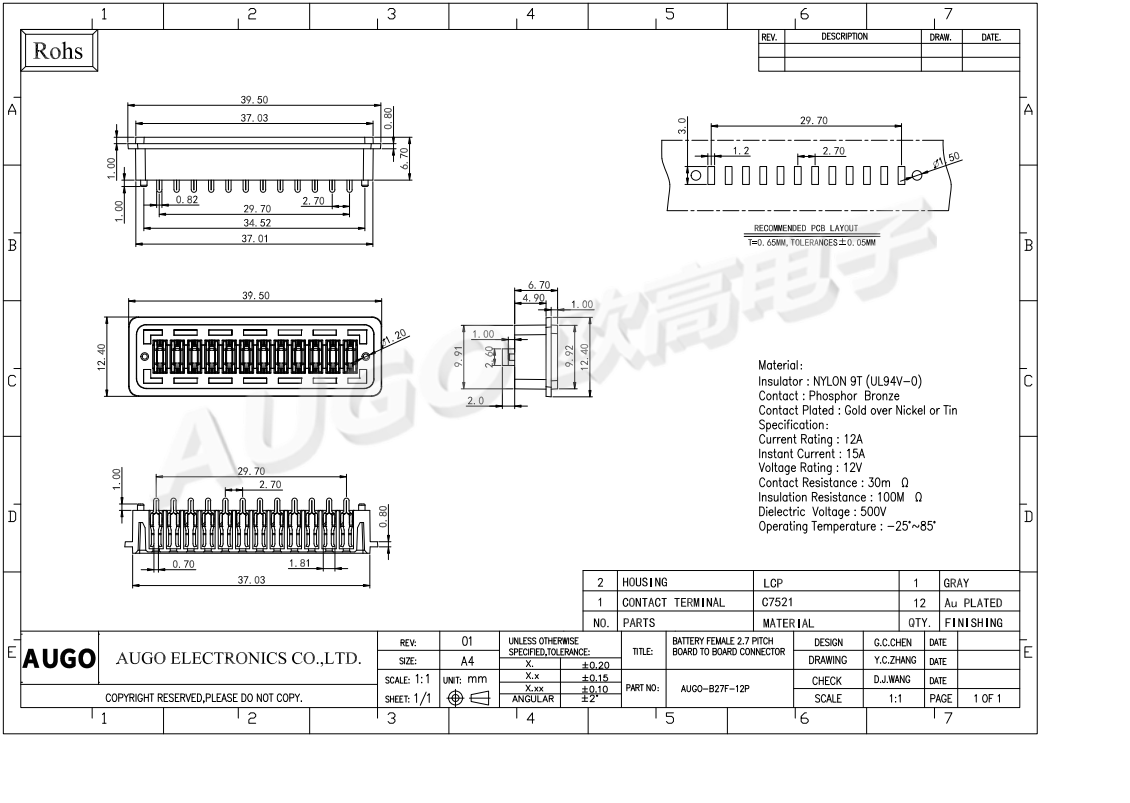

Dimensional drawings

2.7mm连接器12pin母座尺寸图
