Female Connector

Excellent quality, good service, very competitive price.

AUGO

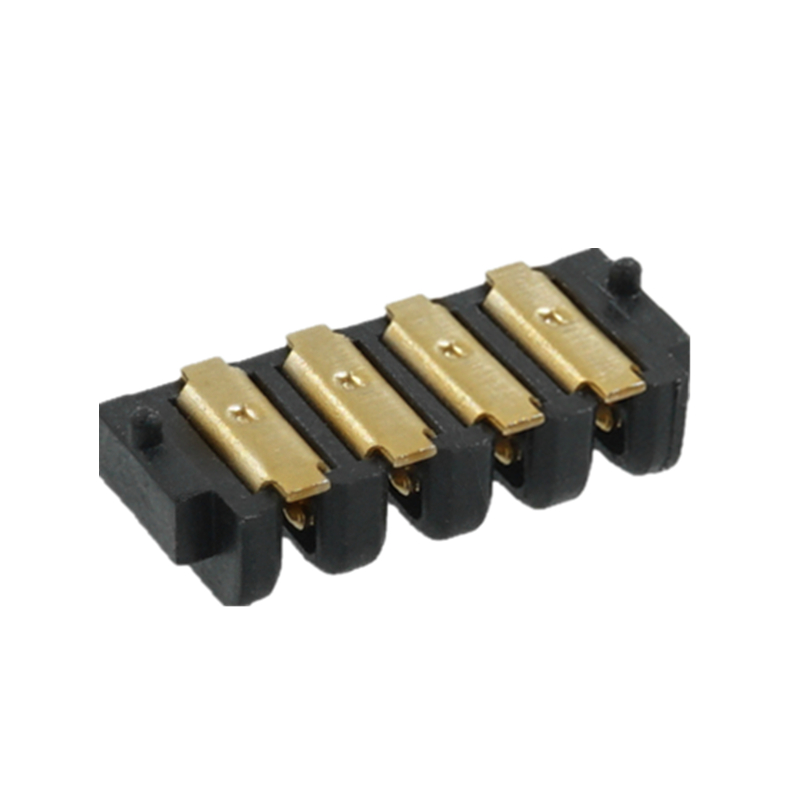

Ultra thin 2.0mm pitch 4Pin connector

  • Specification:L10.0*W4.0*H2.65
  • Model:AUGO-A00F-A-4P
  • Package:Bagged / taped
  • Life:5000cycles
2.0mm spacing 4Pin connector, ultra-thin design, copper gold-plated terminal, meeting the requirements of high current, SMD patch pin, convenient for automatic welding.

Specification

Technical parameters:
Insulation body: LCP (UL94V-0)
Hardware Conductor: phosphor copper C5191 / brass C2680
Surface coating: gold is above nickel / tin, and the coating thickness is 2U ″
Insulation resistance: 100M Ω min
Contact resistance: 30m Ω Max
Rated current: 3A / pin
Instantaneous current: 5A / pin
Rated voltage: 30V DC
Operating temperature: - 30 ℃ ~ 105 ℃
Withstand voltage: 500V
High temperature resistance: 260 ℃ / 5S
Salt spray test: 48H
Working life: 5000cycles
Scope of application: notebook, vacuum cleaner, UAV, intelligent lock, tachograph, digital camera and various lithium battery protection boards.

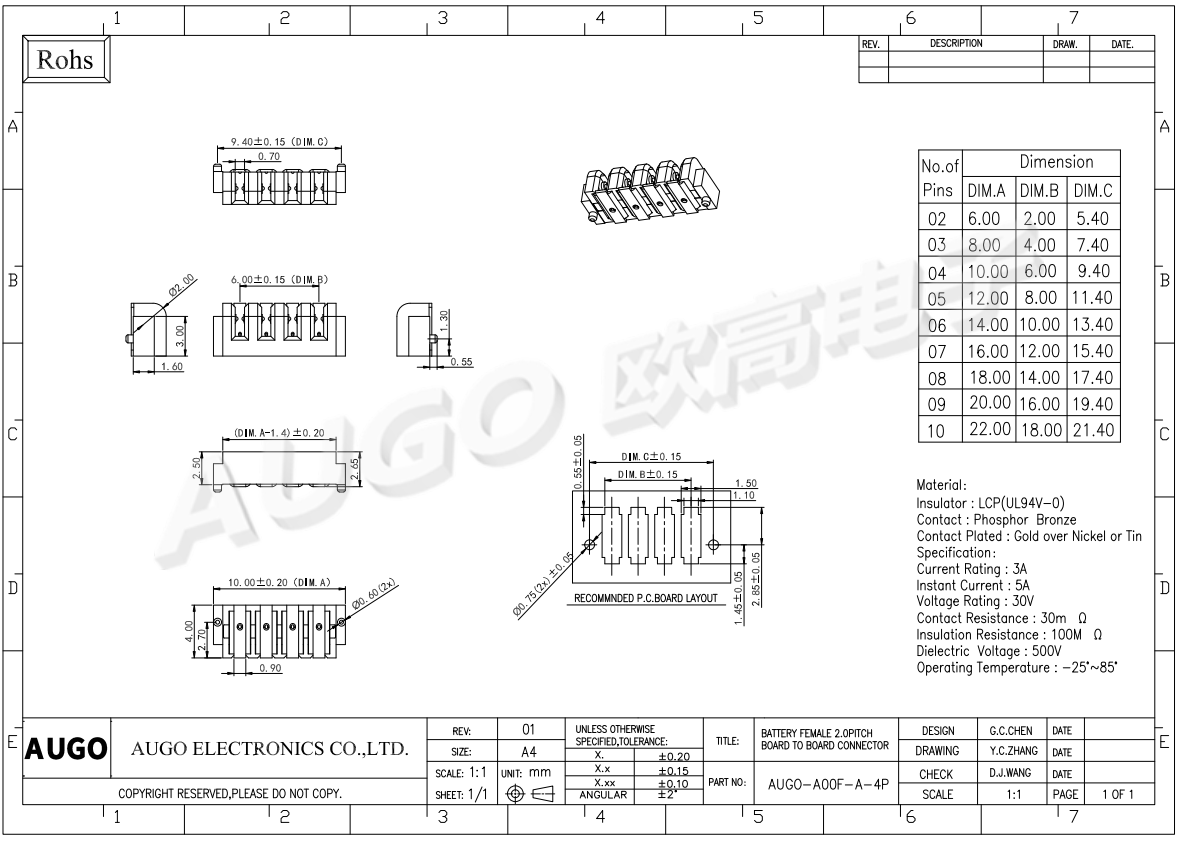

Dimensional drawings

2.0mm间距超薄连接器尺寸图
