Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

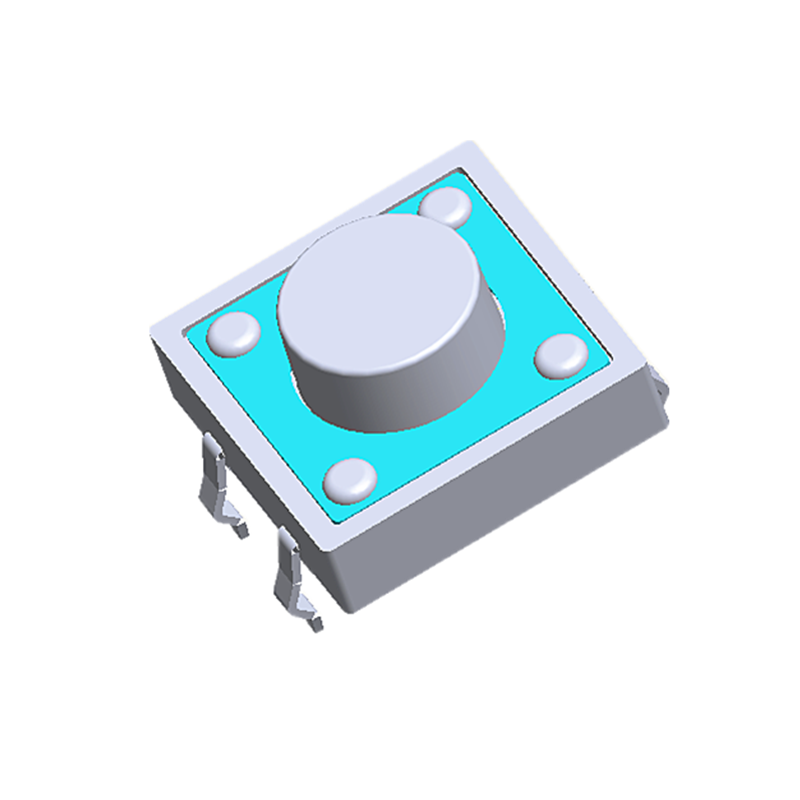

TD-12EA 12*12 light touch key switch DIP foot height can be customized

  • Specification:12*12*H
  • Model:TC-12EA
  • Package:1000PCS/bag
  • Life:100,000 times
12*12 light touch key switch, DIP pin, highly customizable

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min DC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

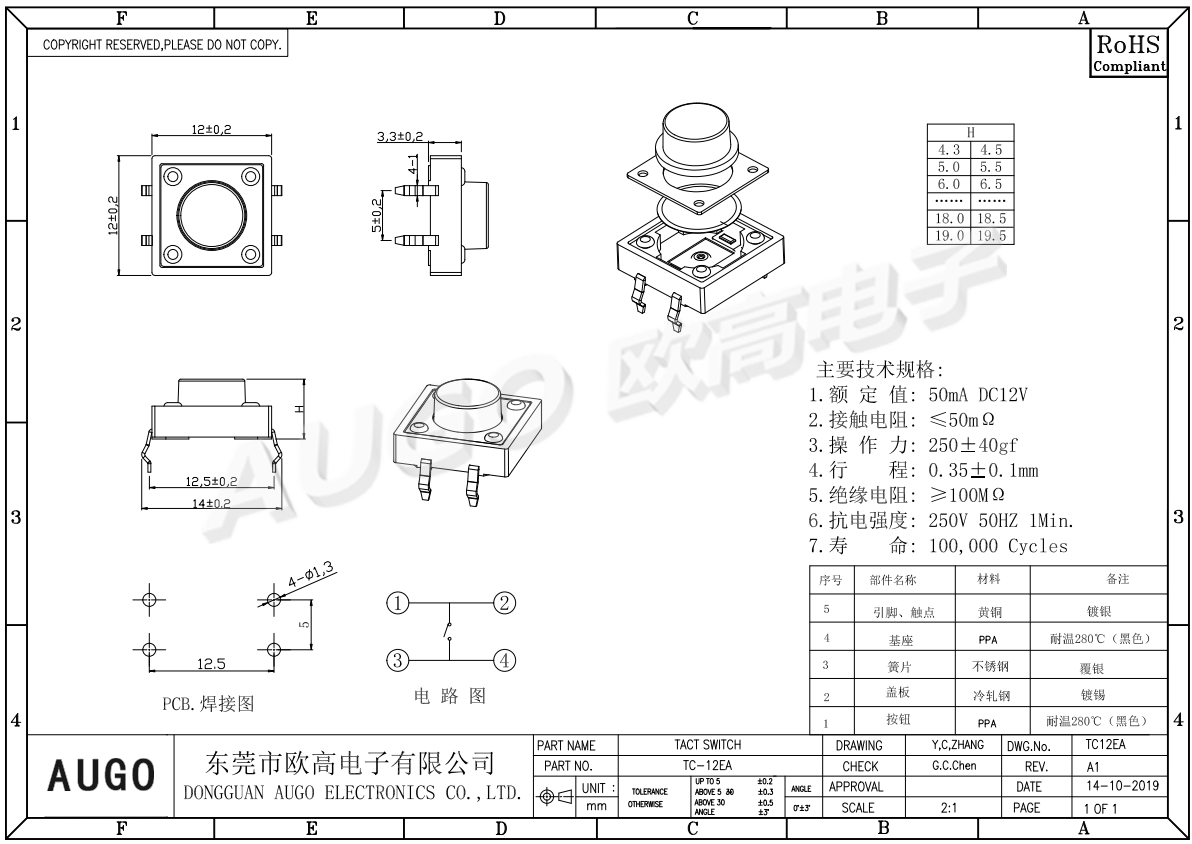

Dimensional drawings

12*12按键开关尺寸图
