Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

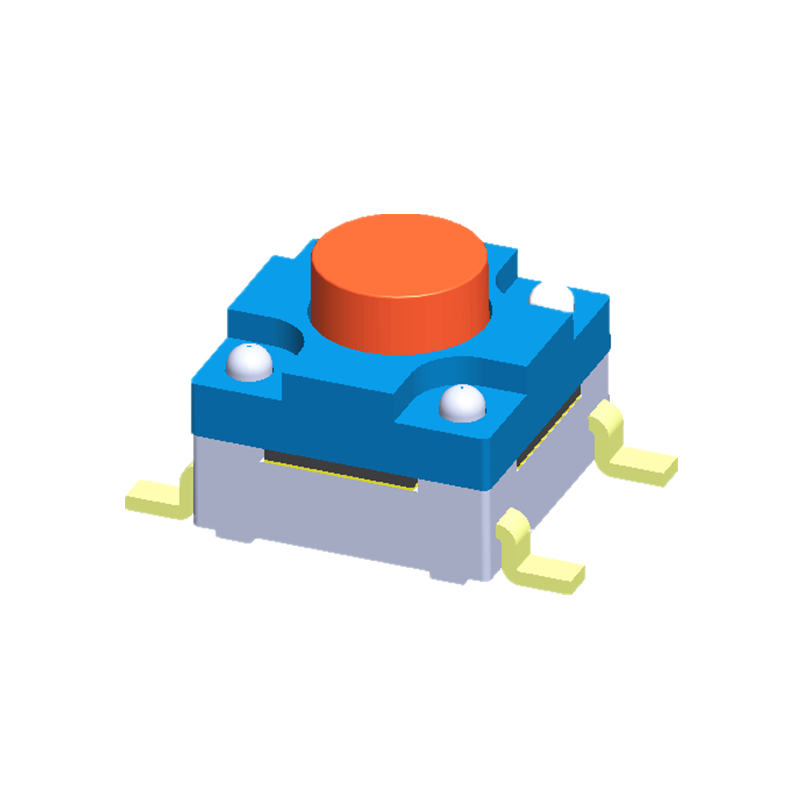

6*6 waterproof patch key switch, waterproof grade IP67, height 4.3-9.5mm

  • Specification:L6*W6*H
  • Model:TD-1140W
  • Package:Carrier tape packaging (quantity depends on product height)
  • Life:100,000 times
6*6 waterproof patch tact switch, four-legged patch, waterproof grade IP67, highly customizable (4.3-9.5mm), lifespan 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Waterproof grade: IP67
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

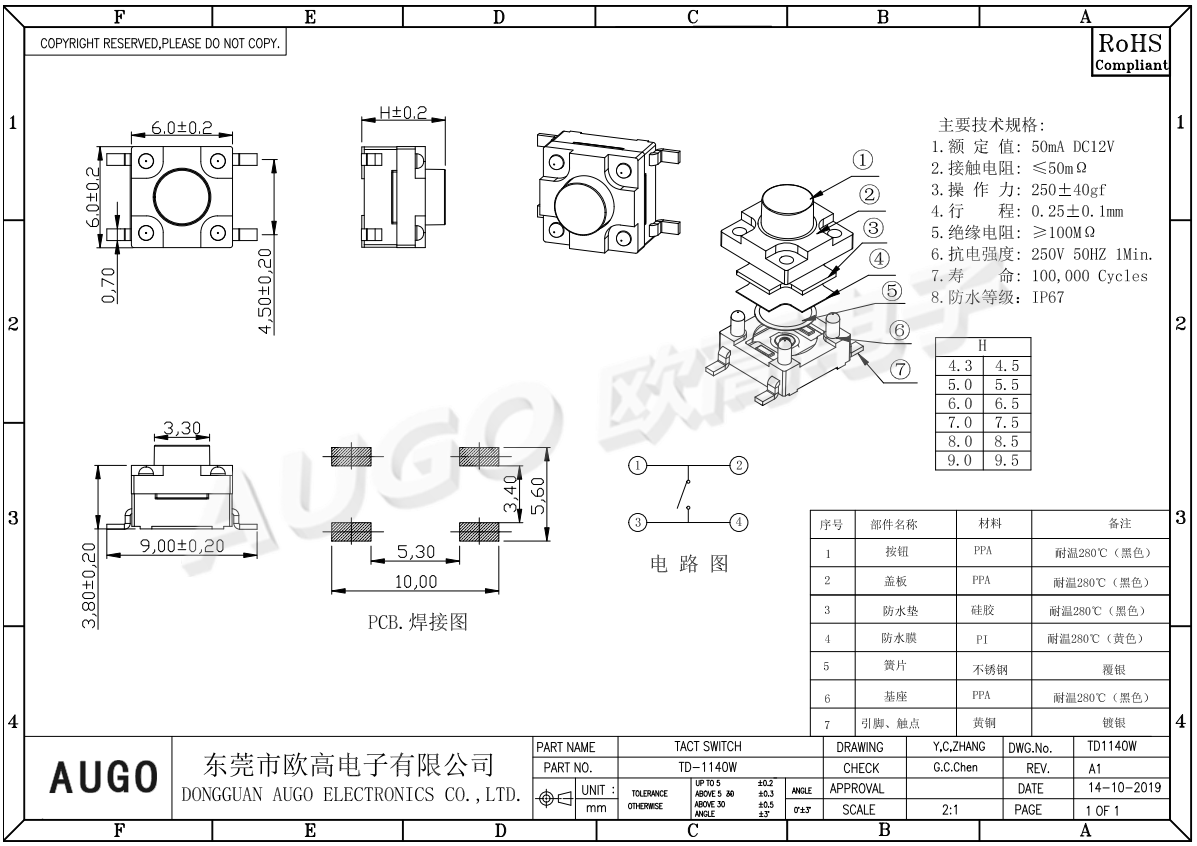

Dimensional drawings

6*6防水贴片按键开关尺寸图
