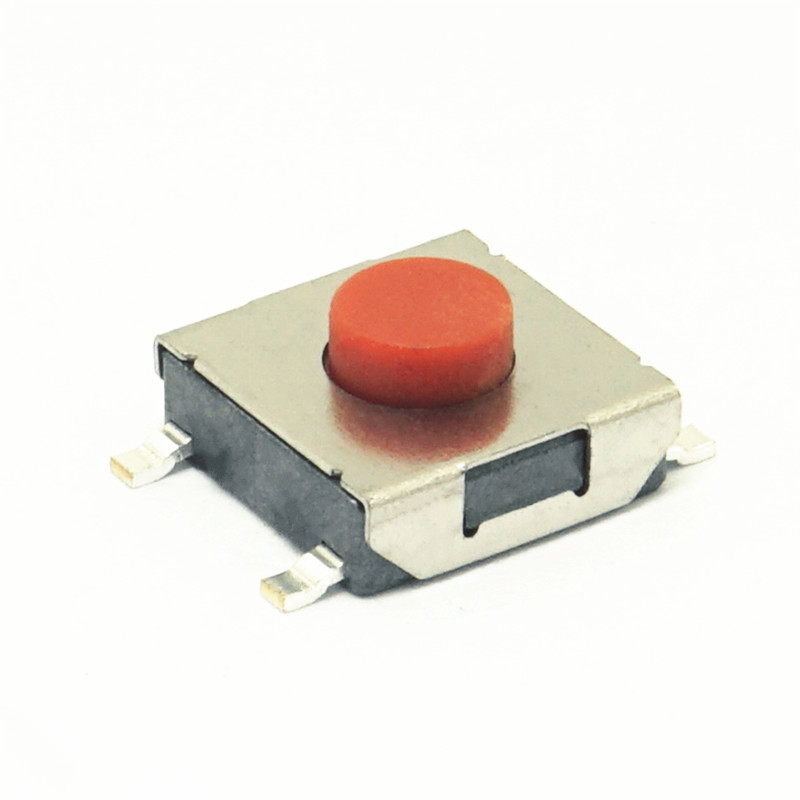

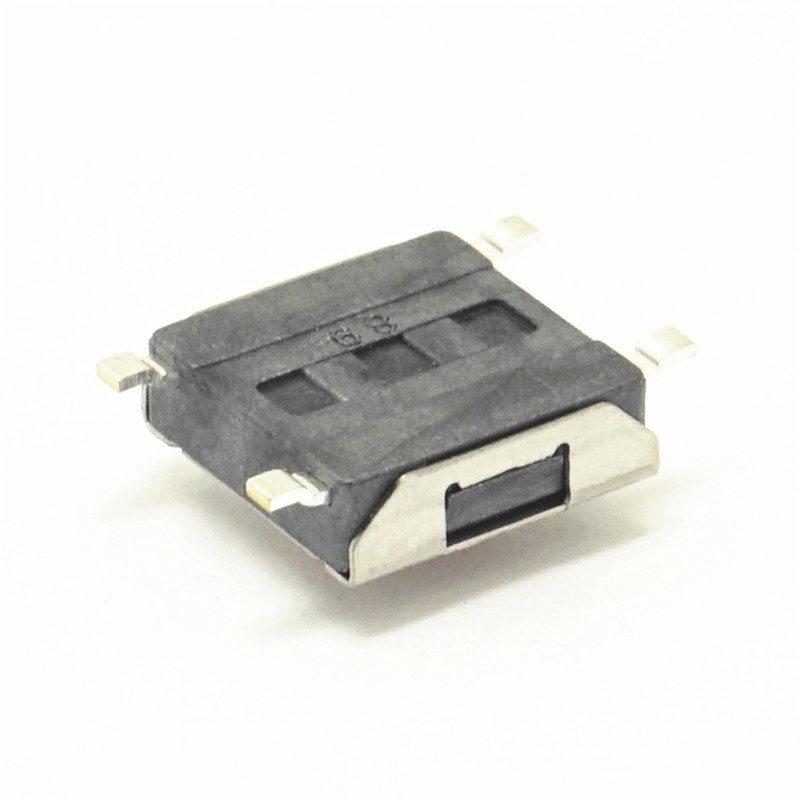

Display key switch 6.2*6.2 four-pin patch red button

  • Specification:6.2*6.2*3.1
  • Model:TD-08XB
  • Package:2000PCS/disk
  • Life:50000cycles
Four-legged SMD key switch, height can be customized, size 6.2*6.2mm

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Force: refer to product specification
Lifetime: 50,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

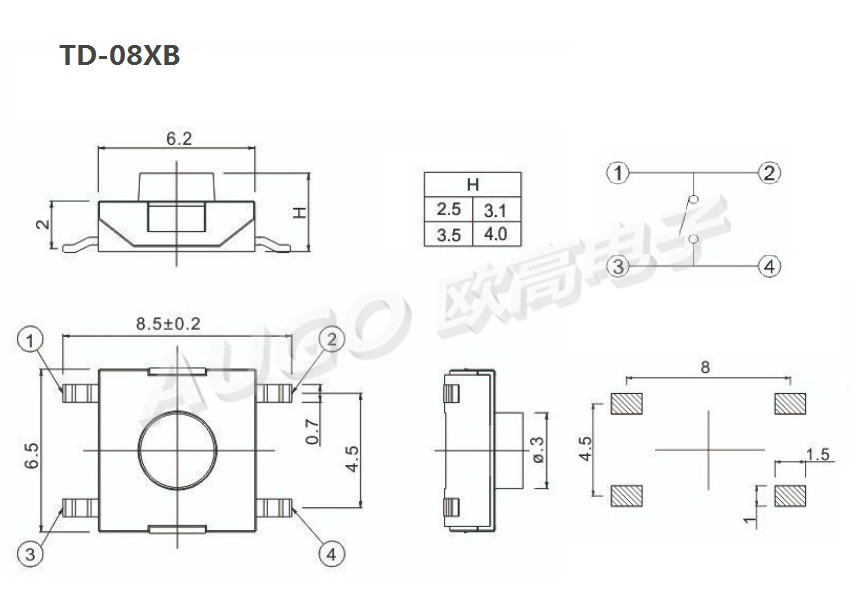

Dimensional drawings

6.2*6.2*3.1H贴片按键开关
