Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

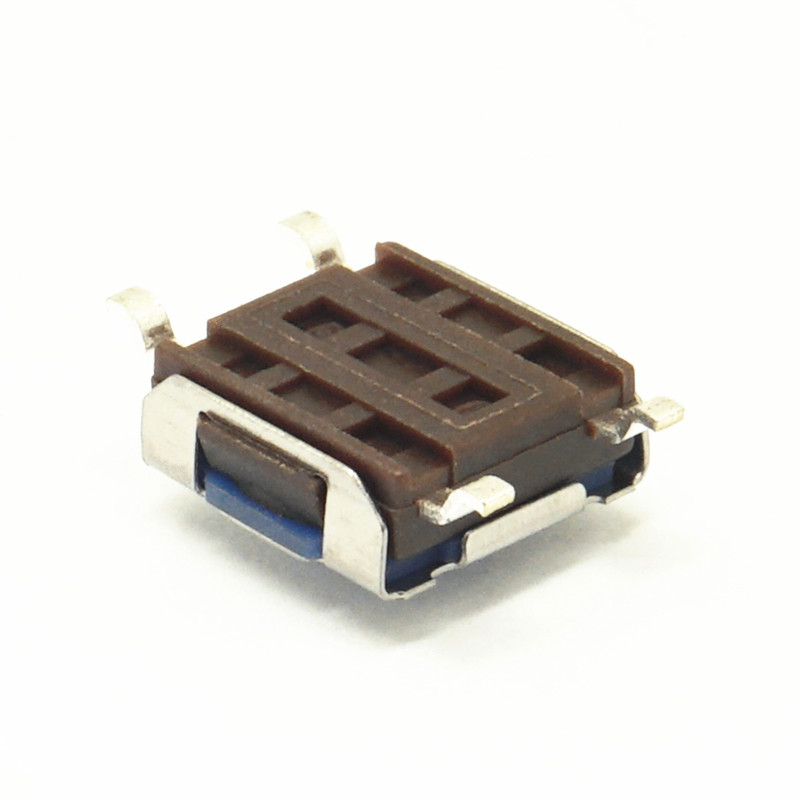

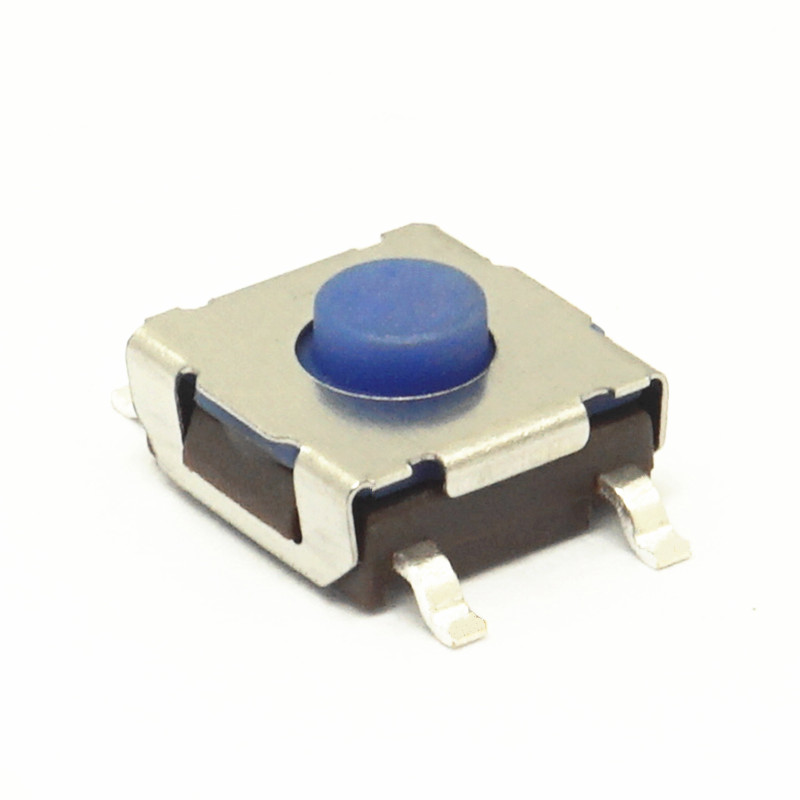

Speaker button switch 6.2*6.2 silicone tact switch four-legged patch waterproof and dustproof

  • Specification:6.2*6.2*H
  • Model:TD-1156SP
  • Package:2000PCS/disk
  • Life:100,000 times
Four-legged patch, the buttons are made of silicone material, waterproof and dustproof, highly customizable

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

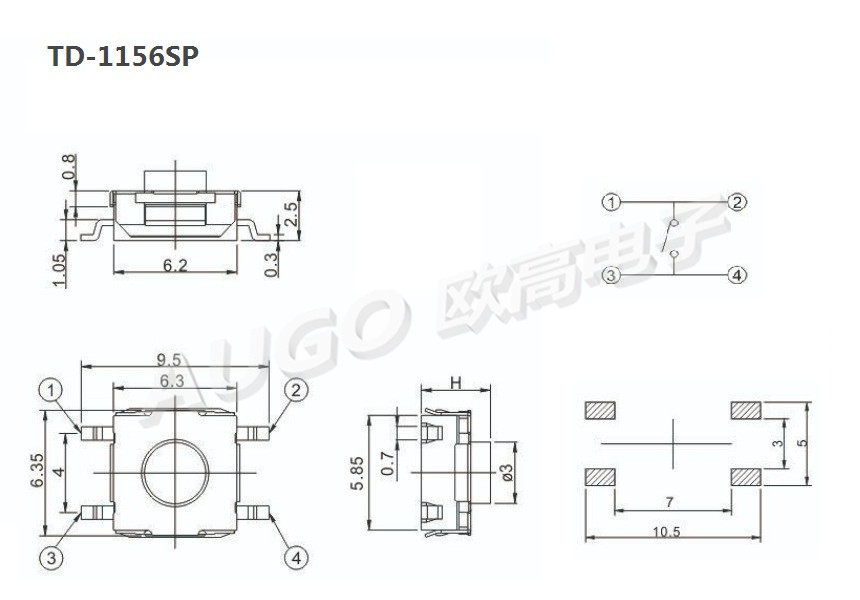

Dimensional drawings

音箱按键开关尺寸图
