Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

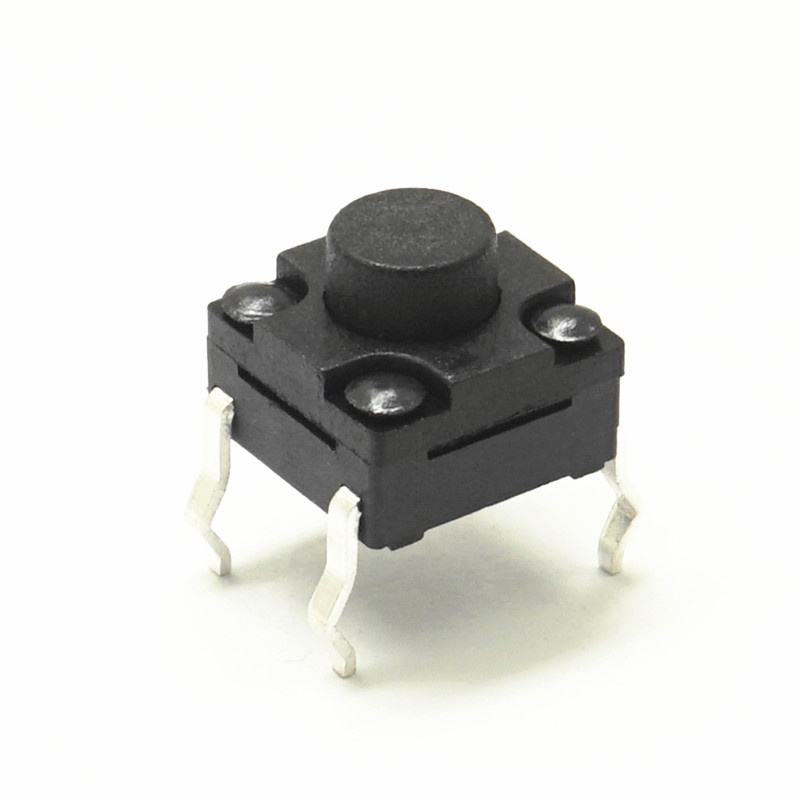

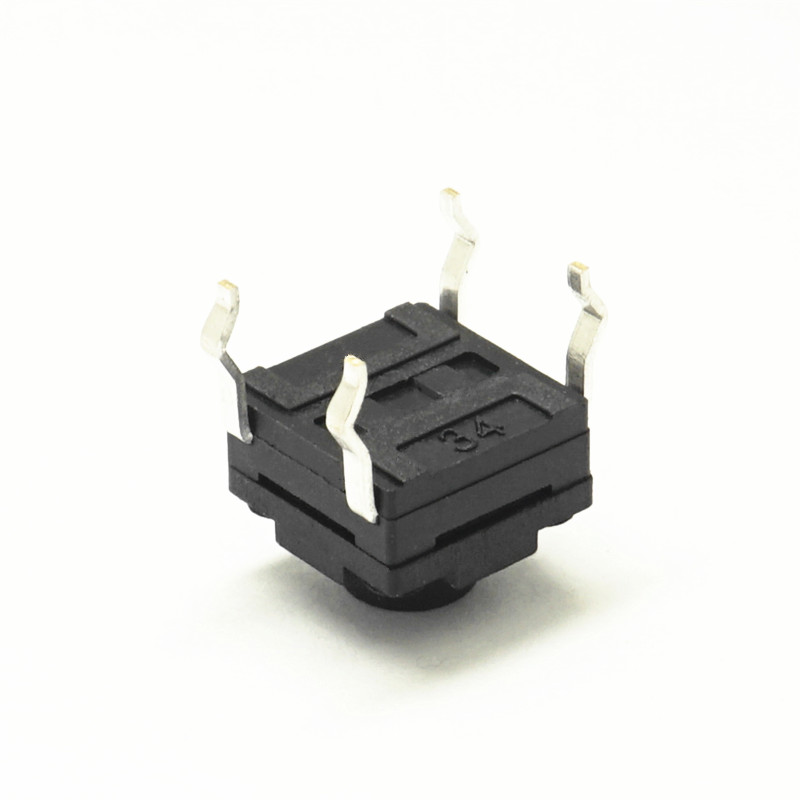

6*6 waterproof button switch DIP four-legged plug-in highly customized

  • Specification:6*6*H
  • Model:TC-1839DP
  • Package:1000PCS/bag
  • Life:100,000 times
6*6 button switch, DIP pin, waterproof grade IP67, operation life 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

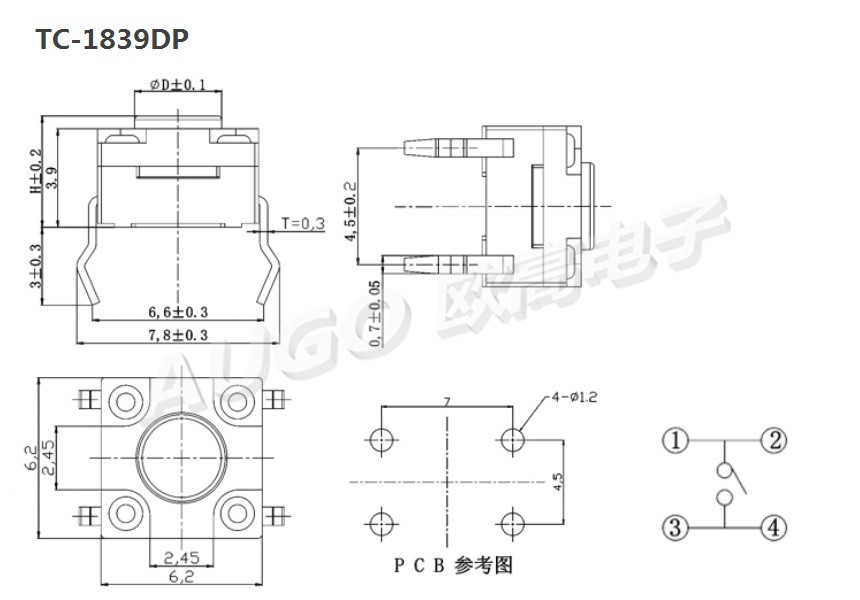

Dimensional drawings

6*6插脚防水轻触开关尺寸图
