Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

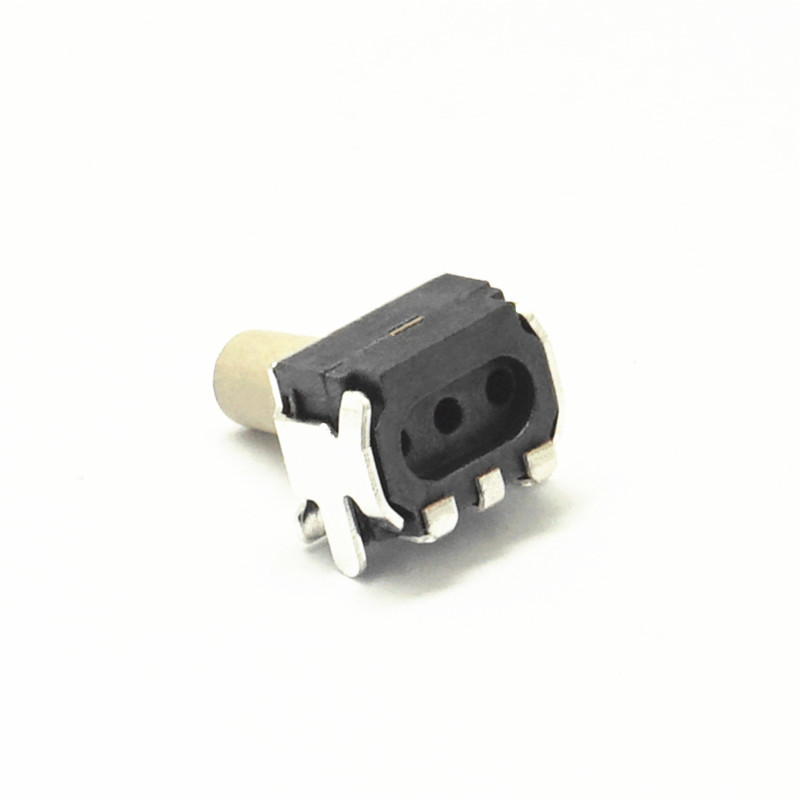

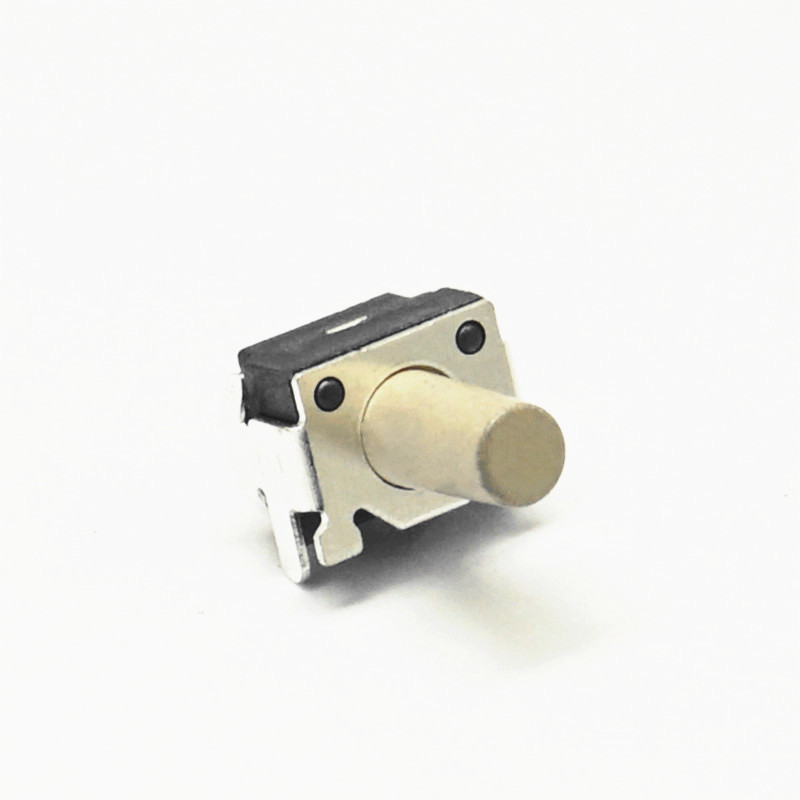

SMD side button switch Lengthen the handle 4*5 side press tact switch

  • Specification:4.55*2.55*5mm
  • Model:TD-604XB
  • Package:bagged
  • Life:50000cycles
4*5 light touch key switch, self-reset structure by side press, three-legged SMD, lengthened handle 5mm

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating  Force: 160gf±50gf
Lifetime: 50,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

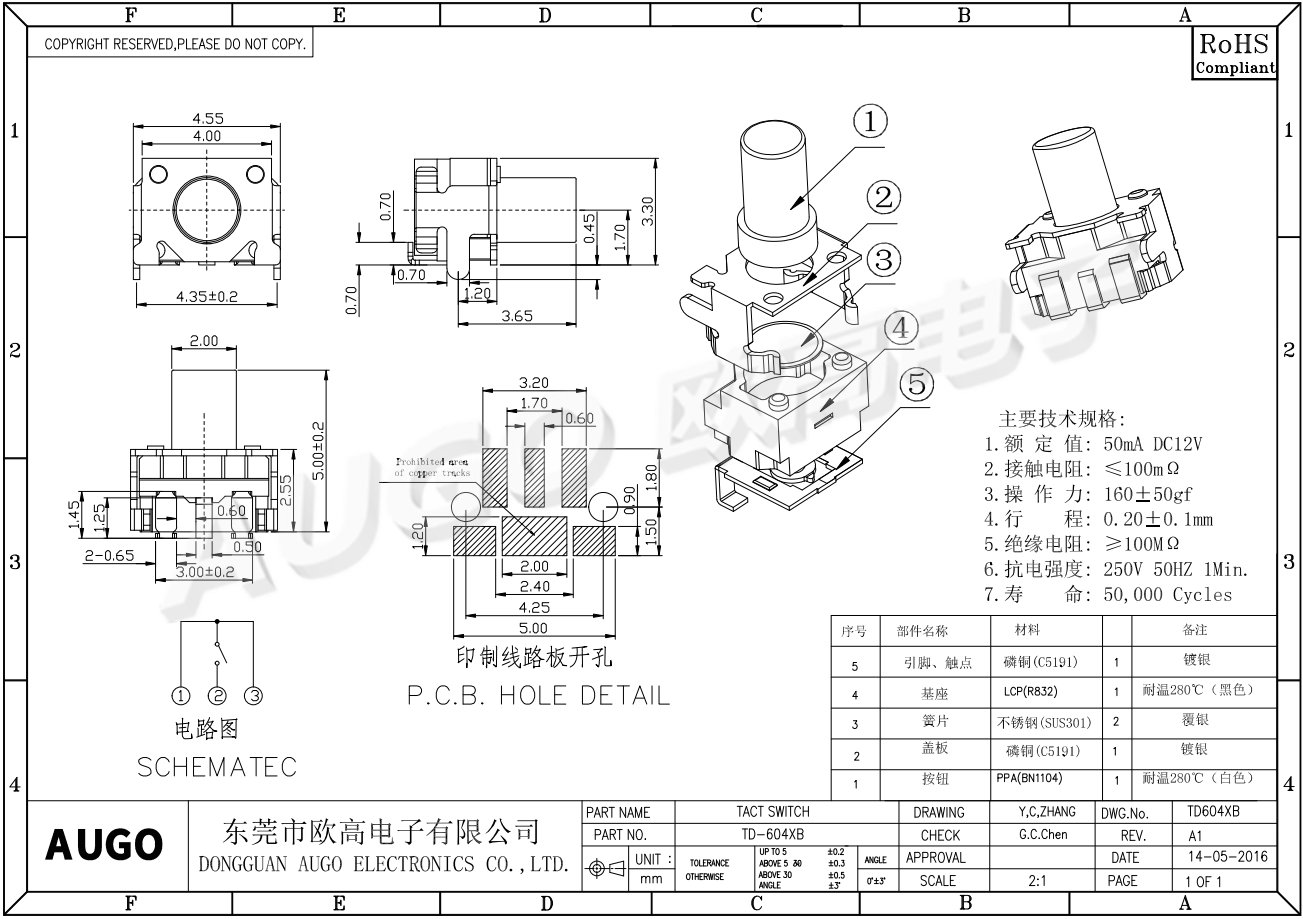

Dimensional drawings

4*5贴片侧按键开关加长柄尺寸图
