SK Toggle switch

Excellent quality, good service, very competitive price.

AUGO

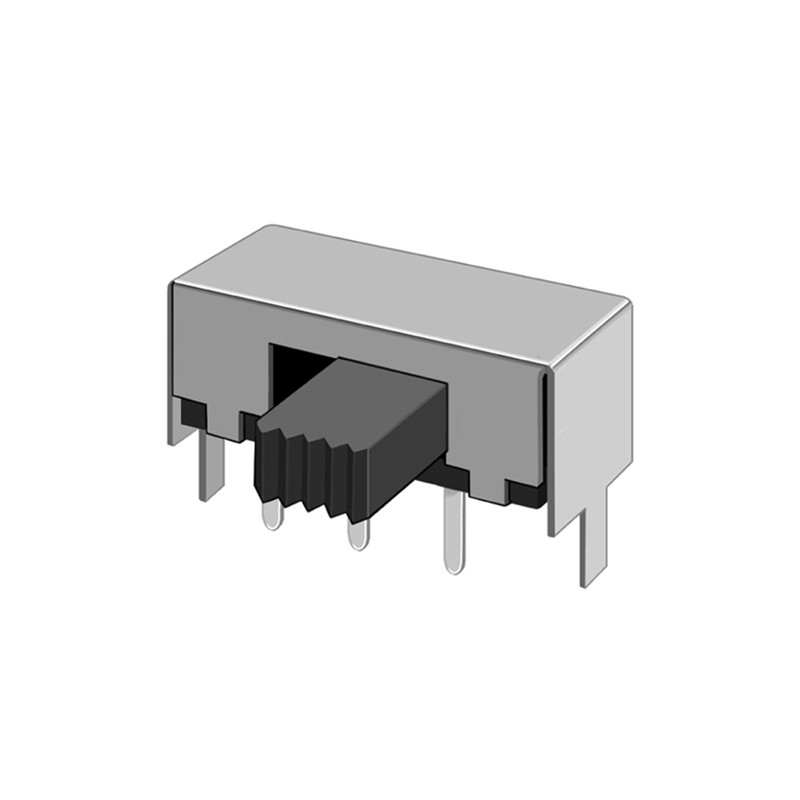

Sk toggle switch stroke 3mm

  • Specification:L12.9*W5.6*H6.0
  • Model:SK-12E12
  • Package:2000PCS/袋
  • Life:10000cycles
Product features:
1. High current terminal, clear gear sense, linear sliding type, dip solder pad pin.
2. The switch sound is crisp, with good hand feel and rhythm, and high sensitivity
3. Different terminal pin positions and different handle heights can be designed to meet customer requirements

Specification

Technical parameters:
Rated load: 0.3A 50V DC
Contact resistance: 30m Ω Max
Insulation resistance: 100M Ω min DC500v 1minute
Operating force: 250gf ~ 500gf
Service life: 10000 cycles
Time characteristic: non shorting
Salt spray test: 24h
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. It has a variety of overall dimension design
2. The switch sound is crisp, with good hand feel and rhythm, and high sensitivity
3. Different terminal pin positions and different handle heights can be designed to meet customer requirements

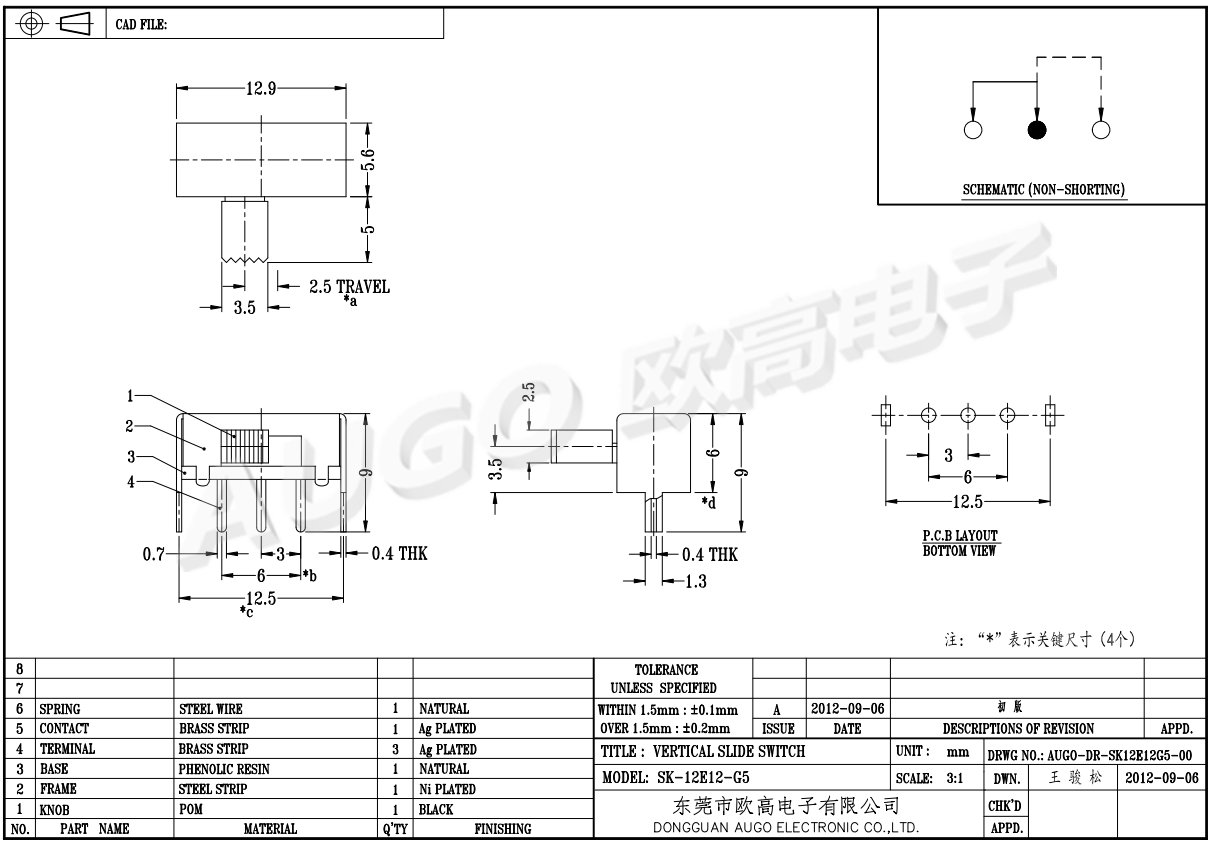

Dimensional drawings

3mm行程拨动开关尺寸图
