SS Toggle switch

Excellent quality, good service, very competitive price.

AUGO

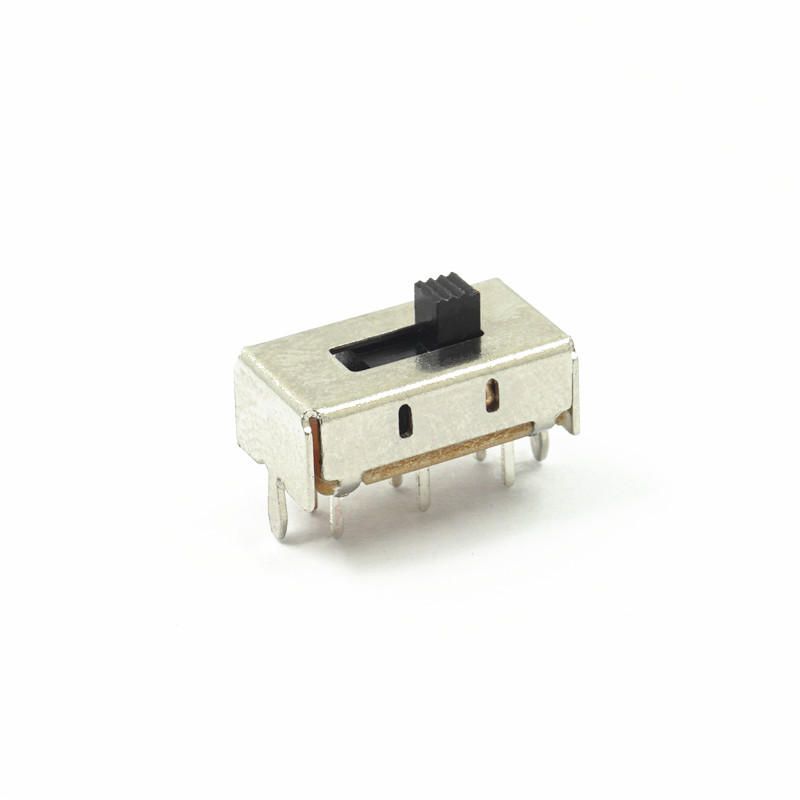

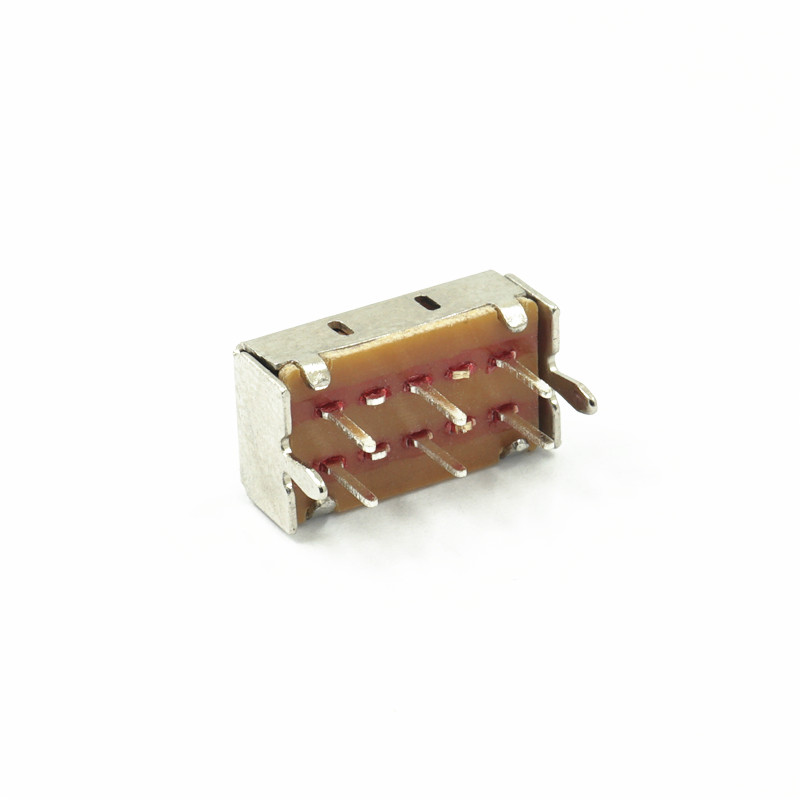

2p2t toggle switch

  • Specification:L12.7*W7.0*H4.7
  • Model:SS-22H06
  • Package:1000PCS/bag
  • Life:10000cycles
Scope of application:
It is suitable for audio-visual products, digital products, remote controls, communication products, household appliances, medical equipment and other fields

Specification

Technical parameters:
Rated load: 0.3A 50V DC
Contact resistance: 30m Ω Max
Insulation resistance: 100M Ω min DC500v 1minute
Operating force: 250gf ~ 500gf
Service life: 10000 cycles
Time characteristic: non shorting
Salt spray test: 24h
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. It has a variety of overall dimension design
2. The switch sound is crisp, with good hand feel and rhythm, and high sensitivity
3. Different terminal pin positions and different handle heights can be designed to meet customer requirements

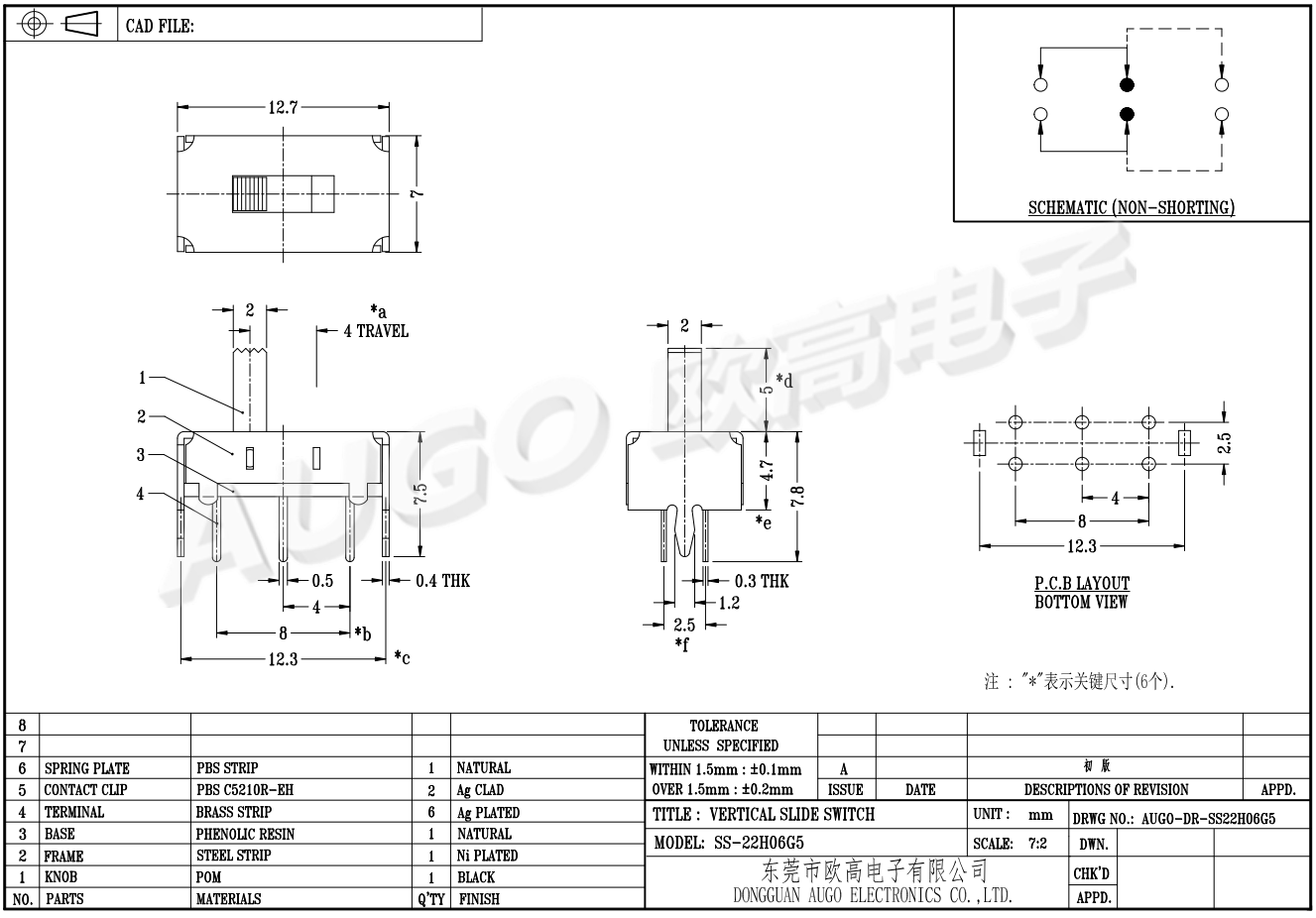

Dimensional drawings

2P2T拨动开关尺寸图
