Type-C female 24P

Excellent quality, good service, very competitive price.

AUGO

Type-C socket 24pin

  • Specification:
  • Model:TYPE-C 24PIN
  • Package:
  • Life:5000cycles

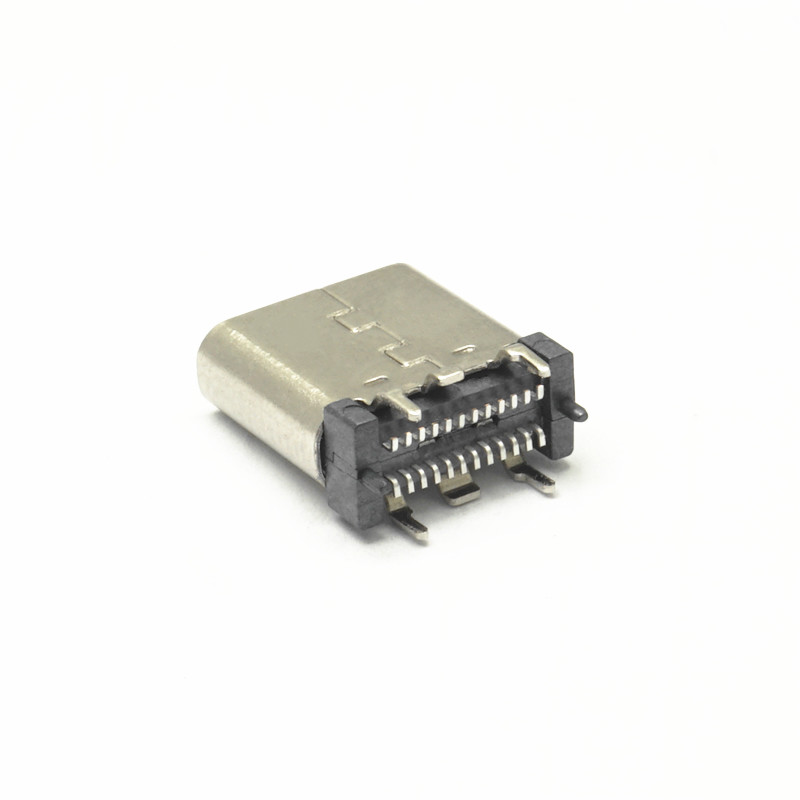

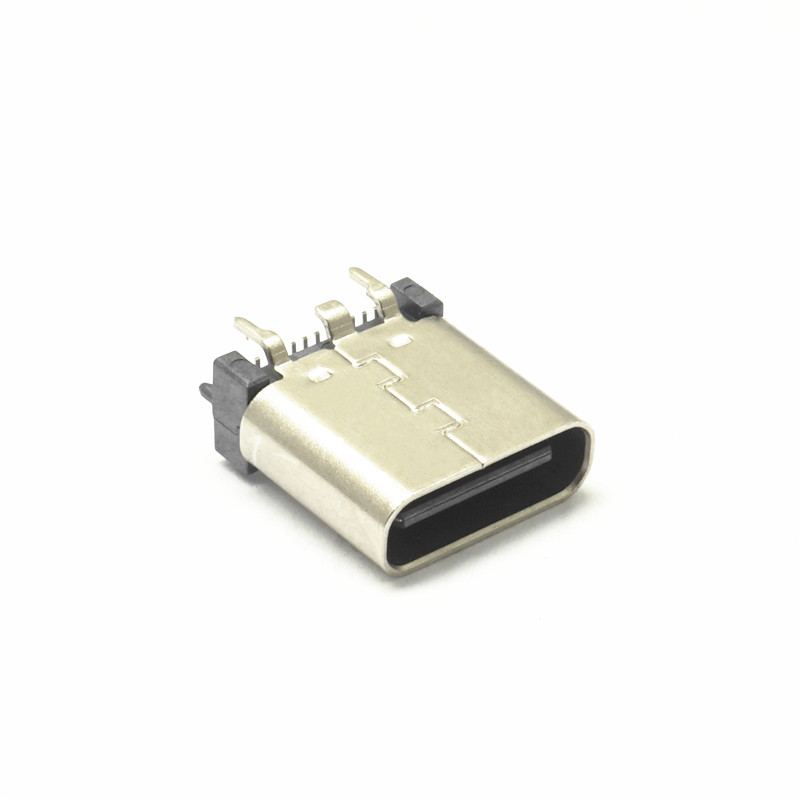

Type-C socket 24pin vertical tape post

Specification

Technical parameters:
Rated voltage: 30V DC
Rated current: see the product specification for details
Insertion force: 3.57 KGF max
Pull out force: 1.02 KGF min
Contact impedance: 30 m Ω max
Insulation impedance: 100 m Ω min
Withstand voltage: 100V AC at
Holding force: 1.2 KGF min
Ambient temperature: - 30 ℃ ~ 80 ℃

Product features:
1. It has a type / B type / mini / micro male and female seat and other types of interface design
2. Dip / SMT / clamp type / welding type are available for installation
3. Meet the temperature resistance requirements of various welding equipment
Scope of application: digital products, portable devices, computers, communication products, security products, etc

Dimensional drawings

AUGO advantage

Application field
