Type-C female 6p

Excellent quality, good service, very competitive price.

AUGO

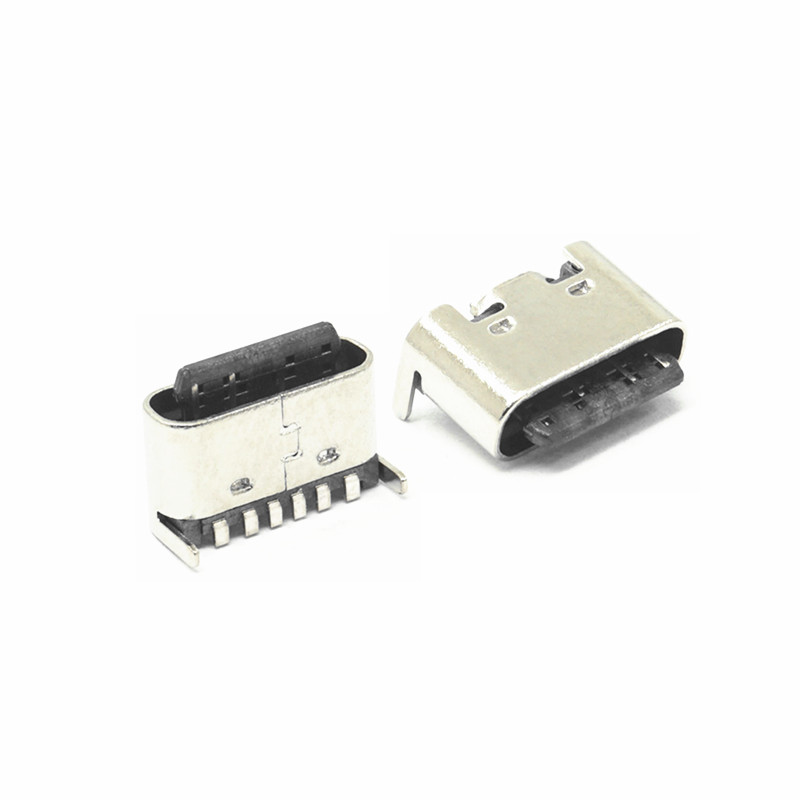

Type-C 6pin female seat horizontal SMD

  • Specification:L8.94*W5.0*H3.16
  • Model:Type-C 6PIN
  • Package:1000PCS/plate
  • Life:3000cycles
Type-C 6pin female base short body horizontal SMD L = 5.0 / 5.5mm

Specification

Technical parameters:
Rated voltage: 30V DC
Rated current: see the product specification for details
Insertion force: 3.57 KGF max
Pull out force: 1.02 KGF min
Contact impedance: 30 m Ω max
Insulation impedance: 100 m Ω min
Withstand voltage: 100V AC at
Holding force: 1.2 KGF min
Ambient temperature: - 30 ℃ ~ 80 ℃

Product features:
1. It has a type / B type / mini / micro male and female seat and other types of interface design
2. Dip / SMT / clamp type / welding type are available for installation
3. Meet the temperature resistance requirements of various welding equipment
Scope of application: digital products, portable devices, computers, communication products, security products, etc

Dimensional drawings

Type-C 6PIN母座卧贴L5.0尺寸图
