DIP DC socket

Excellent quality, good service, very competitive price.

AUGO

DC power socket with threaded nut

  • Specification:
  • Model:DC-025CM
  • Package:500PCS/bag
  • Life:5000cycles
Dc-025cm power socket, with threaded nut, can be fixed on the panel, high current 3a, three pin terminal welding plate, pure copper, meets RoHS & reach environmental protection requirements, and is suitable for 55 series power plugs.

Specification

Technical parameters:
Rated load: 1A 30V DC
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min
Operating force: 3 ~ 20n
Service life: 5000cycles
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. Structural design with different specifications such as AC97 and HDA
2. The contact terminal adopts elastic structure design to ensure good contact stability and long service life
3. Elastic terminals are made of imported materials to ensure the service life and electrical performance of elastic parts
4. Dip and SMT are available for installation
5. Output products with different functions can be designed according to customer requirements

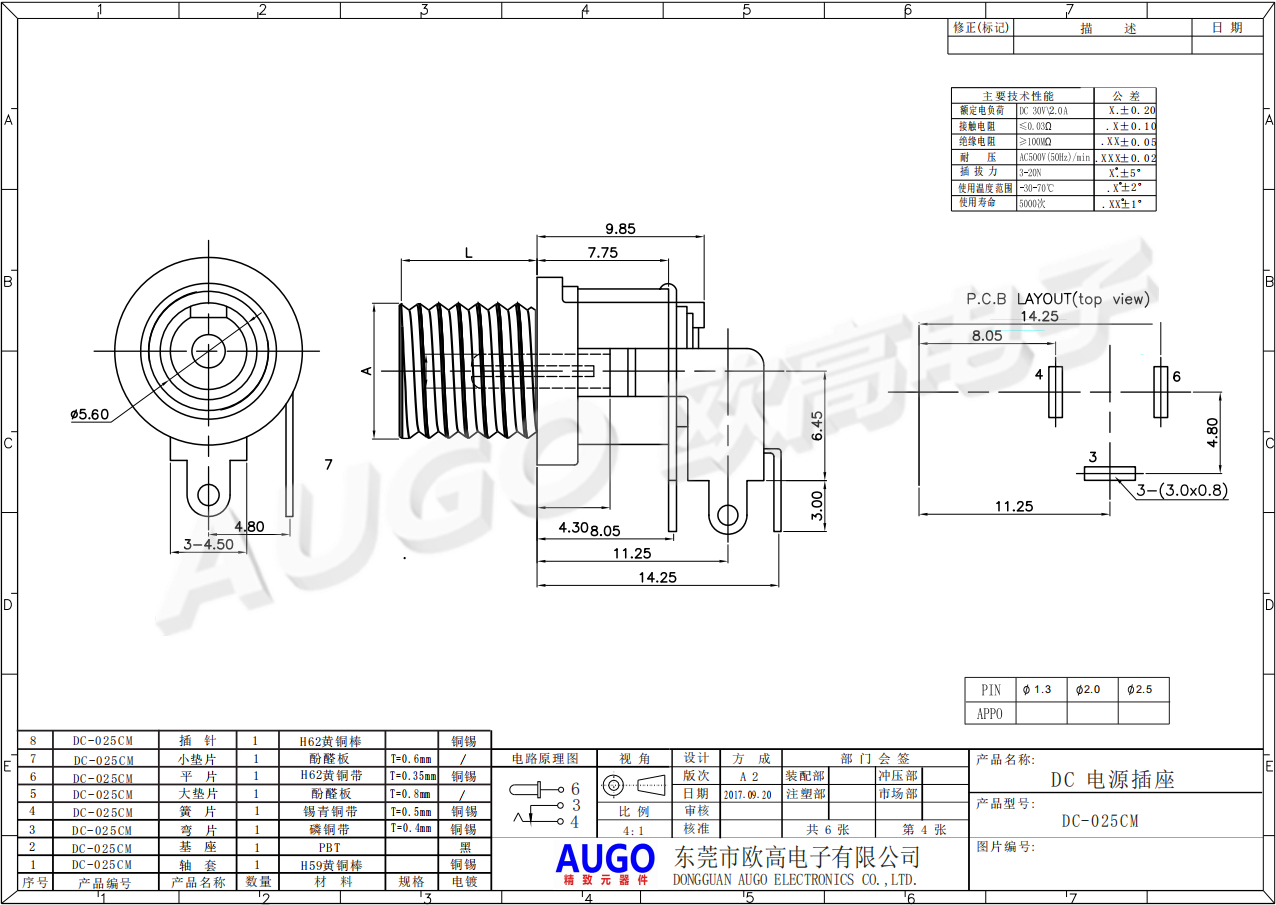

Dimensional drawings

DC电源插座 DC-025CM 尺寸图
