DIP DC socket

Excellent quality, good service, very competitive price.

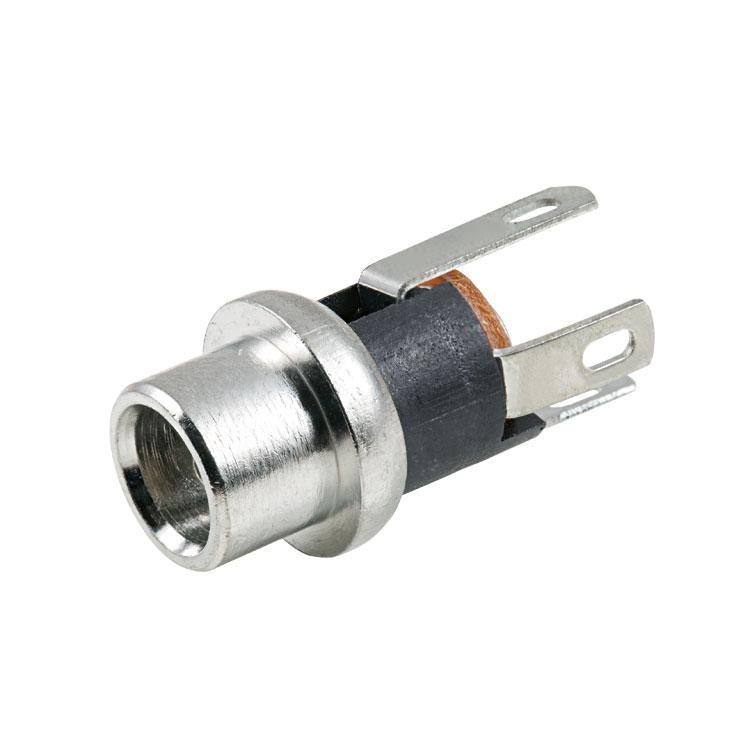

High current power socket

  • Specification:
  • Model:DC-025
  • Package:500PCS/bag
  • Life:5000cycles
Dc-025 power socket, high current 3a, terminal pluggable board, solderable wire, pure copper, meeting RoHS & reach environmental protection requirements, suitable for 55 series power plugs.


Technical parameters:
Rated load: 1A 30V DC
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min
Operating force: 3 ~ 20n
Service life: 5000cycles
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. Structural design with different specifications such as AC97 and HDA
2. The contact terminal adopts elastic structure design to ensure good contact stability and long service life
3. Elastic terminals are made of imported materials to ensure the service life and electrical performance of elastic parts
4. Dip and SMT are available for installation
5. Output products with different functions can be designed according to customer requirements

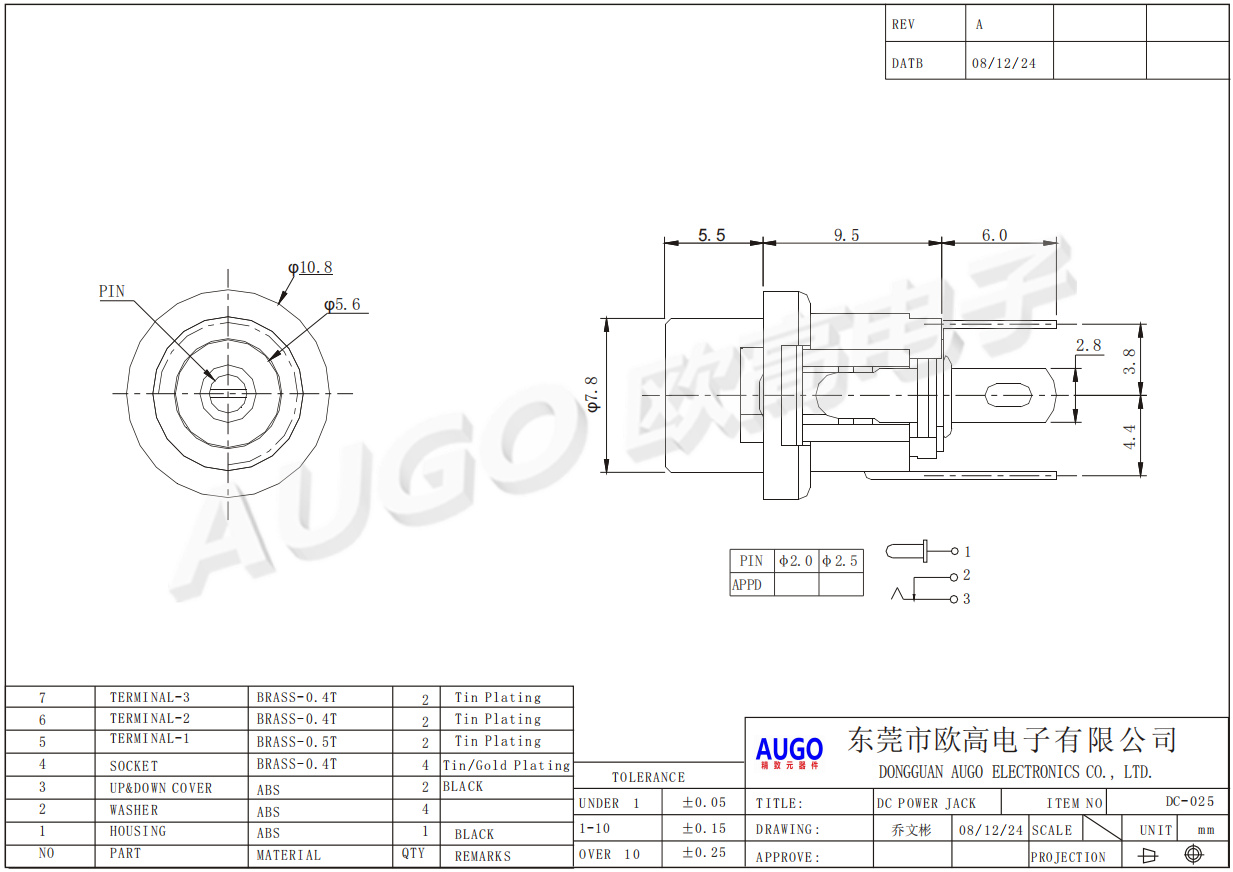

Dimensional drawings

电源插座 DC-025尺寸图
