DIP DC socket

Excellent quality, good service, very competitive price.

AUGO

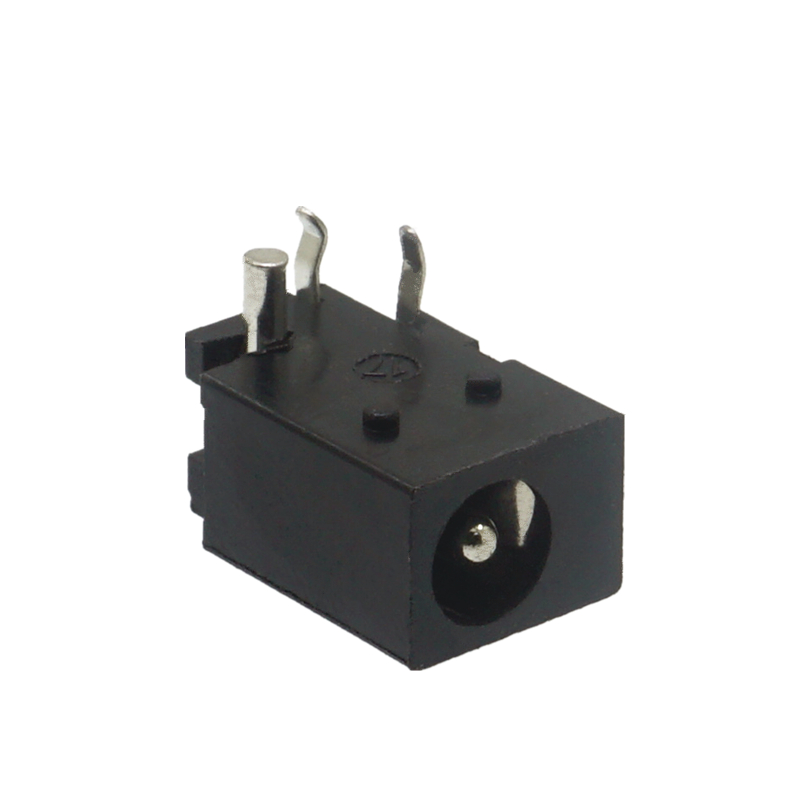

Three pin horizontal PCB socket

  • Specification:12.5*8.2*6.0
  • Model:DC-023A
  • Package:500PCS/bag
  • Life:5000cycles
Dc-023a power socket, three pin plug board, horizontal PCB socket, high current DC socket, suitable for 3517 power plug.

Specification

Technical parameters:
Rated load: 1A 30V DC
Contact resistance: 100M Ω Max
Insulation resistance: 100M Ω min
Operating force: 3 ~ 20n
Service life: 5000cycles
Service temperature: - 25 ℃ ~ 80 ℃
Ambient humidity: ≤ 85% RH

Product features:
1. Structural design with different specifications such as AC97 and HDA
2. The contact terminal adopts elastic structure design to ensure good contact stability and long service life
3. Elastic terminals are made of imported materials to ensure the service life and electrical performance of elastic parts
4. Dip and SMT are available for installation
5. Output products with different functions can be designed according to customer requirements

Dimensional drawings

DC-023A 电源插座尺寸图
