Male Connector

Excellent quality, good service, very competitive price.

AUGO

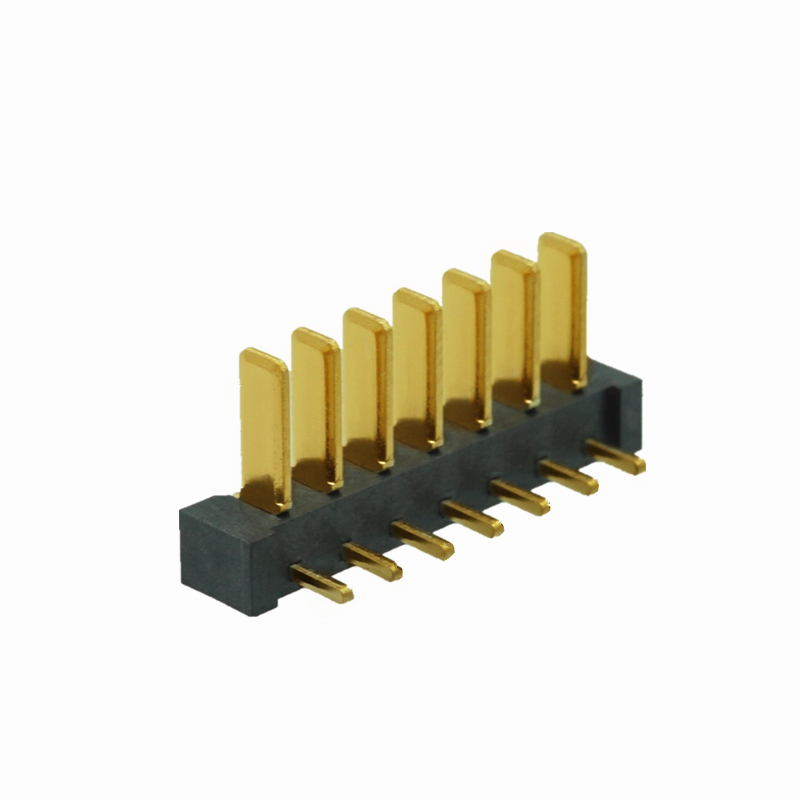

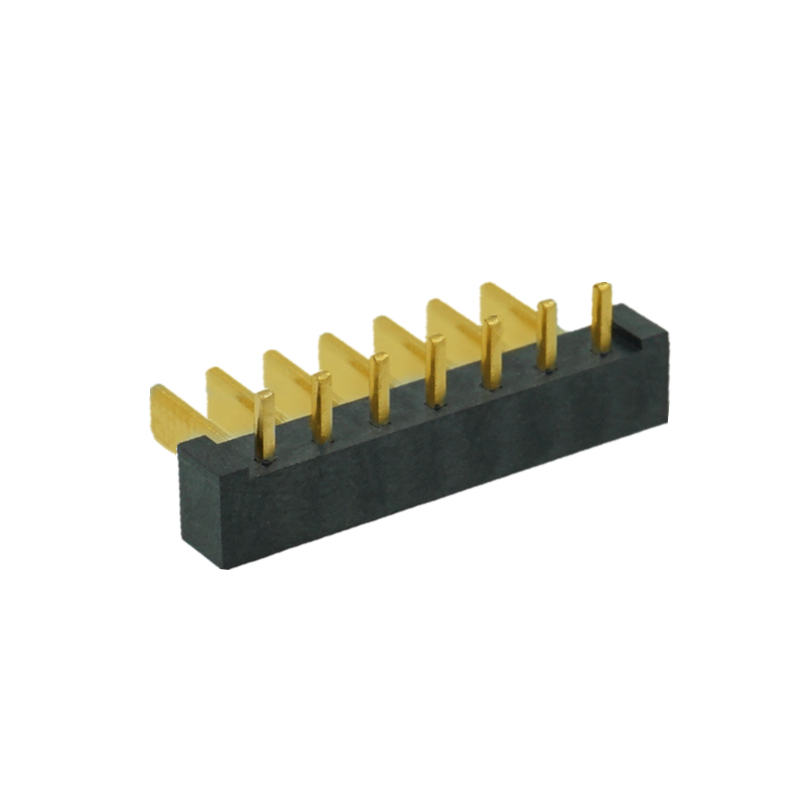

Vacuum cleaner power connector

  • Specification:W9.0*H4.0
  • Model:AUGO-B07M-B
  • Package:Bagged
  • Life:5000cycles
90 ° bent leg dip, spacing of 2.5mm, pin length of 6.0mm and on board height of 4.0mm

Specification

Technical parameters:
Insulation body: LCP (UL94V-0)
Hardware Conductor: phosphor copper C5191 / brass C2680
Surface coating: gold is above nickel / tin, and the coating thickness is 2U ″
Insulation resistance: 100M Ω min
Contact resistance: 30m Ω Max
Rated current: 3A / pin
Instantaneous current: 5A / pin
Rated voltage: 30V DC
Operating temperature: - 30 ℃ ~ 105 ℃
Withstand voltage: 500V
High temperature resistance: 260 ℃ / 5S
Salt spray test: 48H
Working life: 5000cycles
Scope of application: notebook, vacuum cleaner, UAV, intelligent lock, tachograph, digital camera and various lithium battery protection boards.

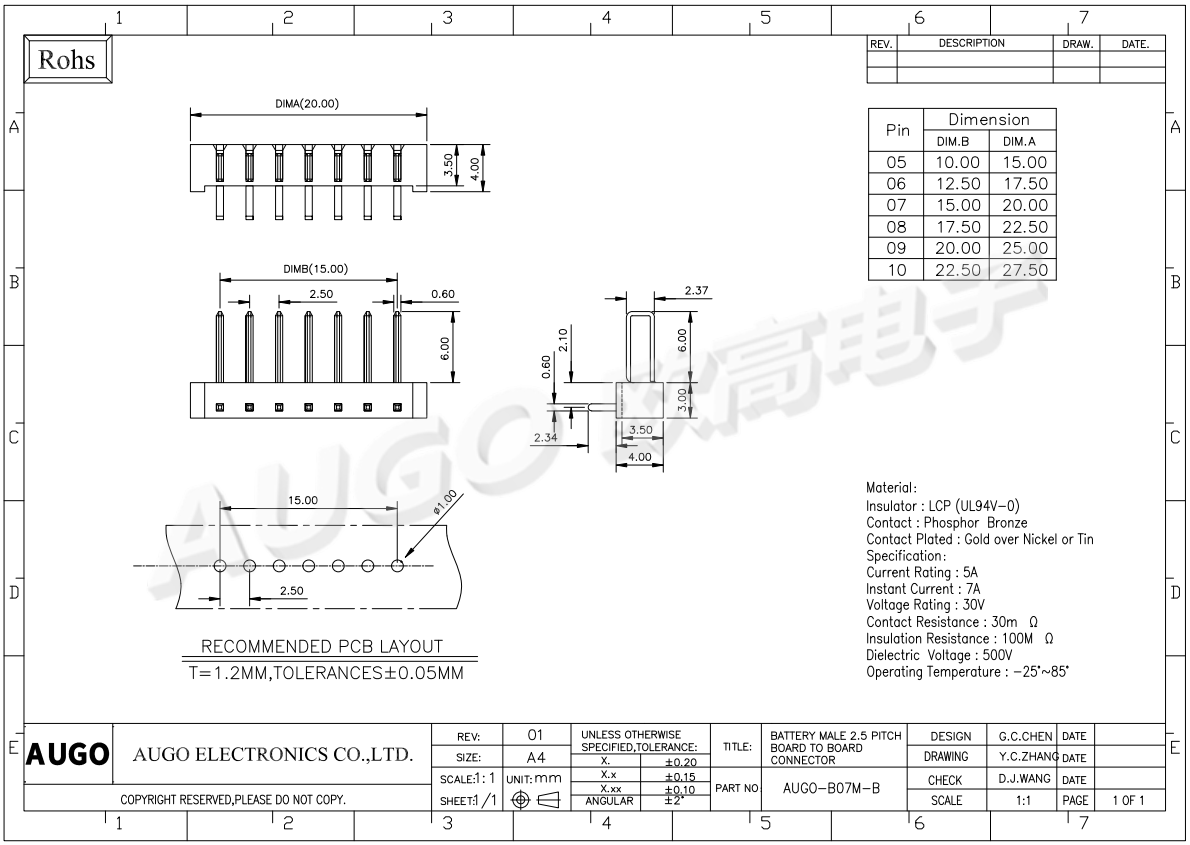

Dimensional drawings

吸尘器电源连接器尺寸图
