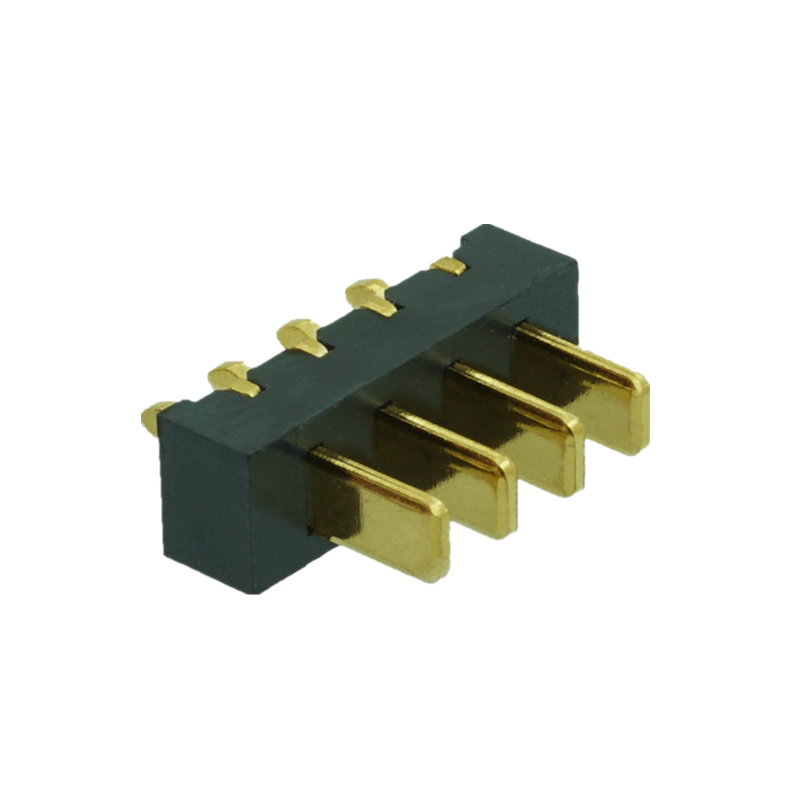

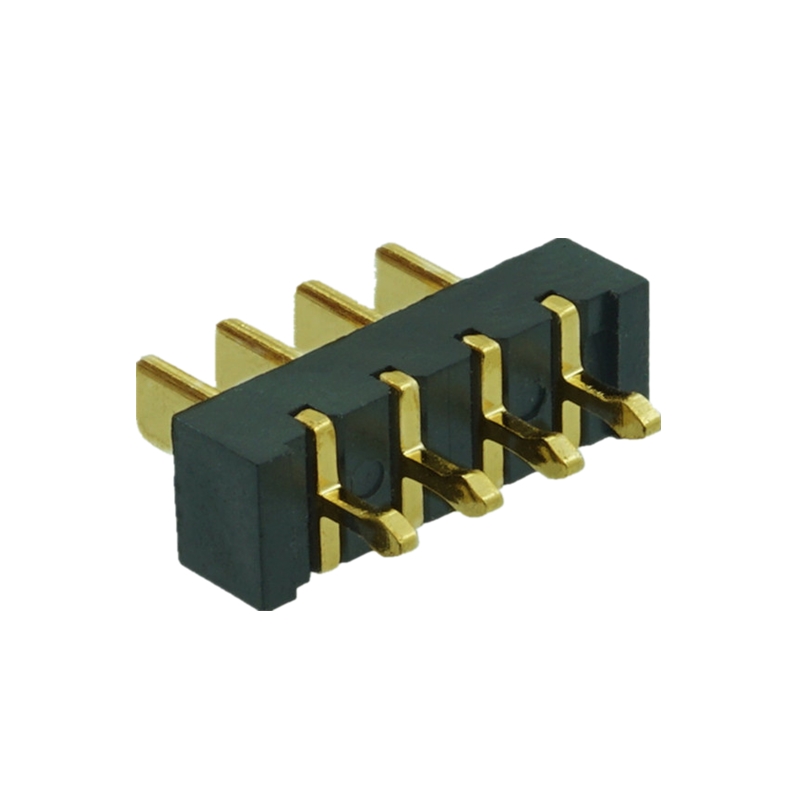

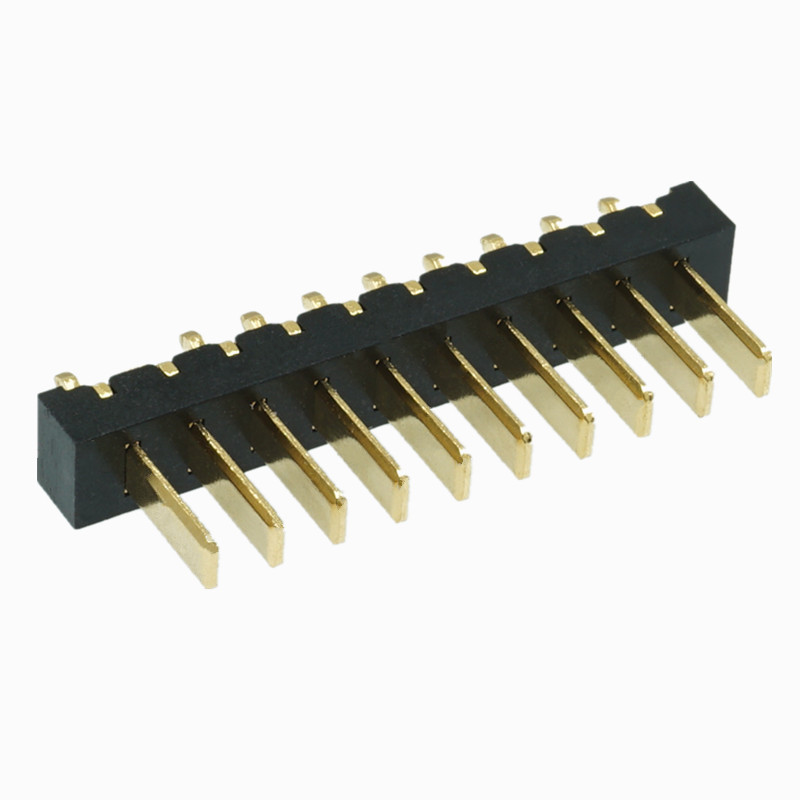

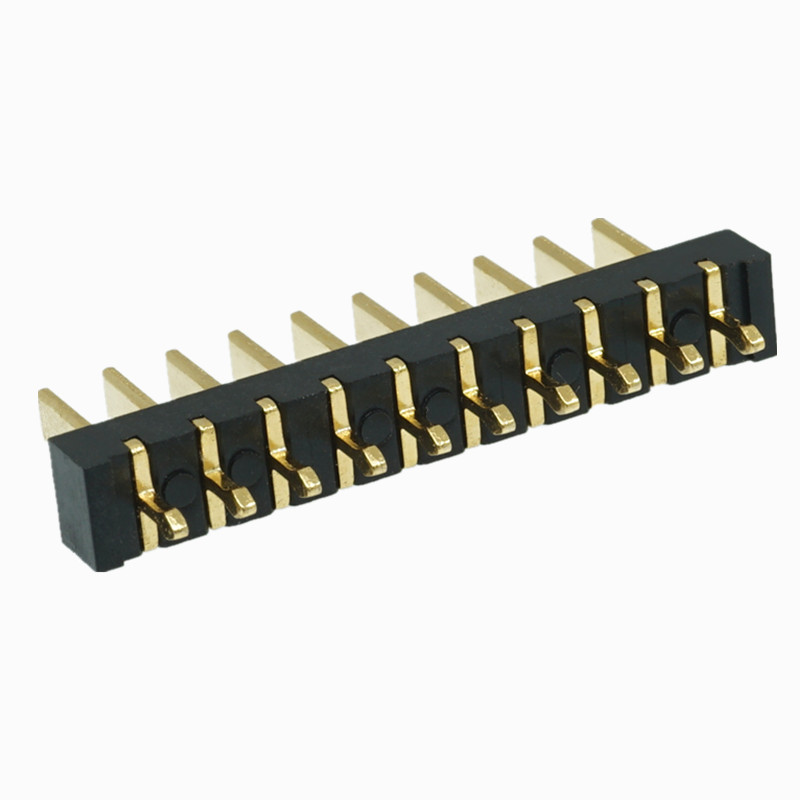

Straight pin battery connector

  • Specification:W4.0*H7.2
  • Model:AUGO-B01M-R1-A
  • Package:Bagged
  • Life:5000cycles
180 ° straight pins, 2.5mm spacing, 7.2mm on board height, 4.2mm pin length, 3-12pin for design selection

Specification

Technical parameters:
Insulation body: LCP (UL94V-0)
Hardware Conductor: phosphor copper C5191 / brass C2680
Surface coating: gold is above nickel / tin, and the coating thickness is 2U ″
Insulation resistance: 100M Ω min
Contact resistance: 30m Ω Max
Rated current: 3A / pin
Instantaneous current: 5A / pin
Rated voltage: 30V DC
Operating temperature: - 30 ℃ ~ 105 ℃
Withstand voltage: 500V
High temperature resistance: 260 ℃ / 5S
Salt spray test: 48H
Working life: 5000cycles
Scope of application: notebook, vacuum cleaner, UAV, intelligent lock, tachograph, digital camera and various lithium battery protection boards.

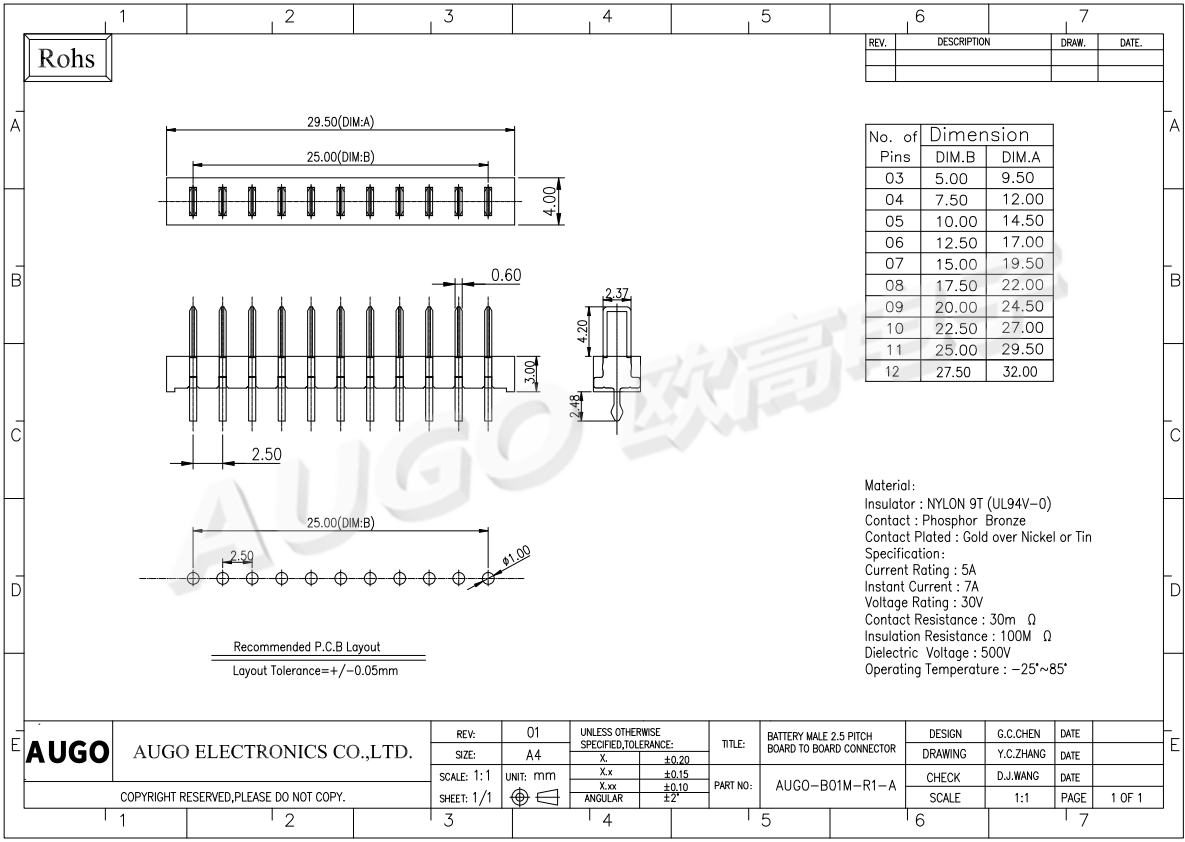

Dimensional drawings

2.5mm间距电池连接器尺寸图
