Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

Double bracket tact switch Double circuit switch High bracket DIP pin

  • Specification:8.9*8.21*13.6
  • Model:TC-0550
  • Package:500PCS/bag
  • Life:100,000 times
6*6 double bracket tact switch, double circuit design, DIP pins, the length of the handle can be customized

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

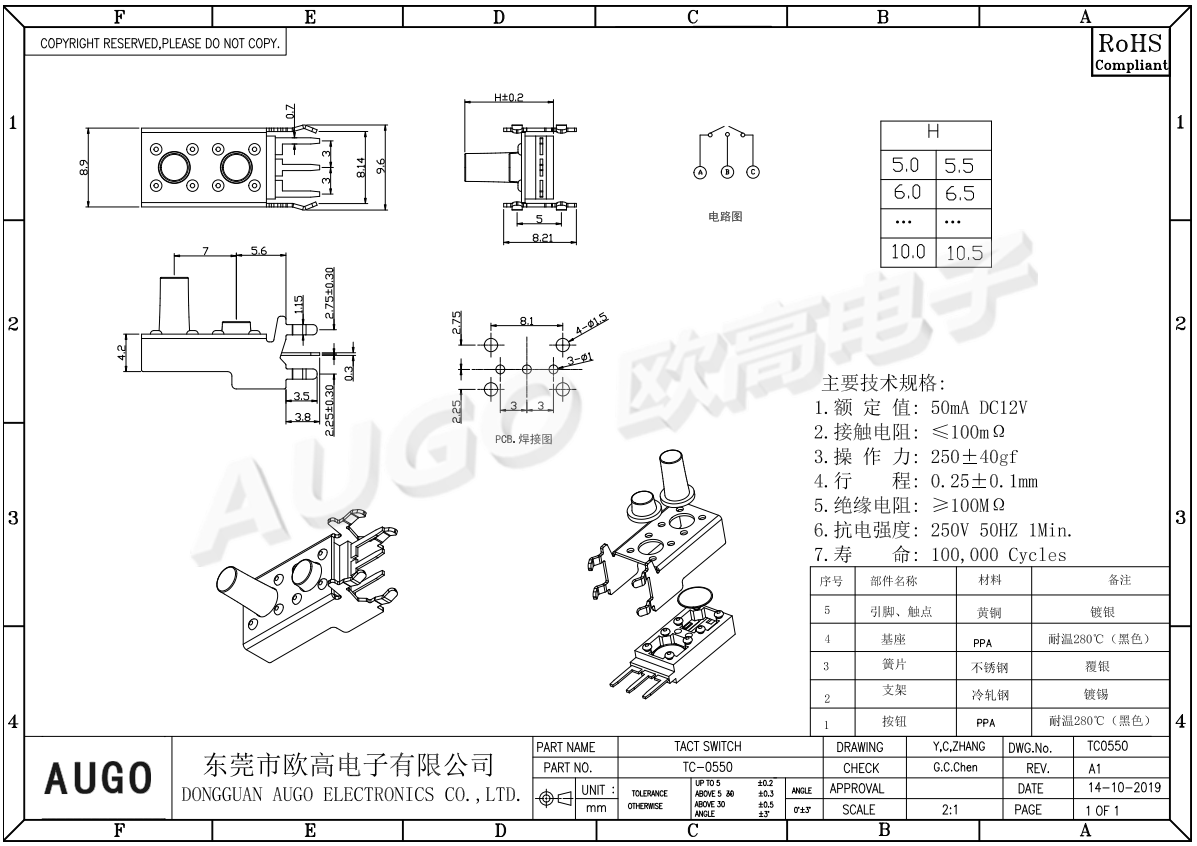

Dimensional drawings

6*6双联支架轻触开关尺寸图
