Middle two feet waterproof light touch key switch 6*6 waterproof switch highly customizable

  • Specification:6*6*H
  • Model:TC-1150W
  • Package:1000PCS/disk
  • Life:100,000 times
6*6 waterproof light touch key switch, middle two feet, the length of the handle can be customized

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

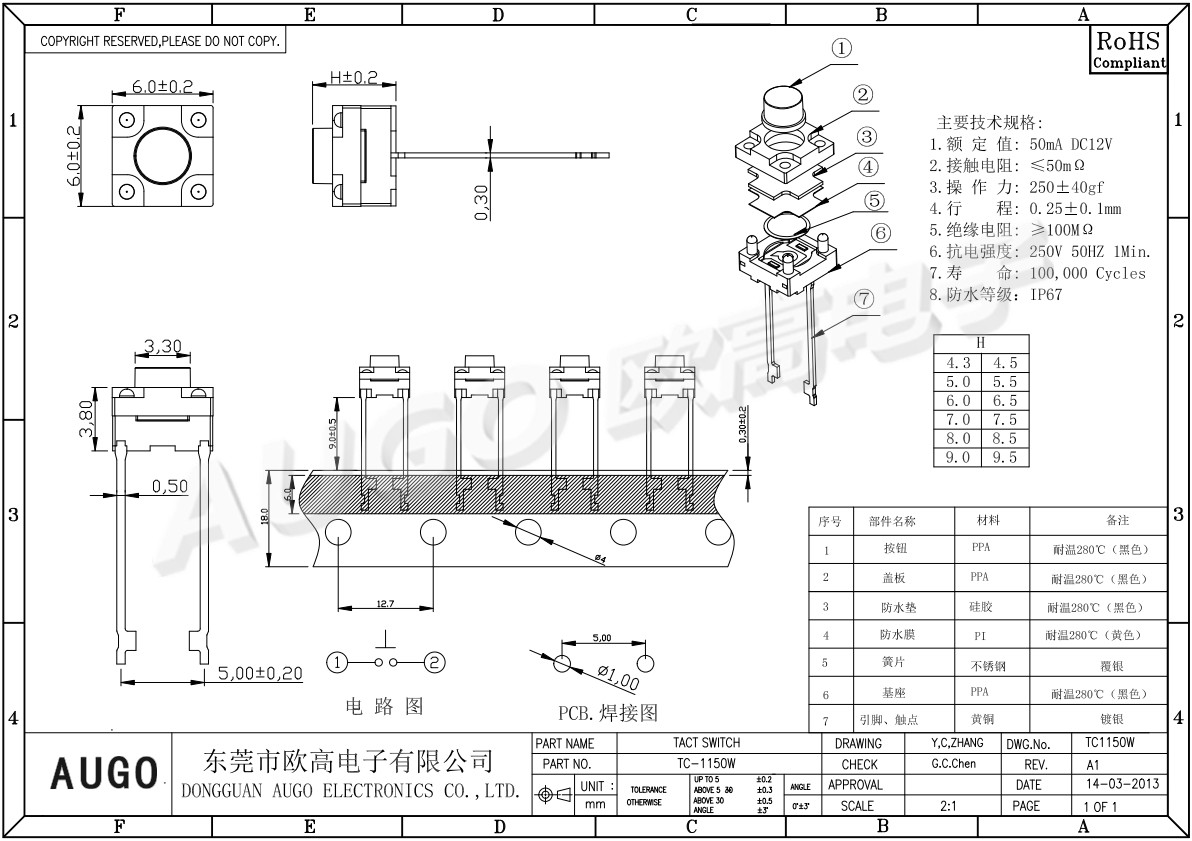

Dimensional drawings

中二脚防水轻触开关尺寸图
