Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

DIP four-leg tact switch, waterproof grade IP67, height 4.3-9.5mm

  • Specification:6*6*H
  • Model:TC-1839DP
  • Package:1000PCS/bag
  • Life:100,000 times
6*6 waterproof key switch, four-pin DIP plug-in, the length of the handle can be customized

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Waterproof grade: IP67
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

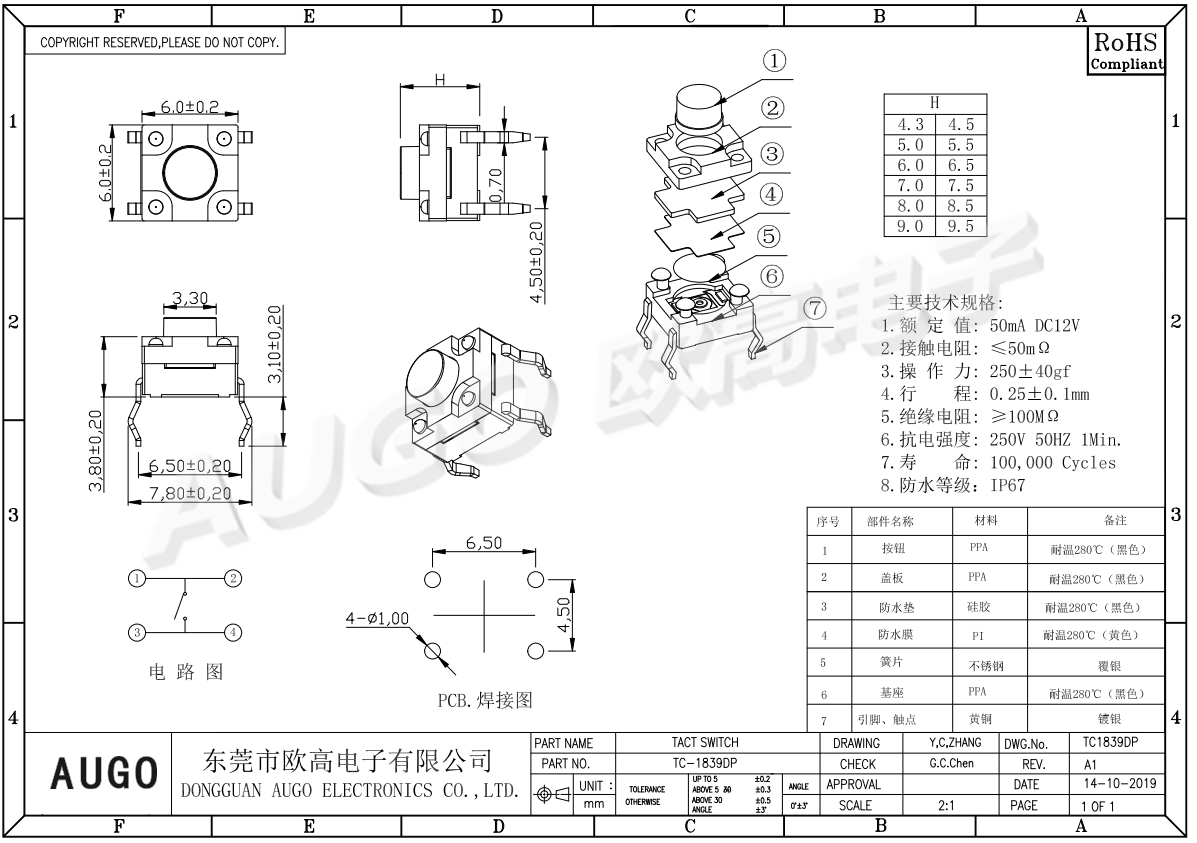

Dimensional drawings

6*6防水按键开关尺寸图
