12*12 waterproof key switch, highly customizable, waterproof grade IP67

  • Specification:12*12*H
  • Model:TC-1841DP
  • Package:500PCS/bag
  • Life:100,000 times
12*12 waterproof key switch, four-pin DIP plug-in, the length of the handle can be customized

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Waterproof grade: IP67
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

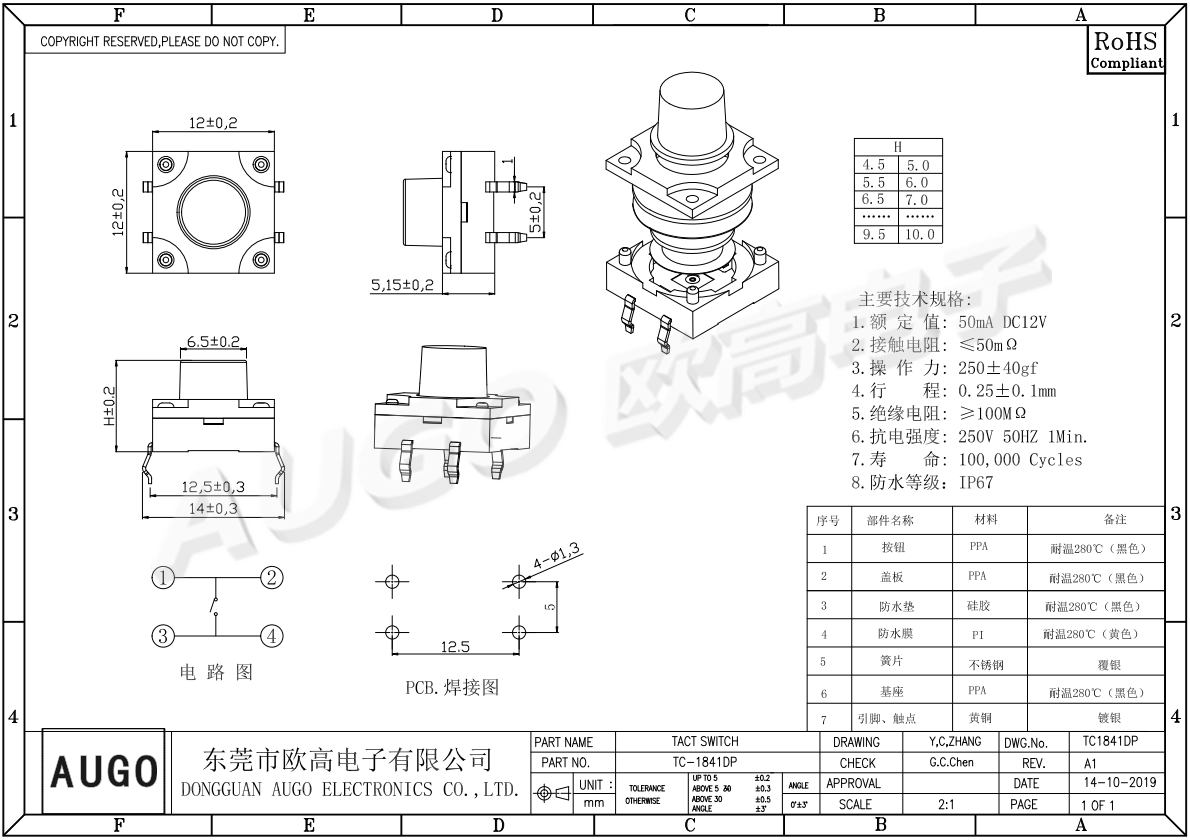

Dimensional drawings

12*12防水按键开关尺寸图
