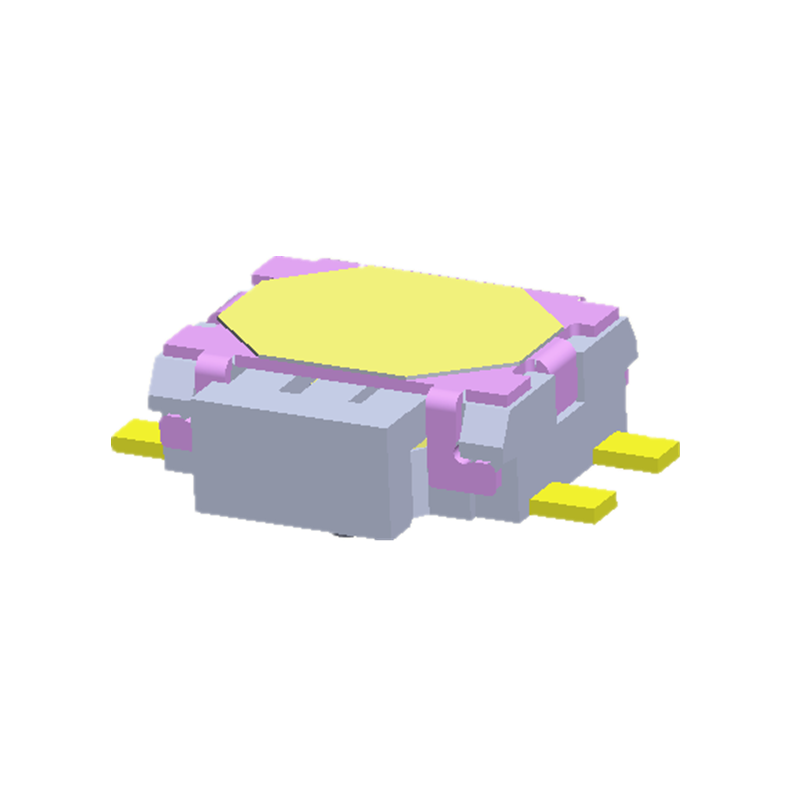

Ultra-thin side push tact switch 4.6*4.7*1.6H four-legged patch

  • Specification:4.6*4.7*1.6H
  • Model:TD-26EA
  • Package:3000PCS/disk
  • Life:50,000 times
Ultra-thin side-touch light-touch key switch, four-legged patch, lifespan 50,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 50,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

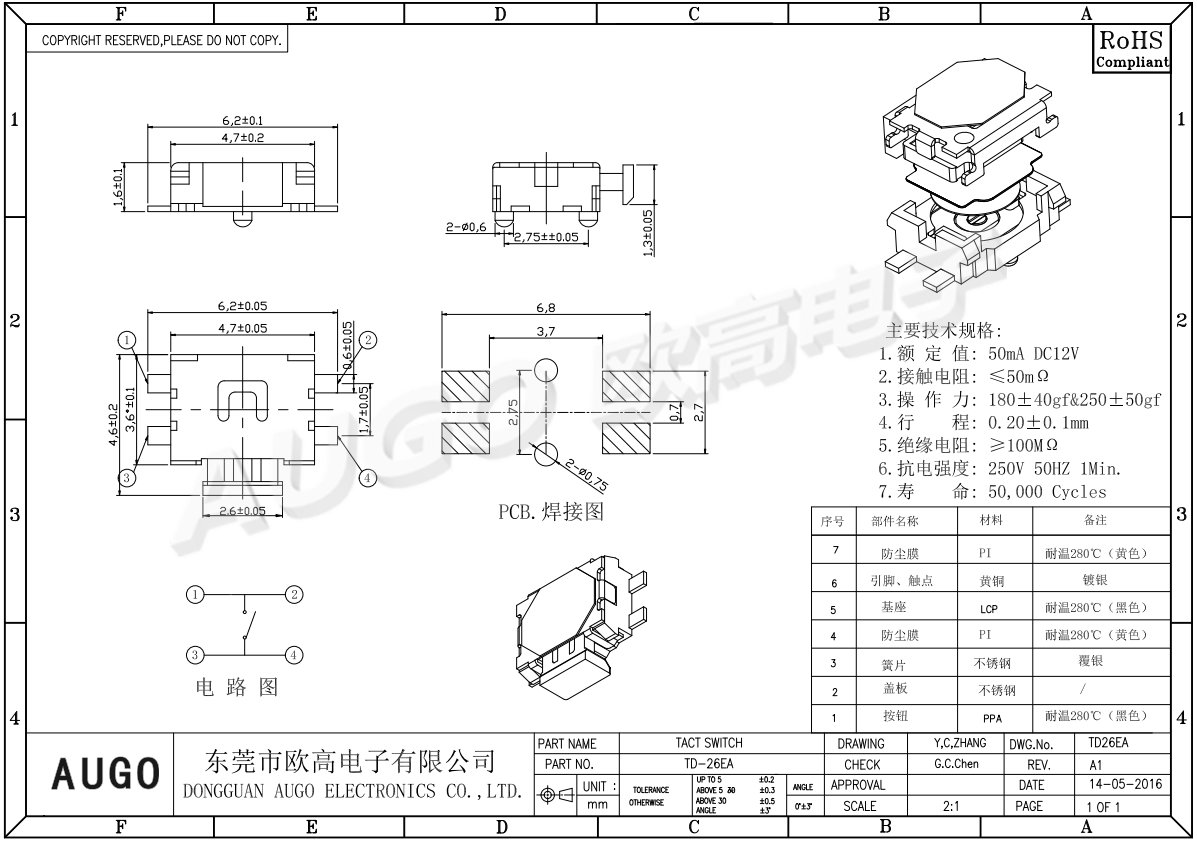

Dimensional drawings

超薄侧按轻触开关尺寸图
