Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

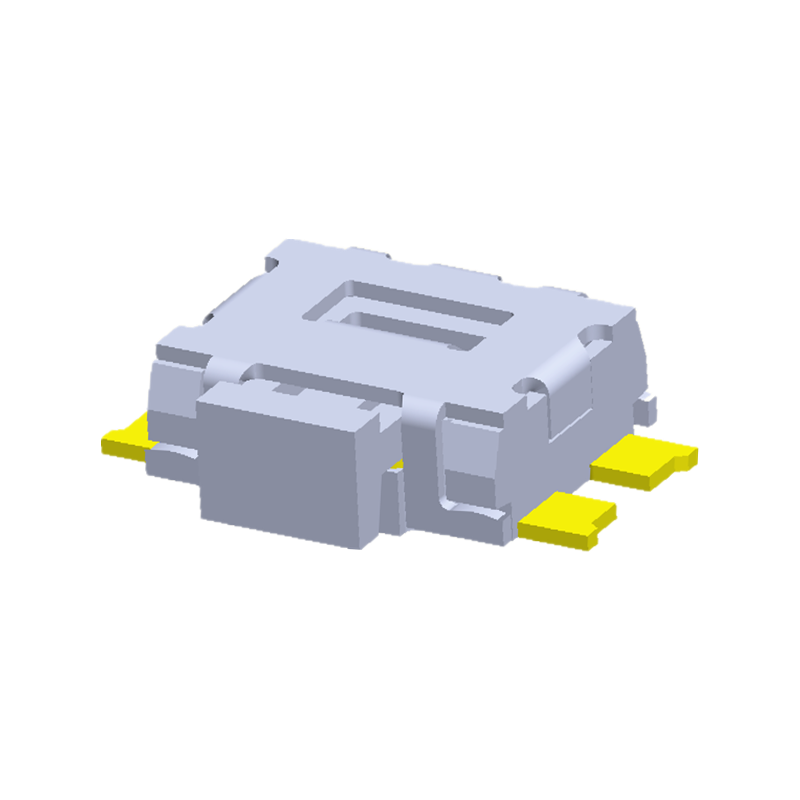

Ultra-thin 1.3mm side push tact switch 3.6*3.5*1.3H four-legged patch

  • Specification:3.6*3.5*1.3H
  • Model:TD-66EA
  • Package:4000PCS/disk
  • Life:50,000 times
1.3mm ultra-thin side-press tact switch, four-legged patch, lifespan 50,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

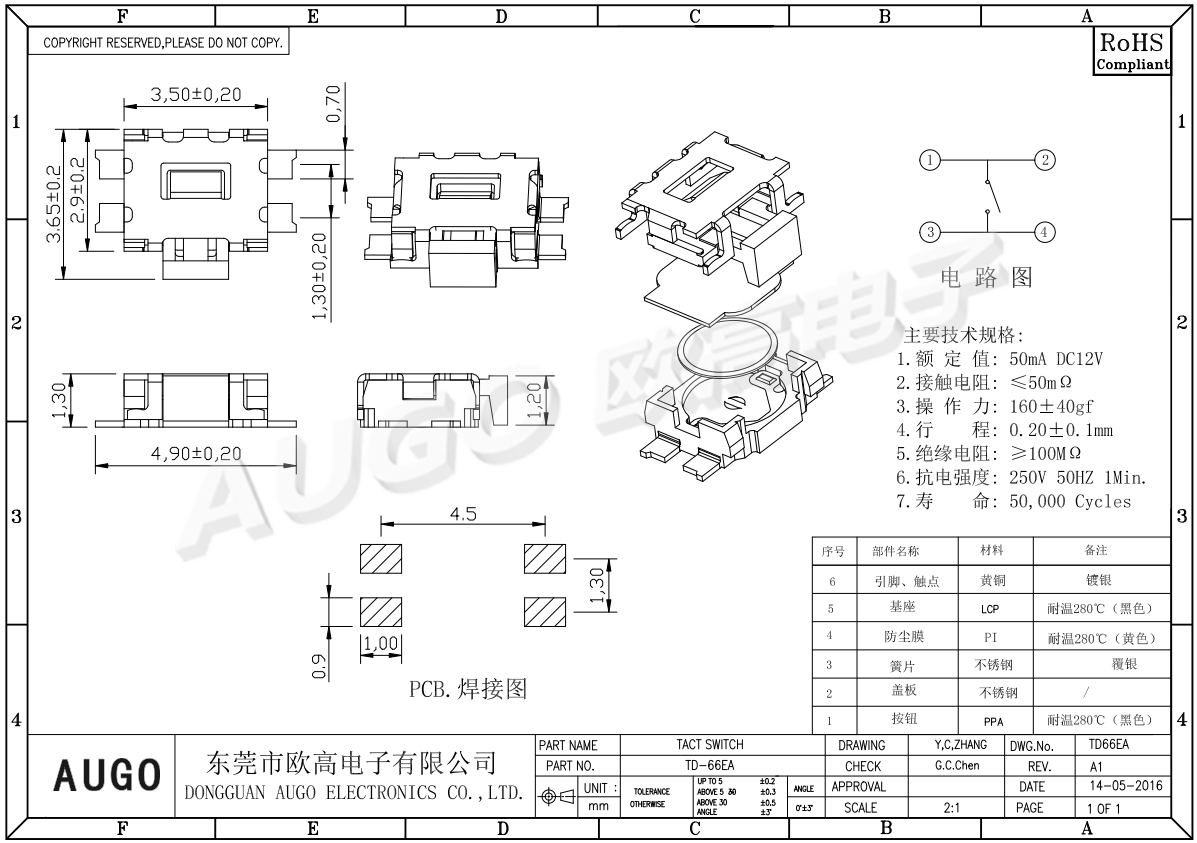

Dimensional drawings

微型侧按键开关尺寸图
