Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

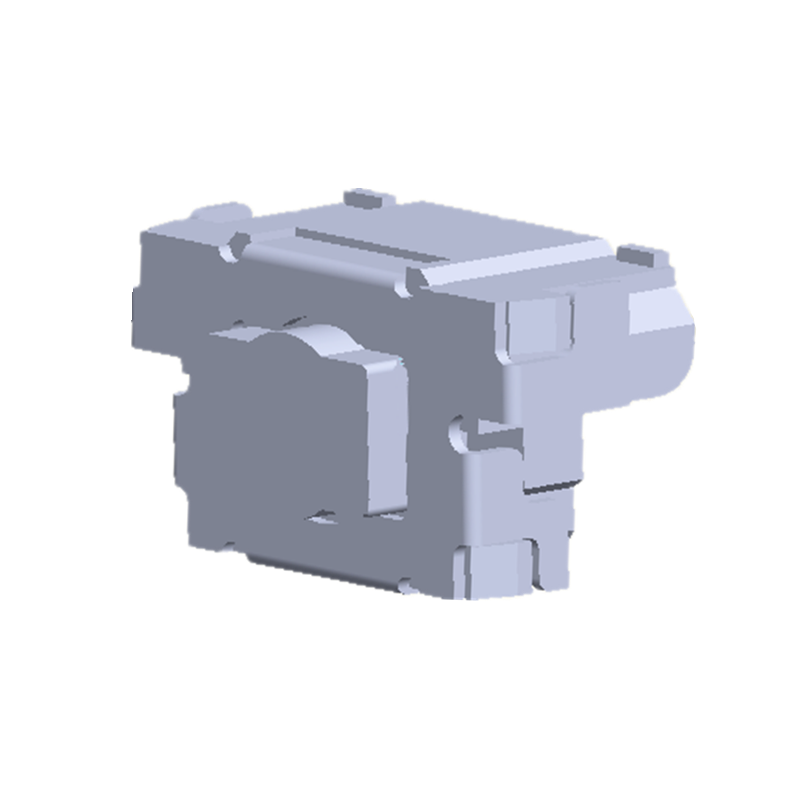

3*6*3.1 sink plate type side key switch plum blossom handle

  • Specification:L6.1*W3.5*H3.1
  • Model:TD-601XA
  • Package:3000PCS/disk
  • Life:100,000 times
Broken plate side-press tact switch, four-legged patch, lifespan 100,000 times, sink plate type key switch.

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

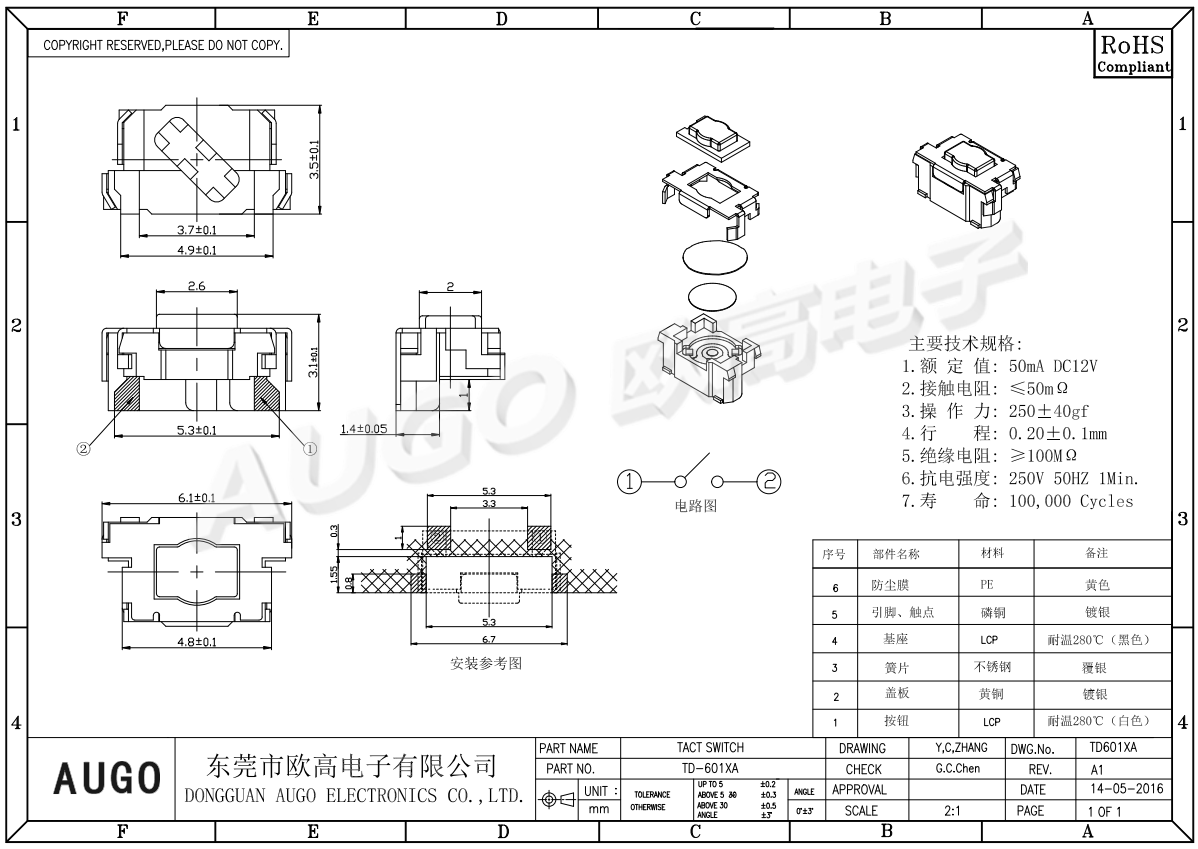

Dimensional drawings

侧按沉板按键开关尺寸图
