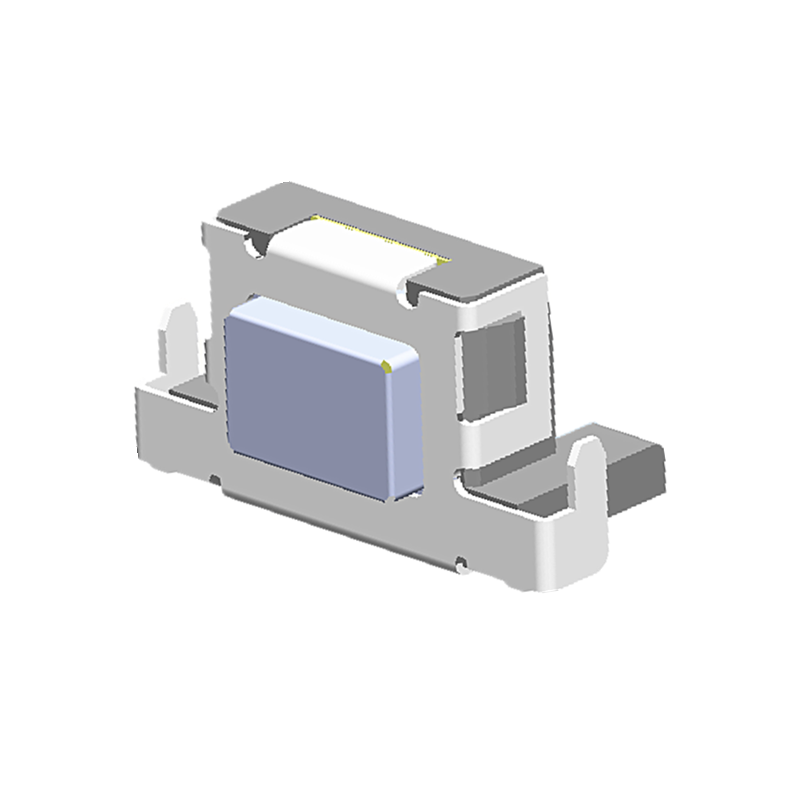

Sink board light touch key switch with fixed bracket sink board 0.55mm

  • Specification:L4.6*W3.0*H2.2
  • Model:TD-1827FS
  • Package:3000PCS/disk
  • Life:100,000 times
Side push tact switch with bracket, two-pin patch, two-pin board, sink plate type, lifespan 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 250gf±40gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

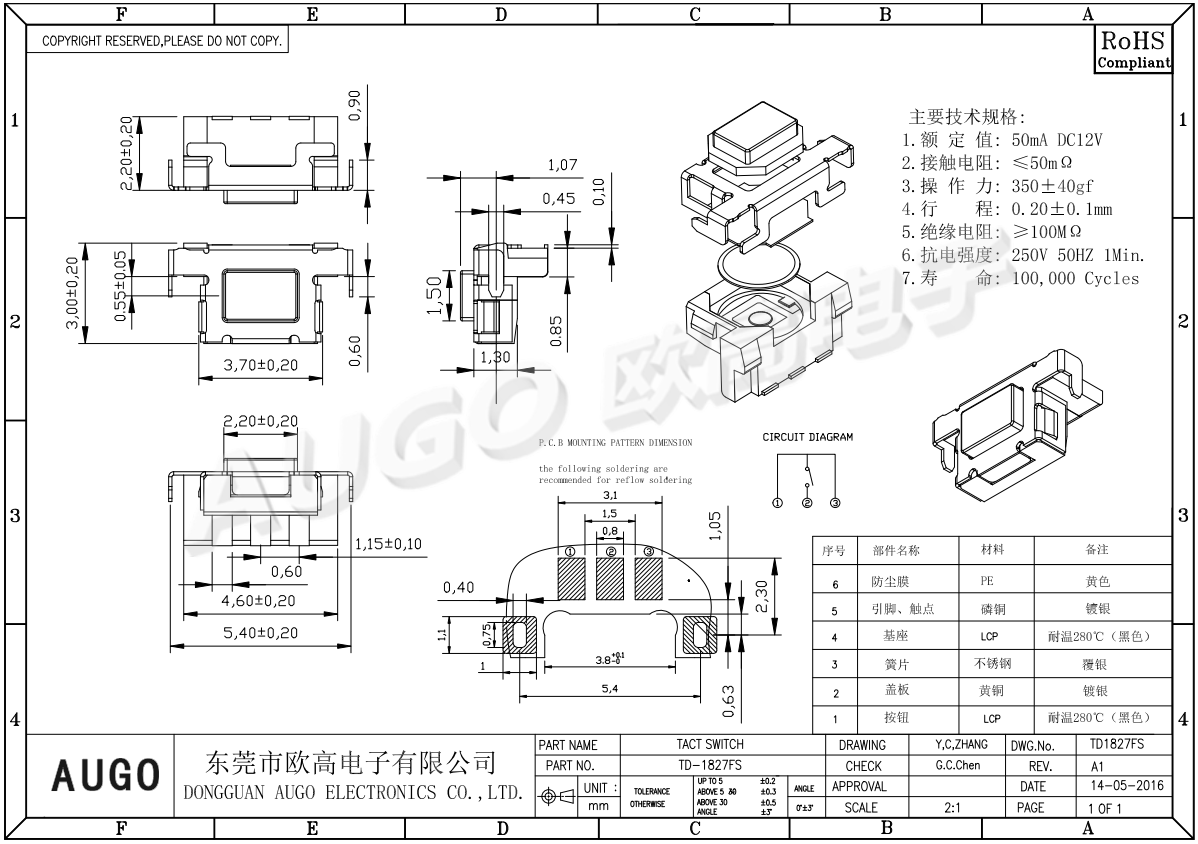

Dimensional drawings

带支架沉板按键开关尺寸图
