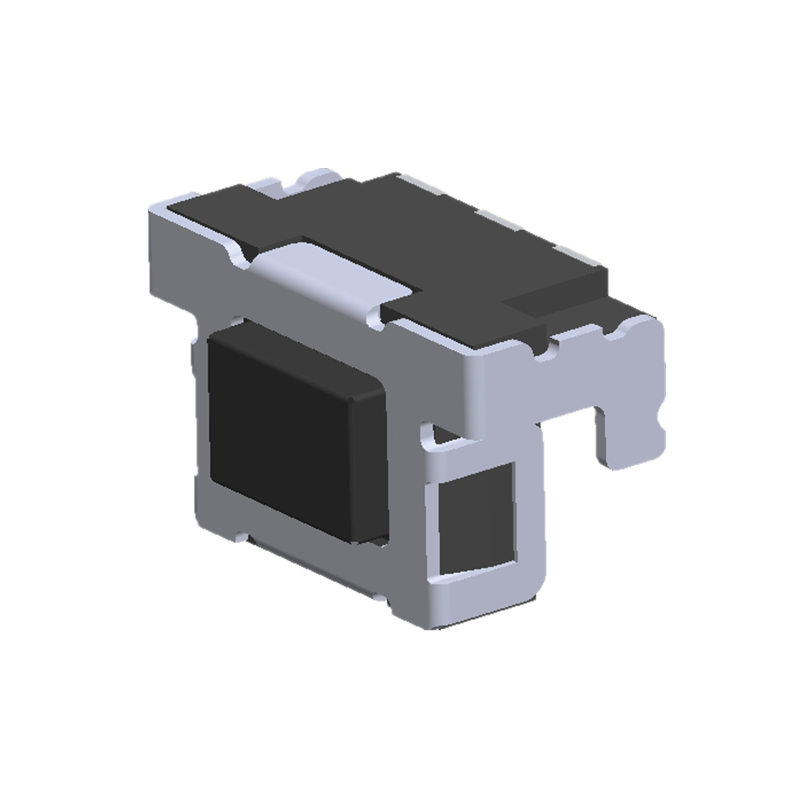

Recording pen ultra-small side button switch with fixed bracket tripod patch

  • Specification:L3.7*W2.95*H2.6
  • Model:TD-1828FS
  • Package:3000PCS/disk
  • Life:100,000 times
Ultra-small sink plate light touch key switch, three-legged patch, with fixed bracket, lifespan 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operating force: 160gf±30gf
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

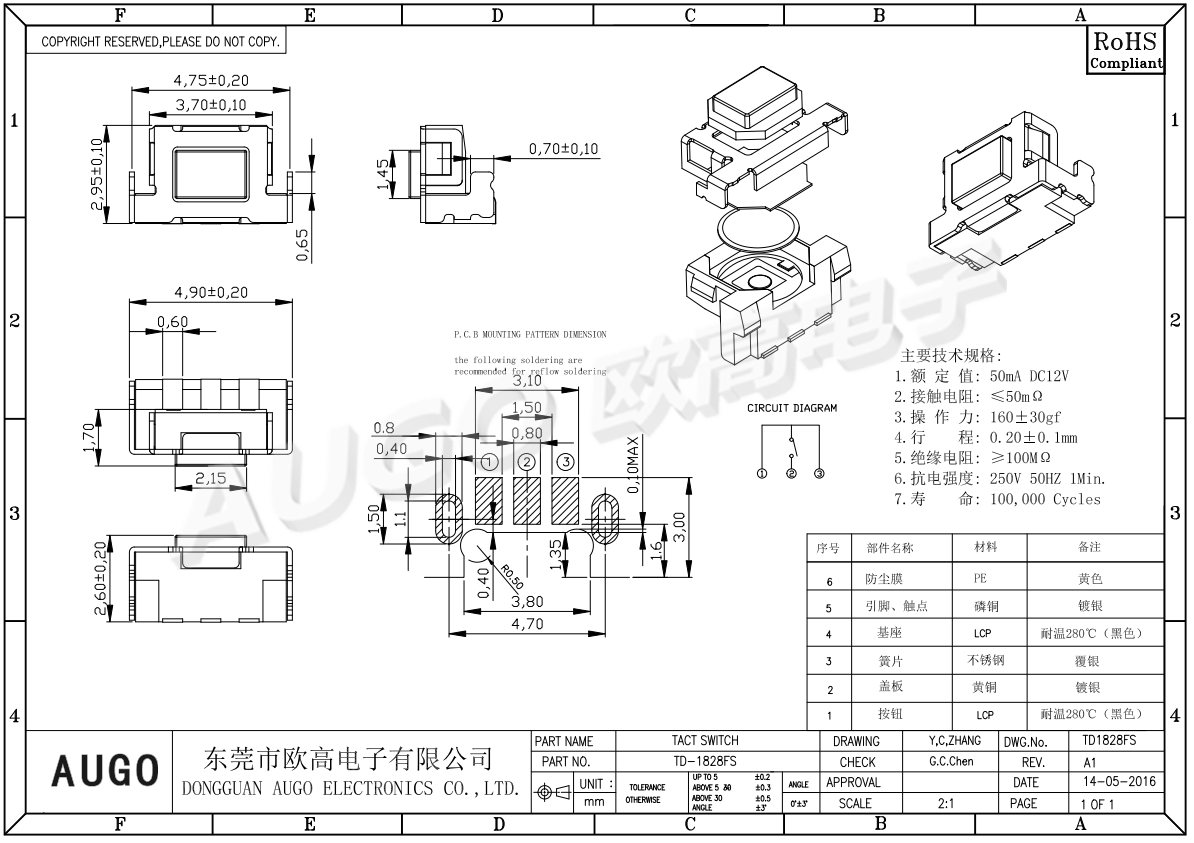

Dimensional drawings

小沉板侧按键开关尺寸图
