AUGO

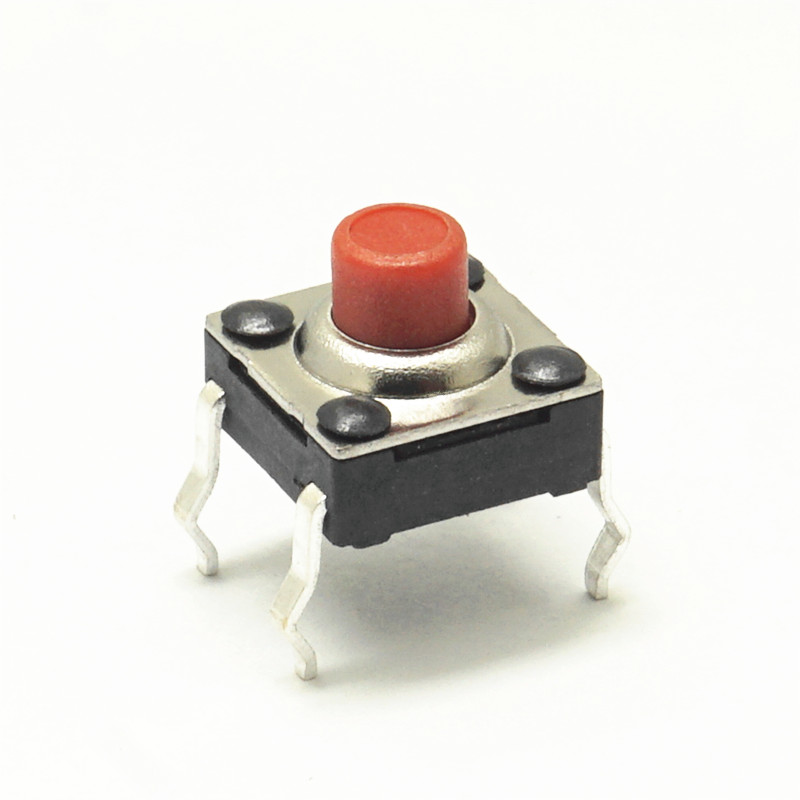

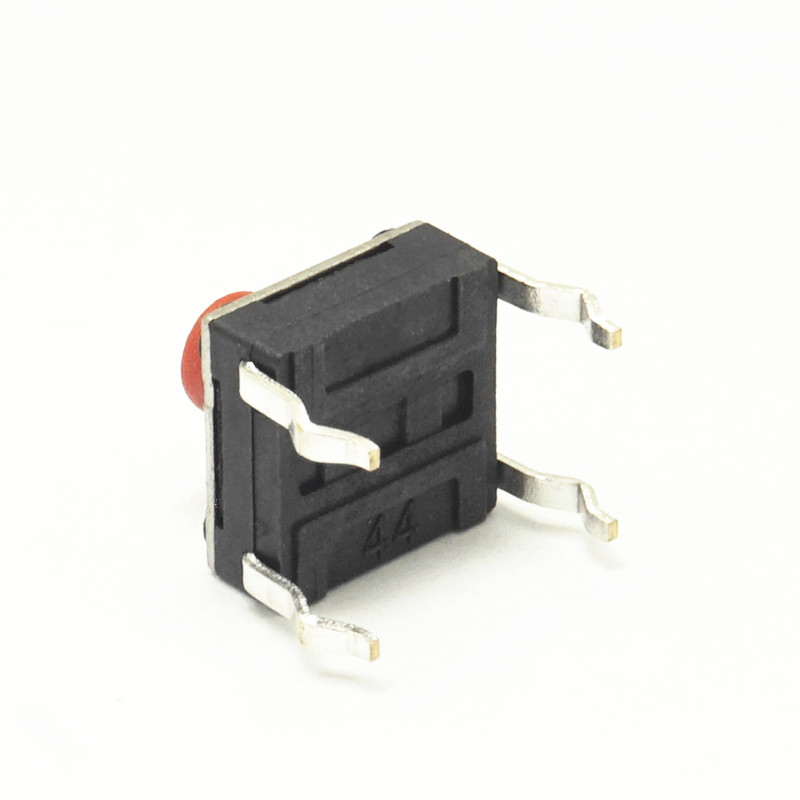

Micro button switch 6*6*5 DIP pin waterproof button switch

  • Specification:6*6*5
  • Model:TD-1110DP
  • Package:1000PCS/bag
  • Life:100,000 times
6*6*5mm, DIP pin, waterproof grade IP67, service life 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

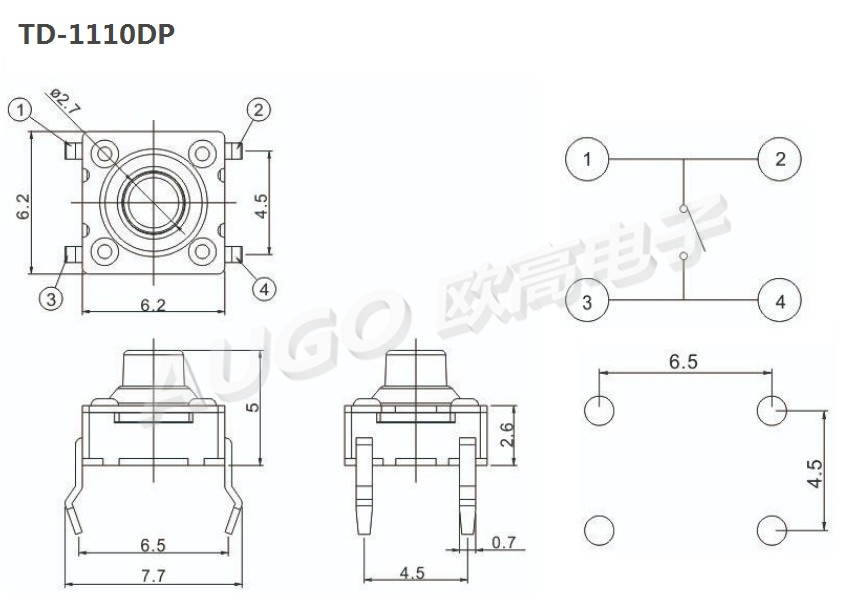

Dimensional drawings

6*6微动按键开关尺寸图
