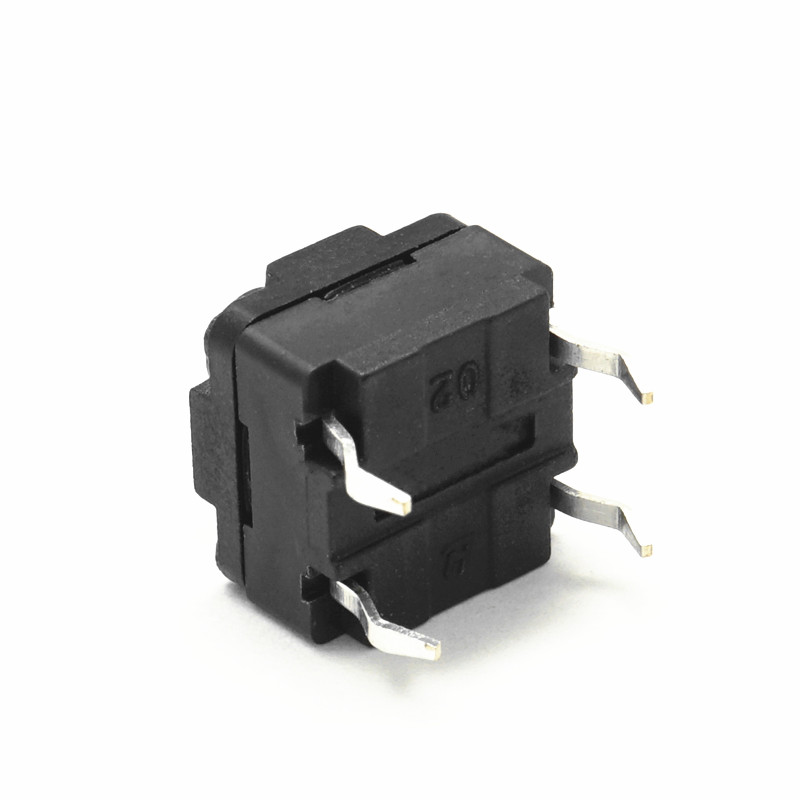

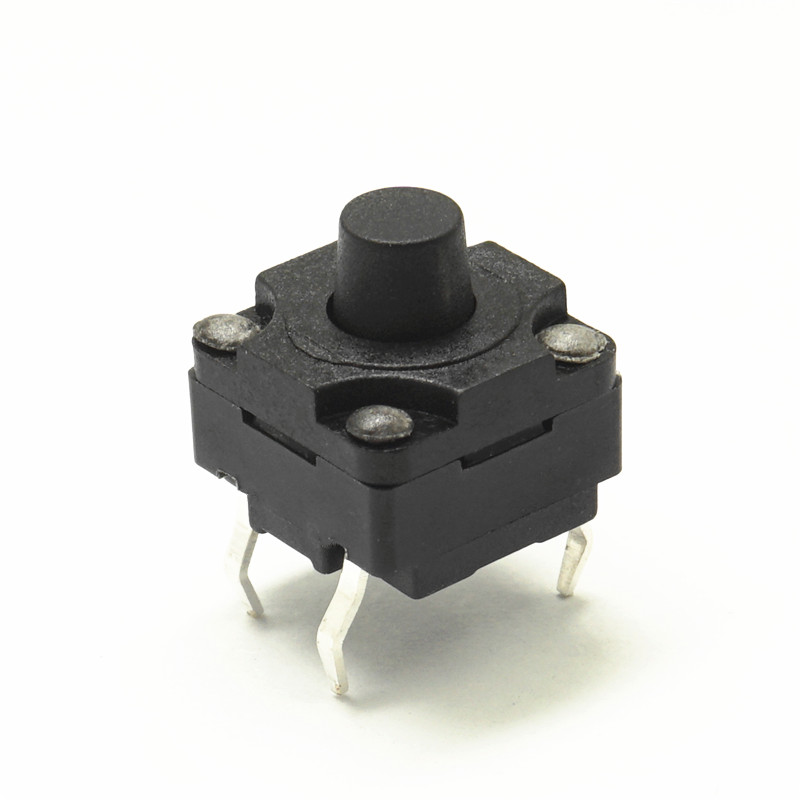

8*8 Waterproof Key Switch Highly Customizable DIP Pins

  • Specification:8*8*H
  • Model:TC-1843DP
  • Package:bagged
  • Life:100,000 times
Touch key switch 8*8mm, highly customizable, DIP pins, waterproof IP67, lifespan 100,000 times

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 100,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

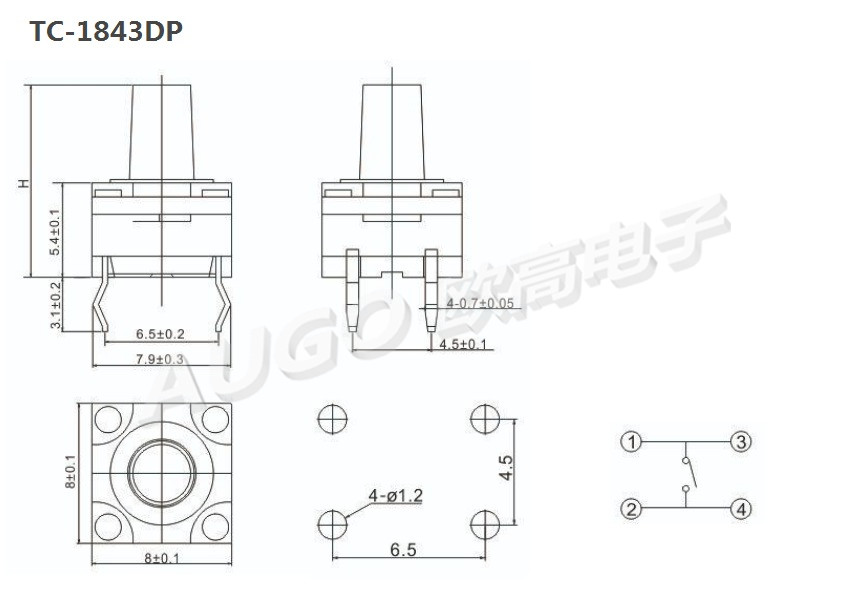

Dimensional drawings

8*8防水按键开关尺寸图
