Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

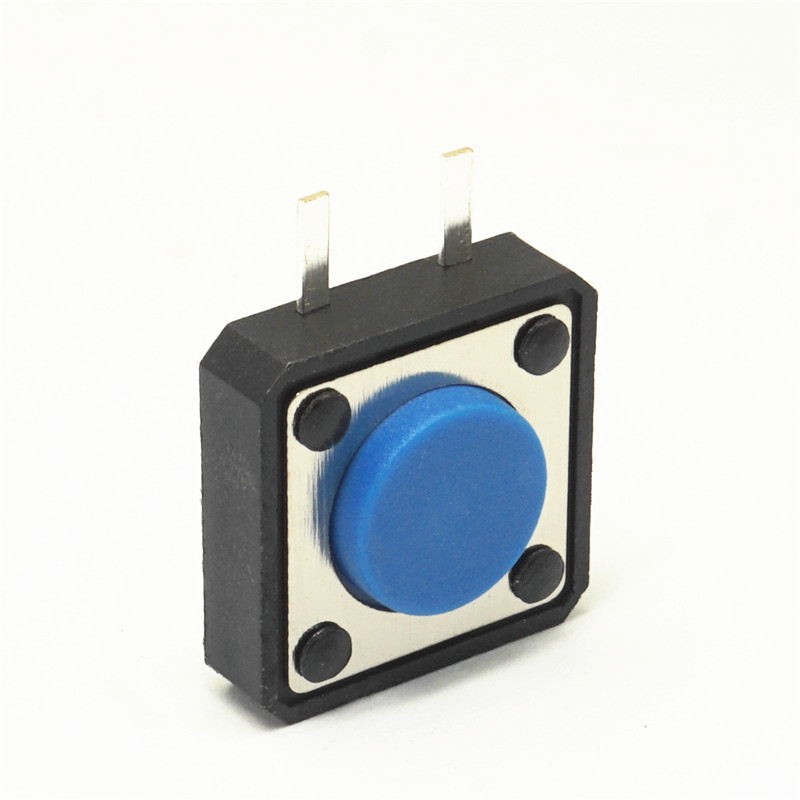

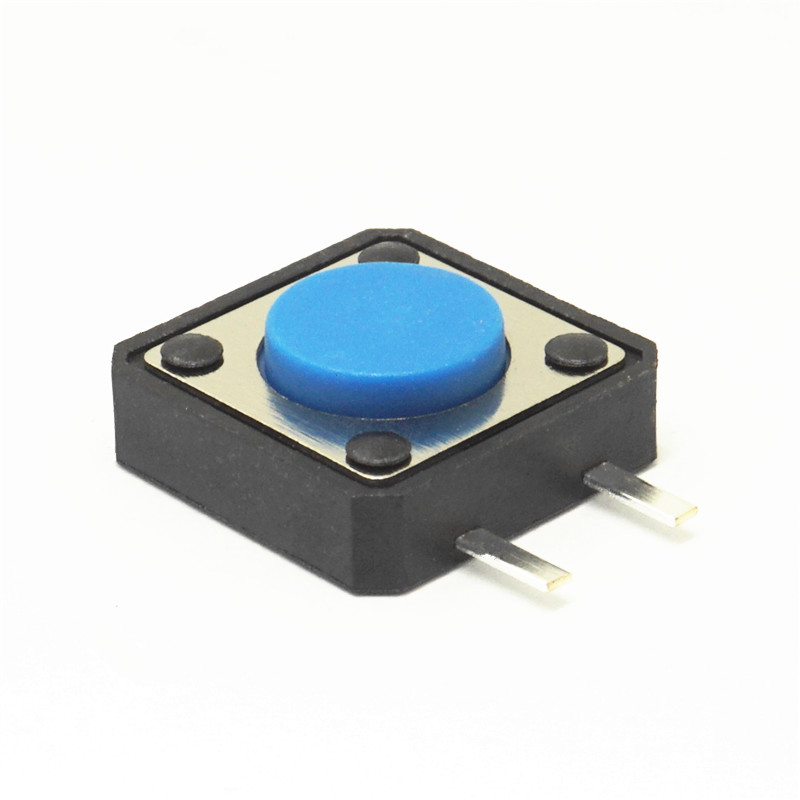

Side two foot tact switch 12*12*H height can be customized

  • Specification:12*12*H
  • Model:TC-12ED
  • Package:bagged
  • Life:50000cycles
12*12 tact switch, side two feet, height can be customized

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 50,000cycles
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

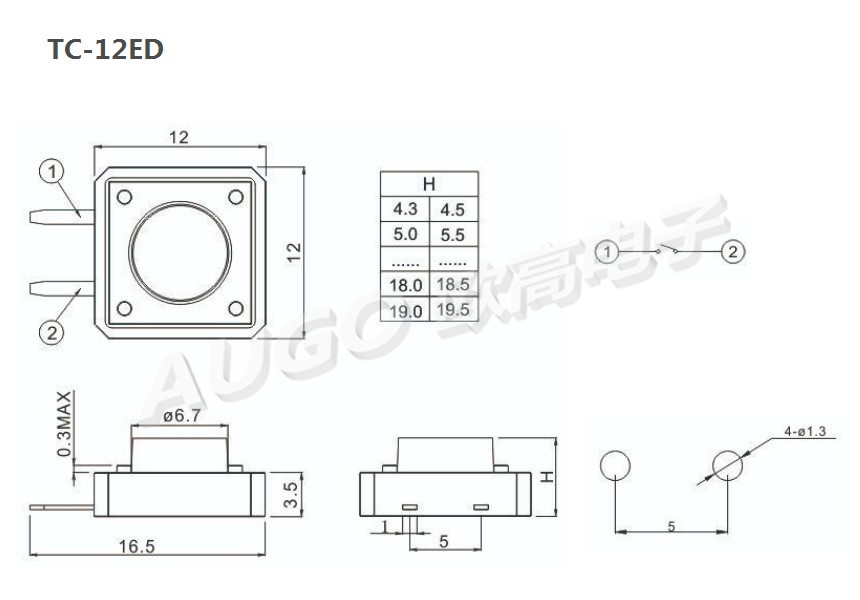

Dimensional drawings

12*12轻触按键开关尺寸图
