Type-C female 14P

Excellent quality, good service, very competitive price.

AUGO

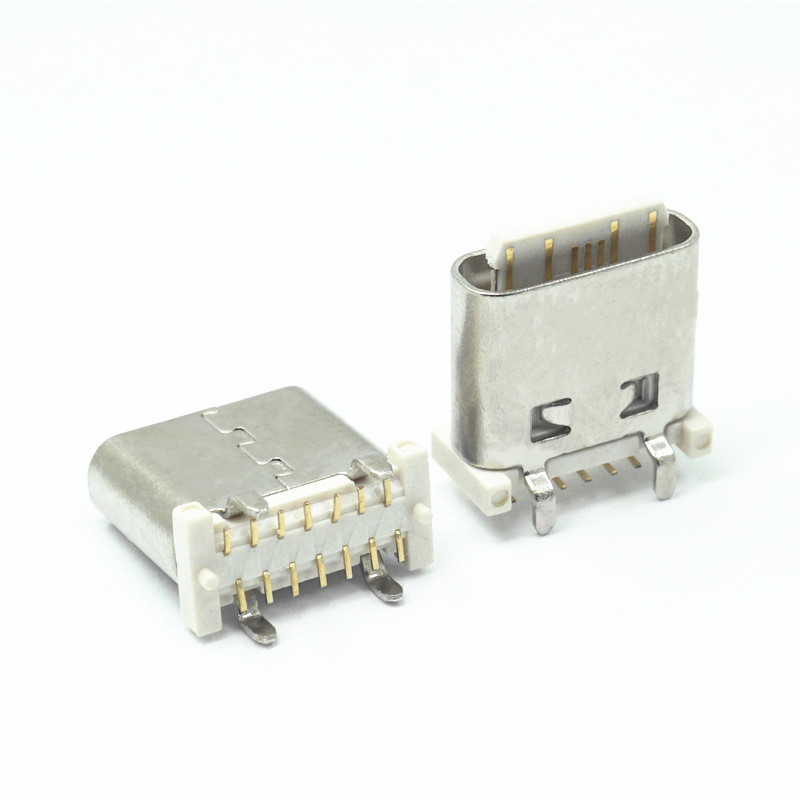

Type-C 14pin female seat with post SMD

  • Specification:L9.0*W4.4*H8.2
  • Model:TYPE-C 14PIN四脚插 带柱SMD H8.2
  • Package:Braiding
  • Life:5000cycles
Type-C 14pin female base four pin strip inserting post SMD H8 2 external leakage

Specification

Technical parameters:
Rated voltage: 30V DC
Rated current: see the product specification for details
Insertion force: 3.57 KGF max
Pull out force: 1.02 KGF min
Contact impedance: 30 m Ω max
Insulation impedance: 100 m Ω min
Withstand voltage: 100V AC at
Holding force: 1.2 KGF min
Ambient temperature: - 30 ℃ ~ 80 ℃

Product features:
1. It has a type / B type / mini / micro male and female seat and other types of interface design
2. Dip / SMT / clamp type / welding type are available for installation
3. Meet the temperature resistance requirements of various welding equipment
Scope of application: digital products, portable devices, computers, communication products, security products, etc

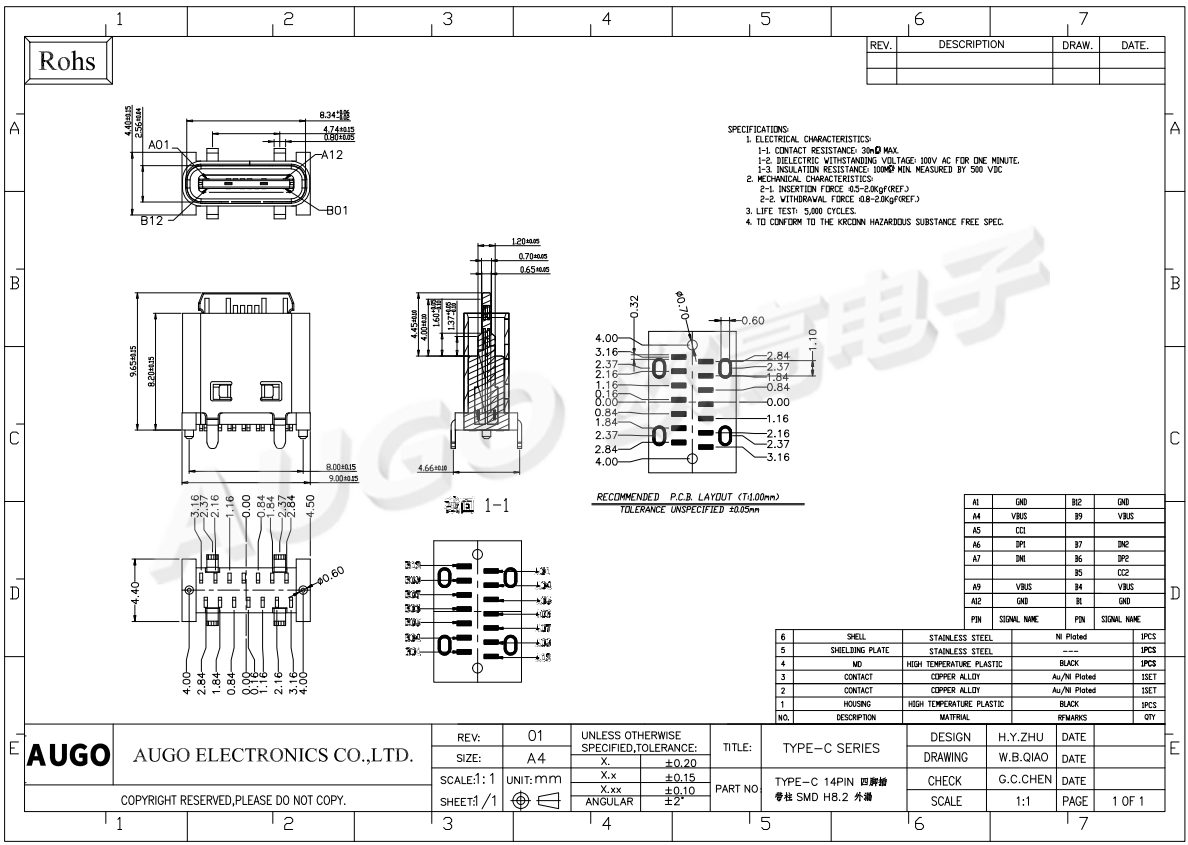

Dimensional drawings

TYPE-C 14PIN立贴母座图纸
