Type-C female 14P

Excellent quality, good service, very competitive price.

AUGO

Type-C side female socket 14pin

  • Specification:L14.75*W3.16*H9.0
  • Model:TYPE-C 14PIN
  • Package:Reel packing
  • Life:10000cycles
TYPE-C collapse 20391;;  input 14PIN L=14.75 H=9.0

Specification

Technical parameters:
Rated voltage: 30V DC
Rated current: see the product specification for details
Insertion force: 3.57 KGF max
Pull out force: 1.02 KGF min
Contact impedance: 30 m Ω max
Insulation impedance: 100 m Ω min
Withstand voltage: 100V AC at
Holding force: 1.2 KGF min
Ambient temperature: - 30 ℃ ~ 80 ℃

Product features:
1. It has a type / B type / mini / micro male and female seat and other types of interface design
2. Dip / SMT / clamp type / welding type are available for installation
3. Meet the temperature resistance requirements of various welding equipment
Scope of application: digital products, portable devices, computers, communication products, security products, etc

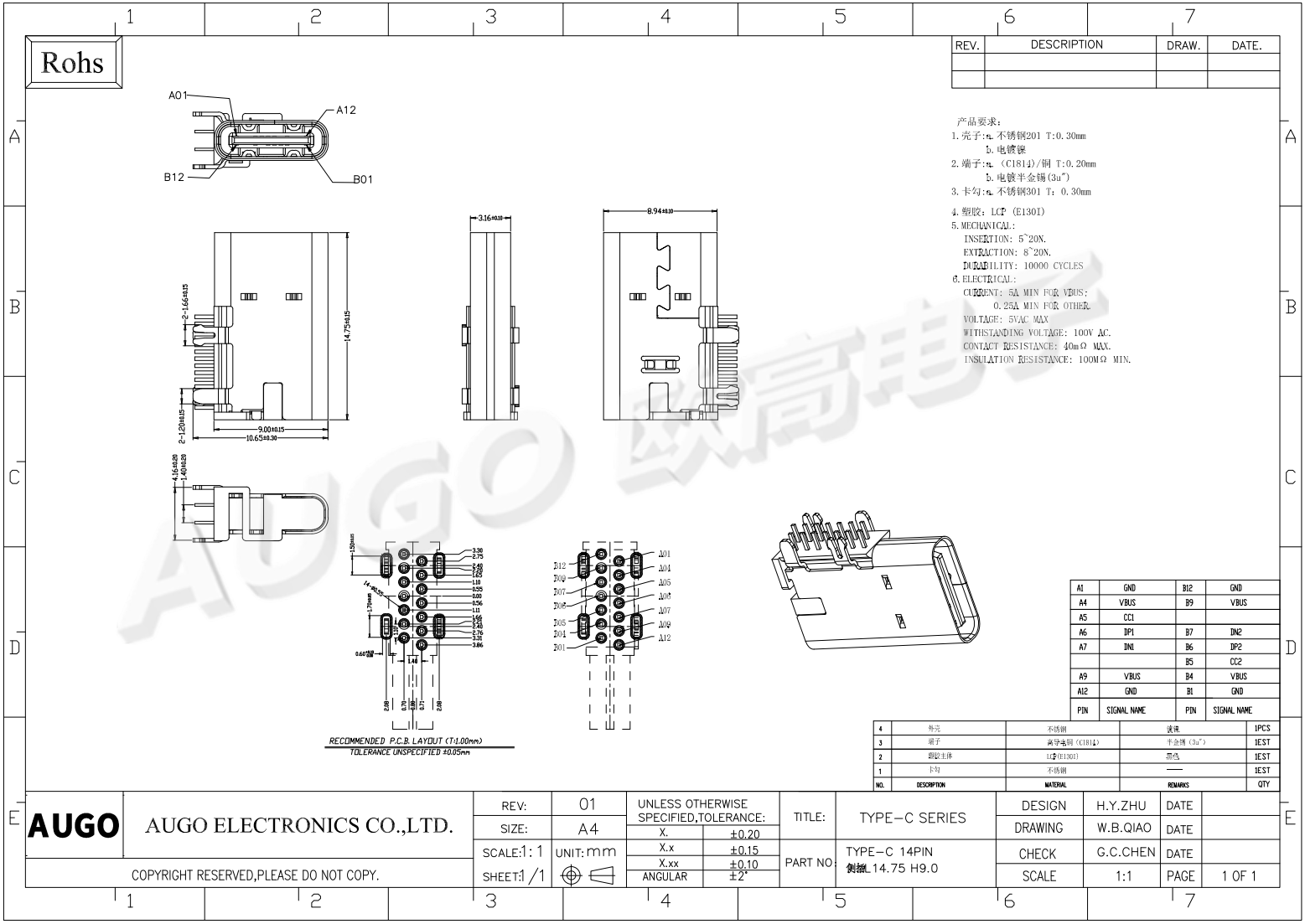

Dimensional drawings

TYPE-C 母14PIN 侧插(普通款)尺寸图
